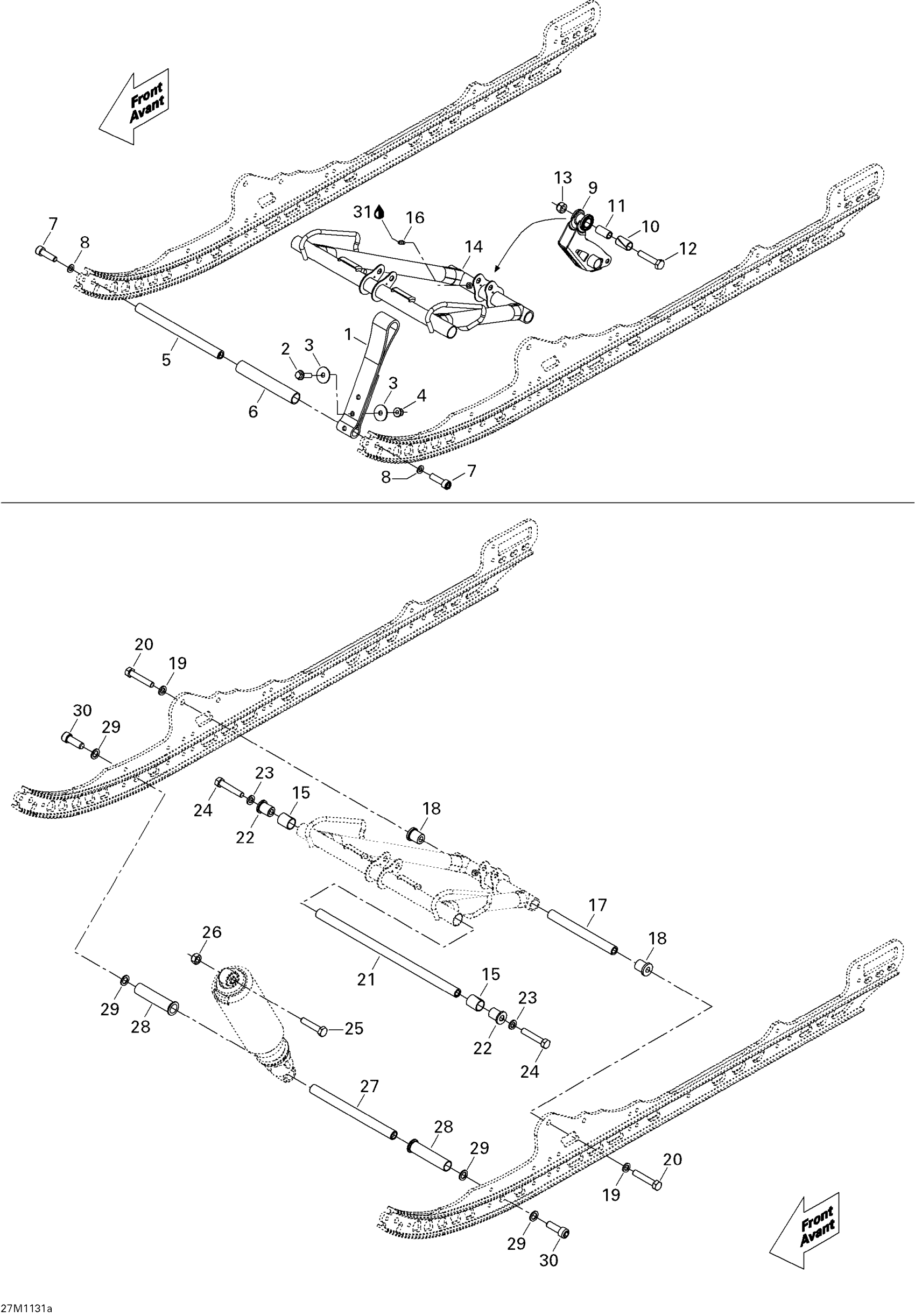

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 08- Front Arm 137" Diagram

#

Description
Price

1

Stopper Strap

503192360

$20.99

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

3

Flat Washer

224081301

$0.88

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Axle Strap

503191260

$30.99

6

Spacer

503196943

$10.99

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

8

Washer

503189564

$0.74

9

Rocker

503192211

$83.99

10

Bushing

503193037

$16.18

11

Bushing | Includes 240d to 240d1

503189282

$4.34

12

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

13

Elastic Locking Nut M10 X 1.5

233601416

$1.69

14

Front Arm | Includes 2000a to 2000b

503191752

$370.99

15

Extended Bushing

503191556

$7.83

16

Grease Fitting

408200700

$3.49

17

Lower Shaft

503191279

$28.99

18

Bushing

503189324

$14.15

19

Washer

503192496

$0.77

20

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

21

Upper Shaft

503191215

$38.99

22

Bushing

503191262

$15.79

23

Washer

503189564

$0.74

24

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

25

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

26

Elastic Locking Nut M10 X 1.5

233601416

$1.69

27

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

28

Center Bushing

503191259

$11.49

29

Washer

503189276

$3.28

30

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

31

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
