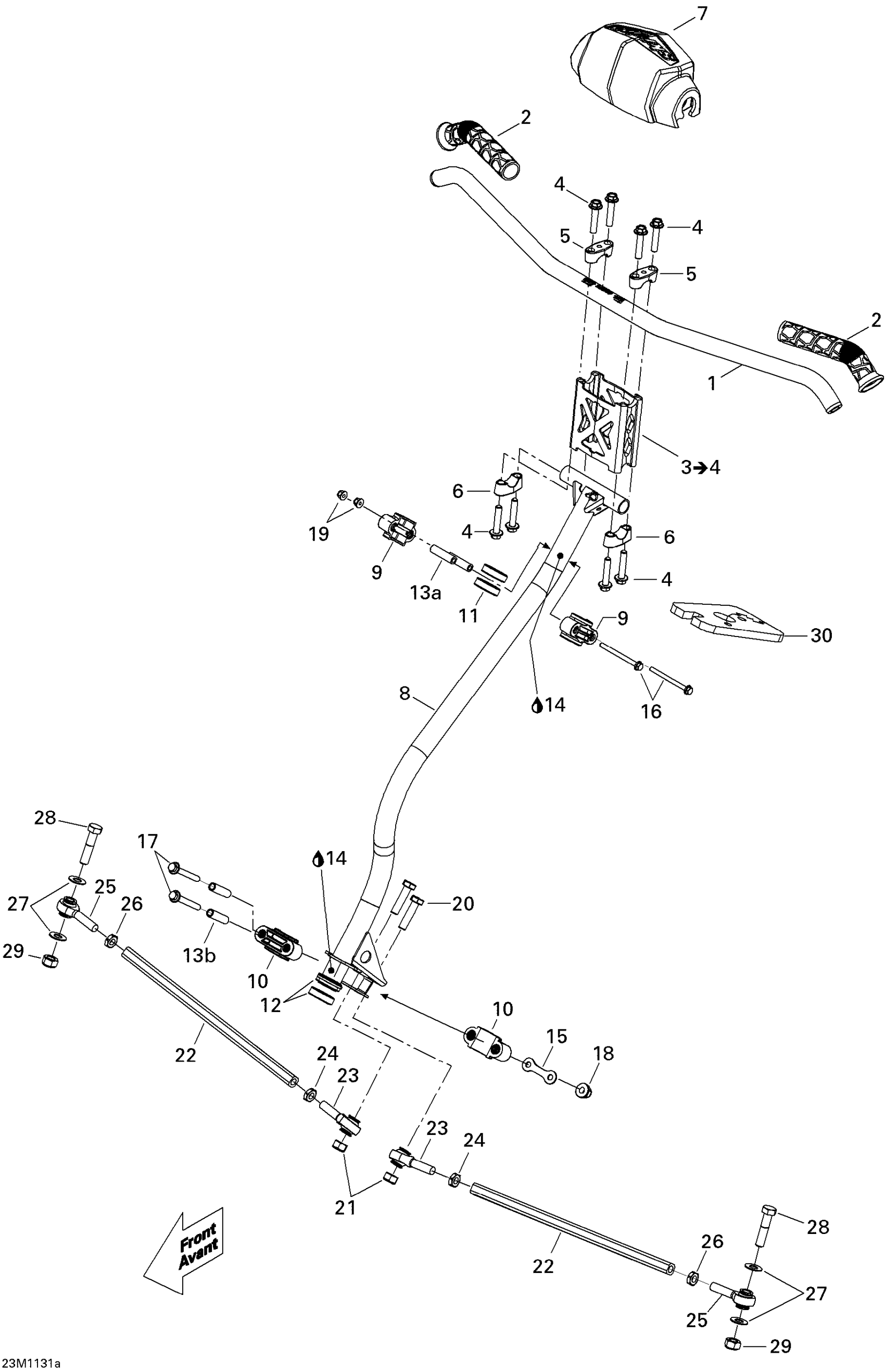

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 Steering STD Diagram

#

Description
Price

1

BLACK HANDLE BAR - Call your local BRP dealership

506152710

Unavailable

2

Grip

506152486

$14.71

3

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

4

Hex. Flange Screw M8 x 40

250000285

$0.77

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Steering Pad

506152192

$54.58

8

Steering Column

506152963

$285.35

9

Upper Half-Housing

506152508

$7.40

10

Lower Half-Housing

506152217

$5.57

11

Upper Anti-Vibration Gasket

506152509

$4.52

12

Lower Vibration Ring

506152518

$4.52

13a

Housing Bushing

506152297

$10.23

13b

Lower Housing Bushing

506152388

$15.26

14

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

15

Stopper Plate

506152389

$10.23

16

Hex. Flange Screw M6 X 70

207667056

$3.61

17

Hex. Flange Screw M8 x 65

207686534

$2.06

18

Hex. Flange Elastic Nut M8

233281414

$1.14

19

Elastic Flange Nut M6 X 1.0

233261416

$1.74

20

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

21

Elastic Stop Nut M10

232500416

$1.56

22

ROD_LINK - Call your local BRP dealership

506152377

Unavailable

23

LH Thread Ball Joint

506152081

$39.97

24

LH Threaded Hex. Jam Nut M10

250100016

$0.72

25

RH Threaded Ball Joint

506152019

$39.97

26

RH Threaded Hex. Jam Nut M10

732610010

$0.72

27

Washer

506152194

$4.42

28

Hex. Screw M10 X 45

207004544

$1.65

29

Elastic Stop Nut M10

232500416

$1.56

30

Bushing

506152521

$13.60
