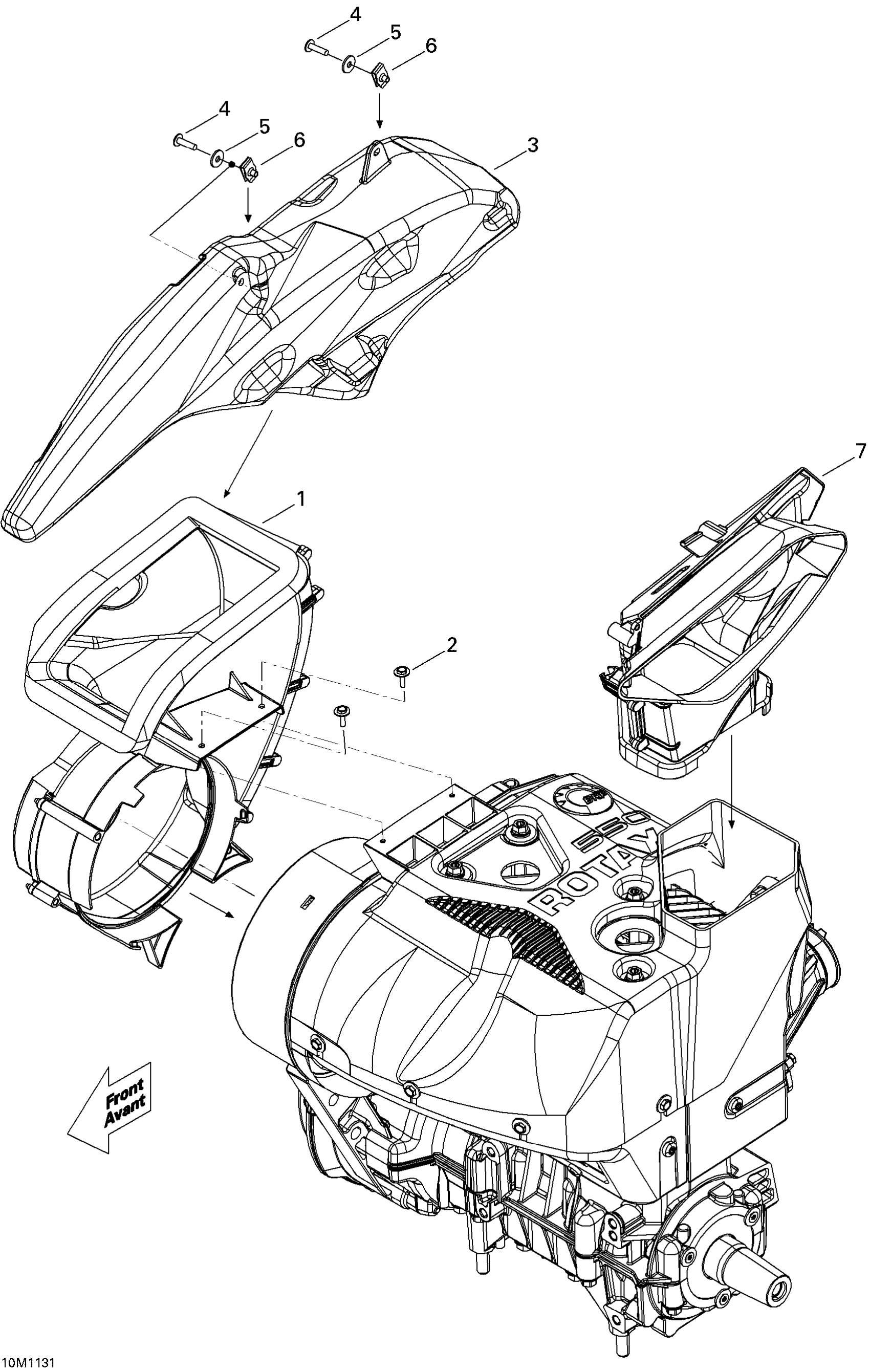

Ski-Doo Tundra STD & Sport & LT 550F XP-LTS, 2011 Cooling System Diagram

#

Description

Price

1

Inlet Duct

509000840

$102.28

2

PLASTITE SCREW TYPE K-40 M4 X 16 - Call your local BRP dealership

250000377

Unavailable

3

Air Chamber Ass'y

509000543

$81.51

4

Torx Screw M5 X 20

250000724

$1.39

5

Washer | DS 650 X

391301600

$0.48

6

Panel Nut M5 X 0.8

250000958

$3.48

7

Outlet Duct Ass.

509000540

$45.35
