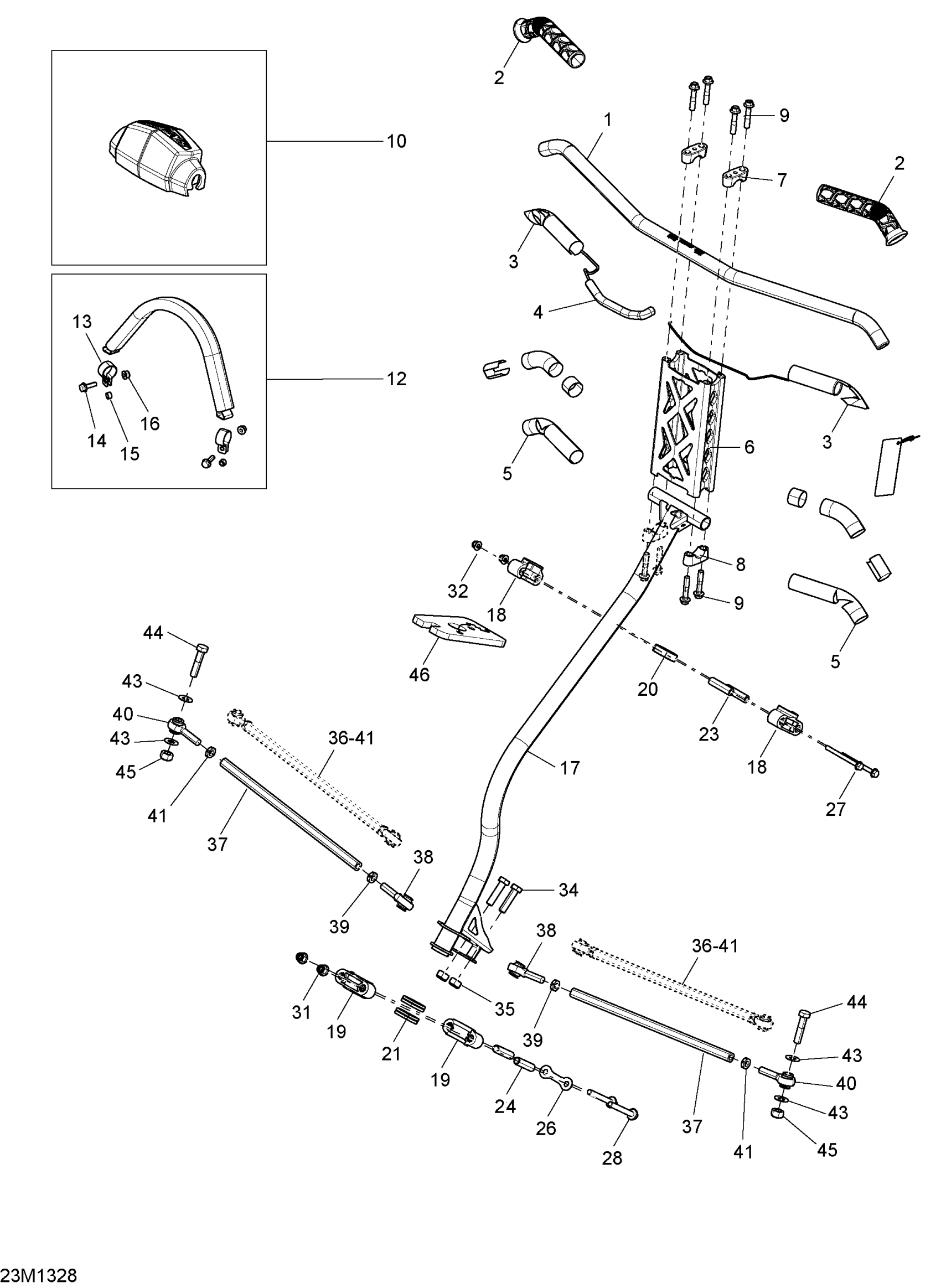

Ski-Doo TUNDRA SPORT & LT 550F XP, 2013 07- Steering Diagram

#

Description
Price

1

BLACK HANDLE BAR - Call your local BRP dealership

506152710

Unavailable

2

Grip

506152486

$16.34

3

Heating Element 20 WATT

506152578

$56.99

3

HEATING ELEMENT 20 WATT - Call your local BRP dealership

506152579

Unavailable

4

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

5

Isolant

506152611

$10.99

6

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

7

Steering Support | Includes 40 to 40a

506152751

$13.99

8

Steering Support | Includes 40 to 40a

506152751

$13.99

9

Hex. Flange Screw M8 X 40

250000352

$3.38

10

Steering Pad

506152192

$58.99

12

Strap Ass'y | Package XMR

506152115

$44.49

13

Black Support Plate

506152536

$9.19

14

Hex. Flange Screw M6 X 20

207662084

$1.69

15

Bushing | Package XMR

506152156

$5.61

16

Hex. Flange Elastic Nut M6

233261494

$1.58

17

Steering Column

506152963

$309.99

18

Upper Half-Housing

506152508

$9.23

19

Lower Half-Housing

506152217

$7.62

20

Upper Anti-Vibration Gasket

506152509

$4.79

21

Lower Vibration Ring

506152518

$4.79

23

Housing Bushing

506152297

$12.99

24

Lower Housing Bushing

506152388

$17.39

26

Stopper Plate

506152389

$12.99

27

Hex. Flange Screw M6 X 70

207667056

$4.44

28

Hex. Flange Screw M8 x 65

207686534

$2.11

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

Elastic Flange Nut M6 X 1.0

233261416

$2.11

34

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

35

Elastic Stop Nut M10

232500416

$1.90

36

Not Available As Spare Part - Friction Washer

Unavailable

37

ROD_LINK - Call your local BRP dealership

506152377

Unavailable

38

LH Thread Ball Joint

506152081

$41.49

39

LH Threaded Hex. Jam Nut M10

250100016

$0.74

40

RH Threaded Ball Joint

506152019

$41.49

41

RH Threaded Hex. Jam Nut M10

732610010

$0.74

43

Washer

506152582

$4.55

44

Hex. Screw M10 X 45

207004544

$1.69

45

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

46

Bushing

506152521

$15.79
