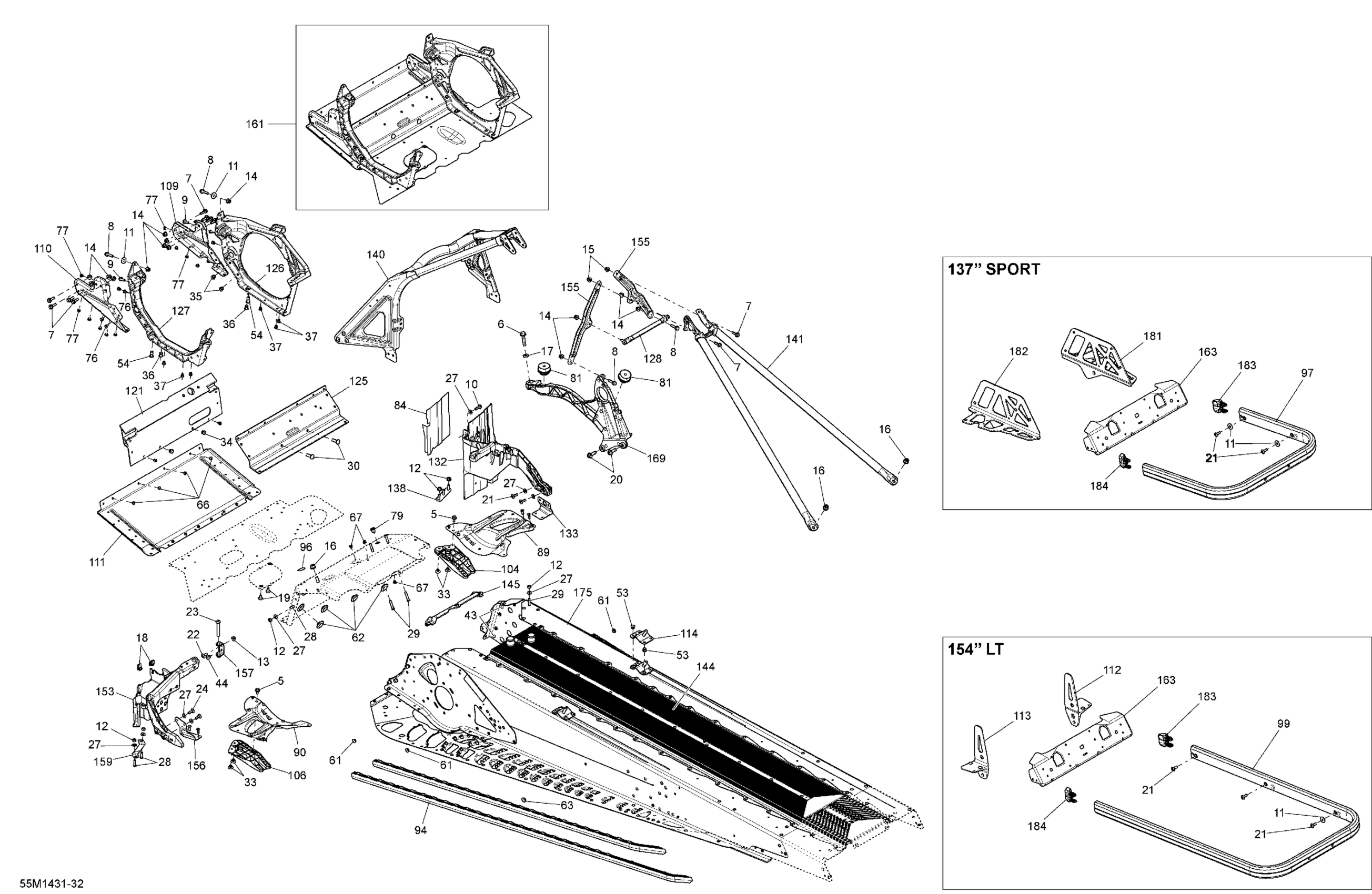

Ski-Doo TUNDRA SPORT 600ACE XU, 2014 Frame And Components Diagram

#

Description
Price

5

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

6

Hex. Flange Screw, Scotch Grip

207584034

$2.00

7

Hex. Flange Screw M6 X 20

207662044

$1.91

8

Hex. Flange Screw M6 X 25

207662544

$0.61

9

Hex. Flange Screw M6 X 16

210261650

$1.40

10

Hex. Flange Screw M6 X 20

210262040

$2.00

11

Flat Washer

224061201

$1.27

12

Elastic Stop Nut M6

232561414

$1.78

13

Hex. Flange Nut M6

233061414

$1.54

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

15

Elastic Flange Nut M6 X 1.0

233261416

$2.00

16

Hex. Flange Elastic Nut M8

233281414

$1.31

17

Conical Spring Washer M8

234281474

$1.43

18

Panel Nut M5 X 0.8

250000958

$4.00

19

Torx Truss Screw M6 X 12

250000767

$1.91

20

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.00

21

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

22

Tork Screw M6 X 16

250000534

$2.00

23

Torx Screw M8 X 55

250000535

$3.01

24

Tork Screw M6 X 18

250000536

$2.00

27

Flat Washer

250200039

$0.70

28

Clinch Stud M6 X 20

250300027

$1.87

29

Clinch Stud M6 X 30

250300031

$1.87

30

Clinch Stud

250300038

$3.88

33

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

34

Hemlock Rivet, 6.5 mm

293150119

$3.88

36

Hemlock Rivet 6.5 mm

293150120

$7.01

37

Stavex Rivet

293150144

$0.75

43

Henrob Rivet

293150146

$1.87

44

Ornit Rivet 6,5 X 14.5

293150266

$1.88

53

Hemlock Rivet, 6.4 mm

293150174

$6.24

54

Monobolt Rivet 6.4

293150182

$2.82

61

Full Moon Dart 8 mm

293730041

$2.06

62

Black, Plug

293730052

$6.18

63

Full Moon Dart 10 mm

293730059

$4.28

66

Pop Rivet 3/16"

390402200

$0.30

67

Pop Rivet 3/16"

390402400

$0.28

76

Avex Rivet

390909100

$0.28

77

Avex Rivet

390909200

$0.28

79

Insert

293450275

$11.36

81

Vibration Damper

512061516

$55.94

84

Heat Shield

514054755

$6.30

89

RH Reinforcement

518324874

$24.60

90

LH Reinforcement

518324875

$24.60

94

RH ROLLER - Call your local BRP dealership

518325377

Unavailable

94

LH Roller

518325378

$76.99

96

Adhesive Patch

518325560

$4.21

97

Clear Rear Bumper | Sport

518325577

$106.69

99

Not Available As Spare Parts

XXX

Unavailable

104

RH Deflector, Black Polypropylene

518325782

$11.42

106

LH Deflector, Black Polypropylene

518325783

$11.42

109

RH Front Member

518325949

$17.88

110

LH Front Member

518325950

$17.13

111

Front Bottom Plate

518325951

$29.07

112

Not Available As Spare Parts

XXX

Unavailable

113

Not Available As Spare Parts

XXX

Unavailable

114

RH Rear Base

518325973

$17.88

114

LH Rear Base | Includes 10v to 10x

518325974

$17.88

121

Engine Support

518326140

$112.66

125

Front Member

518326198

$58.18

126

RH Side Member

518326328

$252.21

127

LH Side Member

518326330

$252.21

128

Center Column Support

518326355

$20.12

132

Battery Support

518326472

$39.52

133

RH Support | LT

518326482

Unavailable

138

Retaining Plate | Includes 40 to 40a

518326550

Unavailable

140

Front Member, S Module

518326557

$326.84

141

Rear Member

518326559

$237.28

144

Rear Radiator Ass'y, 137" | SPORT

518326641

$679.07

145

Seal

518326656

$8.18

153

LH Stirup

518326820

$35.04

155

Upper Column Support

518326848

$12.67

156

Support

518326960

$9.42

157

U-Attach

518326961

$8.19

159

Attach | Includes 10n to 10p

518326986

$9.42

161

E-Module | LT

518327006

$687.28

163

Rear Cap

518327105

$20.12

169

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

175

FRAME TUNDRA 137 ACE - Call your local BRP dealership | SPORT

415130262

Unavailable

181

RH Bracket | Sport

518328787

$73.10

182

LH Bracket | Sport

518328788

$71.61

183

Full Moon RH Cap

520000711

$8.34

184

Full Moon LH Cap

520000712

$8.34
