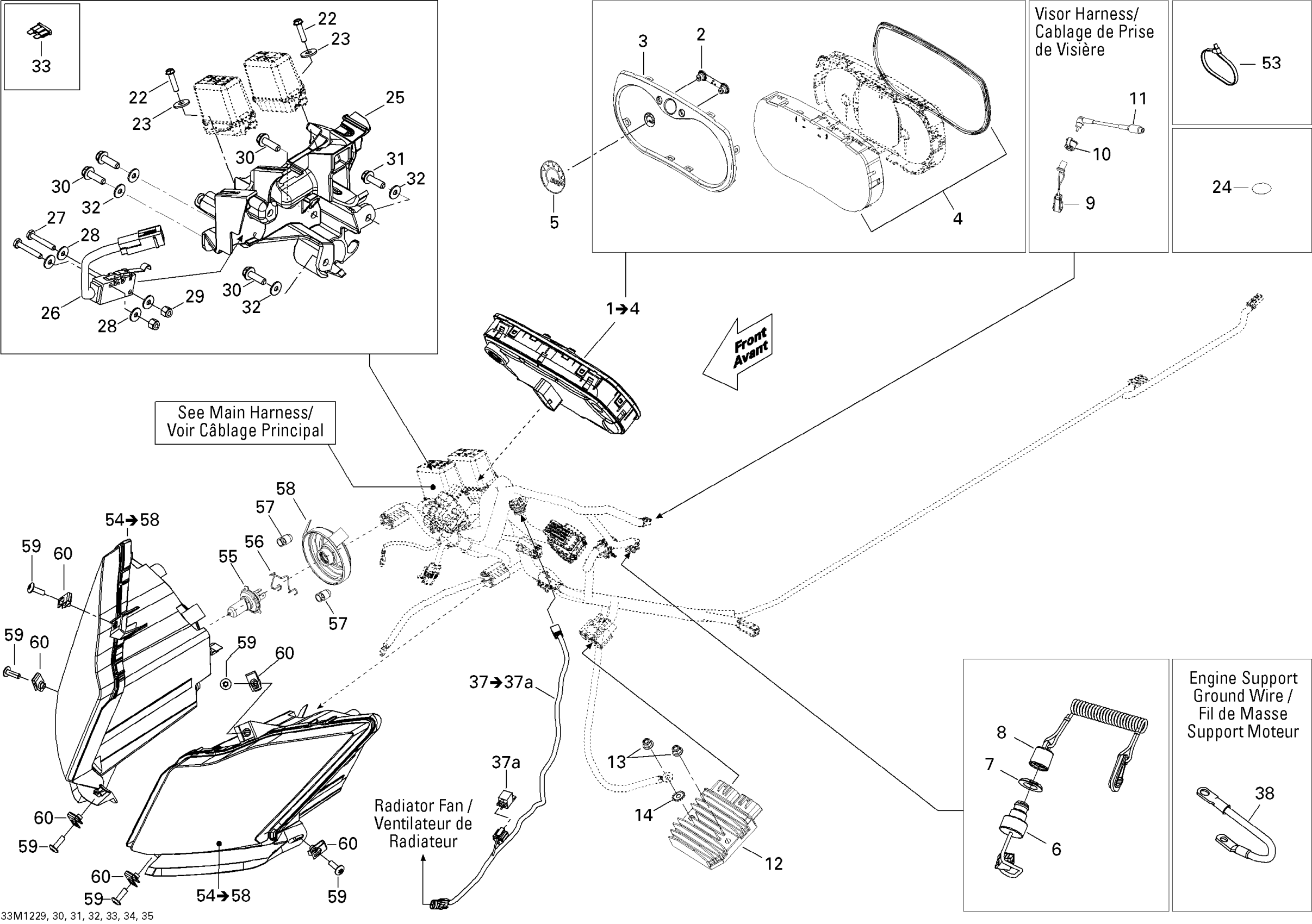

Ski-Doo Tundra Sport 600ACE LFF, 2012 10- Electrical System Diagram

#

Description
Price

1

Indicator

515177911

$549.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

DESS Switch

515177249

$114.99

7

Safety Nut (DESS Switch)

278002963

$3.28

8

DESS

515178284

$84.99

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

External Serrated Lock Washer 6 mm

234461608

$1.15

22

Hex. Screw 10-14 X 7/8”

211000023

$3.59

23

Flat Washer M6, Stainless

234062600

$0.77

24

Adhesive Patch

518325560

$4.69

25

PLATE - Call your local BRP dealership

515176866

Unavailable

26

SWITCH ASS'Y - Call your local BRP dealership

515176881

Unavailable

27

Hex Screw M3 X 20

207132044

$2.11

28

Flat Washer M3, Stainless

234032600

$0.55

29

Elastic Stop Nut M3

232531423

$0.55

30

Hex. Flange Screw M6 X 20

210262040

$2.11

31

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

32

Flat Washer

250200039

$0.74

33

Little Fuse, 5 Amperes

710000742

$8.79

33

Little Fuse, 10 Amperes

710000744

$8.79

33

Little Fuse, 15 Ampere

710000745

$8.49

33

Little Fuse, 20 Amperes

710000746

$8.49

33

Little Fuse, 30 Amperes

710000747

$8.49

37

Fan Harness

515177646

$54.99

37a

Relay | DS 650 X

710010053

$23.49

38

Ground Wire

515177014

$17.99

53

Tie-Rap 180 mm

414115200

$0.11

53

Tie Wrap 368 mm

293750008

$1.04

53

Tie Wrap 142 mm

293750002

$1.25

53

Tie Wrap 94 mm | 4X4

293750001

$1.03

53

Tie-Rap 173 mm

293750009

$1.04

54

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

54

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

55

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

56

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

57

Cap

515176498

$12.99

58

Rubber Cap Protector

219800280

$19.49

59

Torx Screw M6 X 20

250000722

$1.68

60

Panel Nut M6 X 1.0

250100198

$2.11
