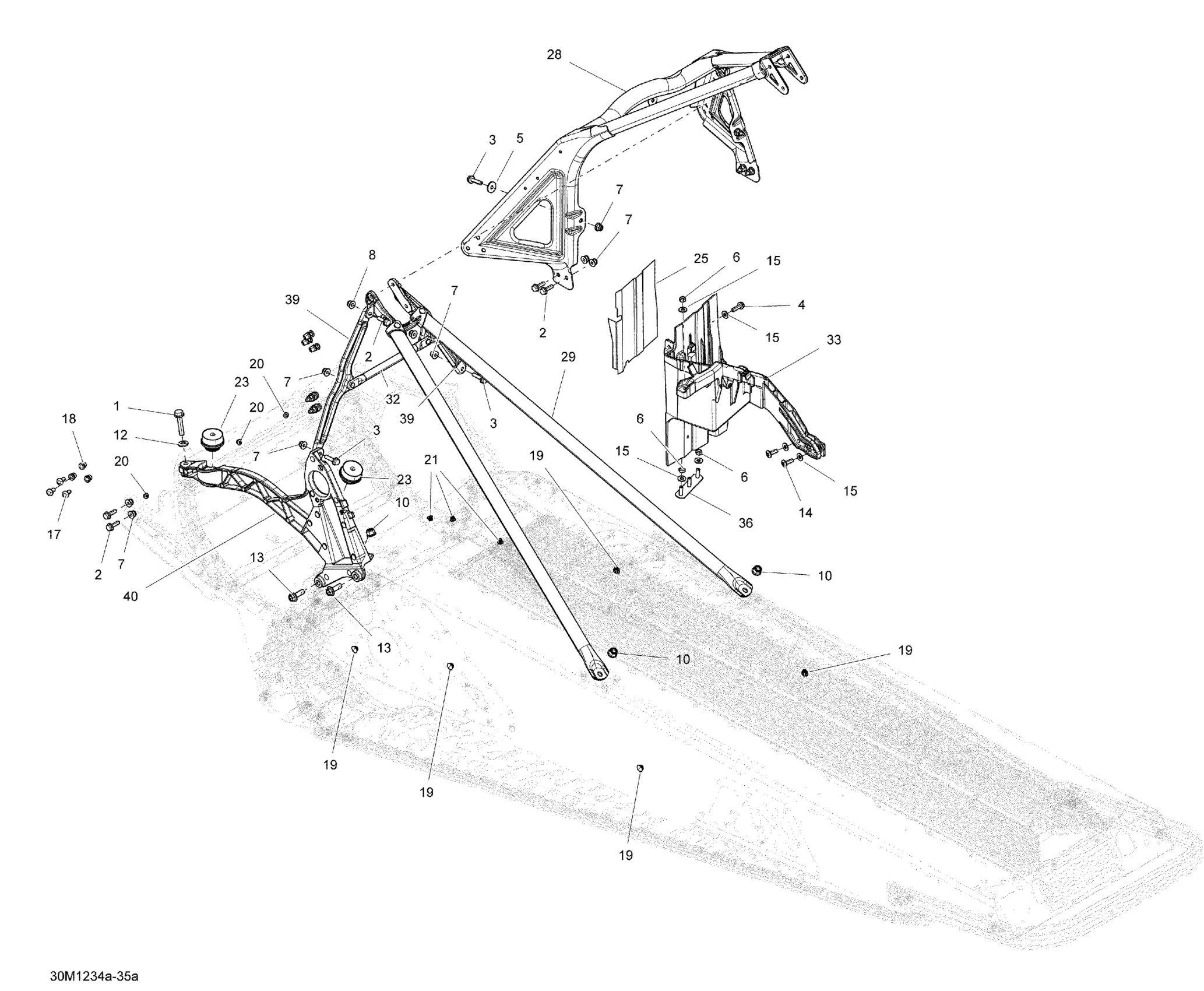

Ski-Doo Tundra Sport 600ACE LFF, 2012 Frame 137" Common Parts Diagram

#

Description
Price

1

Hex. Flange Screw, Scotch Grip

207584034

$2.06

2

Hex. Flange Screw M6 X 20

207662044

$1.66

3

Hex. Flange Screw M6 X 25

207662544

$0.53

4

Hex. Flange Screw M6 X 20

210262040

$2.06

5

Flat Washer

224061201

$1.11

6

Elastic Stop Nut M6

232561414

$1.55

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Elastic Flange Nut M6 X 1.0

233261416

$1.74

10

Hex. Flange Elastic Nut M8

233281414

$1.14

12

Conical Spring Washer M8

234281474

$1.25

13

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

14

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

15

Flat Washer

250200039

$0.72

17

Hex. Flange Screw M6 X 20

207662044

$1.66

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Full Moon Dart 8 mm

293730041

$2.12

20

Pop Rivet 3/16"

390402200

$0.26

21

Pop Rivet 3/16"

390402400

$0.25

23

Vibration Damper

512061516

$57.66

25

Heat Shield

514054755

$6.49

28

Front Member, S Module

518326557

$336.89

29

Rear Member

518326559

$244.58

32

Center Column Support

518326355

$20.74

33

Battery Support

518326472

$40.74

36

Retaining Plate | Includes 40 to 40a

518326550

Unavailable

39

Upper Column Support

518326848

$13.06

40

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$259.97
