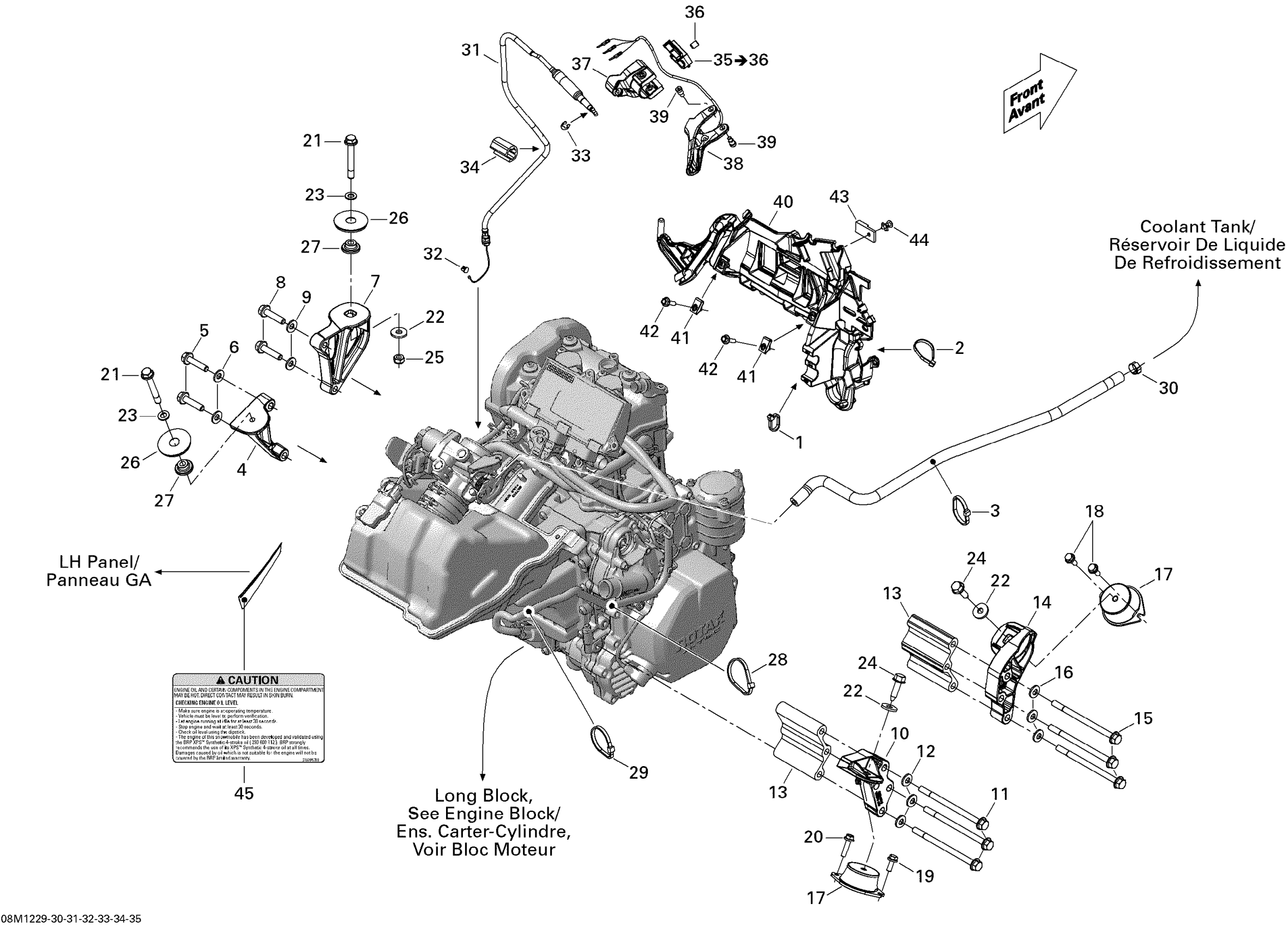

Ski-Doo Tundra Sport 600ACE LFF, 2012 01- Engine Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.11

2

Tie-Rap 180 mm

414115200

$0.11

3

Tie-Rap 180 mm

414115200

$0.11

4

Rear Support PTO

512061139

$24.99

5

Hex. Flange Screw M8 X 35

250000986

$2.11

6

Conical Spring Washer M8

234281474

$1.48

7

Front Support PTO

512061140

$20.99

8

Hex. Flange Screw M8 X 35

250000986

$2.11

9

Conical Spring Washer M8

234281474

$1.48

10

Rear Support MAG

512061142

$28.99

11

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$13.16

12

Conical Spring Washer M8

234281474

$1.48

13

Shim

512060505

$43.49

14

Front Support, MAG

512060663

$19.99

15

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$13.16

16

Conical Spring Washer M8

234281474

$1.48

17

Rubber Mount

512060729

$65.99

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

19

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

20

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.11

21

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

22

Yellow, Washer

503183200

$3.19

23

Flat Washer With Teflon 8 mm

250200008

$3.80

24

Cone Screw, M8 X 30

250000257

$1.89

25

Hex. Elastic Stop Nut M8

232581414

$0.56

26

Stopper

512061203

$14.22

27

Spacer

512060285

$19.99

28

Tie-Rap 180 mm

414115200

$0.11

29

Tie-Rap 180 mm

414115200

$0.11

30

Oetiker Clamp

293650046

$2.89

31

Throttle Cable

512060607

$79.49

32

Cable Guide

707000434

$11.60

33

Circlip

414274500

$0.90

34

Protector

512060313

$10.33

35

Upper Housing Ass'y

512060198

Unavailable

36

Socket Set Screw M8 X 10

414440800

$4.12

37

Lower Housing

512060860

$17.53

38

Throttle Handle Ass'y

512061252

$124.99

39

Flange Screw

732601143

$4.12

40

MODULE SUPPORT - Call your local BRP dealership

512060509

Unavailable

41

Panel Nut M5 X 0.8

250000958

$4.23

42

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

43

Clip

270000141

$11.49

44

Avdel Rivet

293150027

$2.49

45

Caution Decal, Oil Level

516005521

Unavailable
