Description

Price

1

Socket Screw M8 X 25

205082554

$2.11

3

Socket Set Screw M6 X 8

206260844

$1.48

4

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

7

Hex. Flange Screw M5 X 25

207652544

$0.50

8

Hex. Flange Screw M6 X 25

207662556

$4.44

9

Hex. Flange Screw M6 X 70

207667056

$4.44

11

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

12

Hex. Flange Screw M8 X 40

207684044

$1.48

13

Phillips Screw M6 X 25

208562531

$2.11

14

Hex Screw M10 x 100

230100054

$6.45

16

Elastic Stop Nut M6

232561434

$1.99

17

Hex. Elastic Stop Nut M8

232581414

$0.56

19

Flange Elastic Nut M10

233201466

$3.17

20

Flange Elastic Nut M5

233251434

$2.00

21

Hex. Flange Elastic Nut M6

233261466

$2.00

22

Elastic Flange Nut M8

233281466

$1.01

23

Elastic Locking Nut M10 X 1.5

233601416

$1.69

24

Elastic Locking Nut M10

233601466

$2.11

26

Conical Spring Washer 10 mm

234201474

$1.69

27

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

28

Hex. Screw S.Grip M10 X 55

250000605

$8.11

29

Hex Screw M6 X 25

250000619

$1.01

30

Flat Washer 8 mm

250200128

$4.44

31

Washer

250200140

$1.01

32

Flat Washer

250200143

$3.17

34

Pop Rivet 3/16"

293150013

$1.37

35

E-Circlip

293370013

$0.65

39

Grease Fitting

408200700

$3.49

40

Bushing

414936000

$13.99

41

Retaining Ring

415129371

$12.01

42

Retaining Ring

415129780

$15.79

43

Upper Axle, Pivot Arm

503144300

$11.65

44

Retaining Ring

503168800

$14.99

45

Urethane Bushing

503189117

$8.19

47

Pivot Arm Axle

503189156

$21.99

49

Bushing

503189271

$13.99

50

Bushing | Includes 240d to 240d1

503189282

$4.34

51

Bushing

503189324

$14.15

53

Ball Bearing | Package-STD

503190396

$14.30

54

Casted Support

503193894

$16.49

55

Rear Wheel Spacer

503190428

$8.14

56

Rear Axle

503190429

$59.99

57

Washer

503190432

$14.22

58

Labyrinth Seal

503190434

$6.09

59

Rubber Stopper

503190576

$12.99

60

Axle Bar (Long)

503190643

$17.39

62

Spring Support Kit

861805547

$10.49

63

Spacer

503191108

$19.99

64

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

65

Spring Support Kit

861805547

$10.49

67

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

68

Upper Shaft

503191215

$38.99

69

Center Bushing

503191259

$11.49

70

Axle Strap

503191260

$30.99

71

Bushing

503191262

$15.79

72

Washer

503191273

$1.35

73

Lower Shaft

503191279

$28.99

76

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

78

Swivel Bushing

503191555

$7.83

79

Extended Bushing

503191556

$7.83

80

LH Cam Adjuster

503191565

$16.49

81

RH Cam Adjuster

503191566

$16.49

83

Slider 137

503191619

$34.99

84

Washer

503191910

$2.32

87

Washer

503191651

$8.32

90

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

91

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$51.99

92

Front Arm | Includes 2000a to 2000b

503191752

$370.99

95

Wheel Cup M6

503191820

$4.99

96

Ball Bearing

503193548

$17.99

97

RH Spring

503192080

$67.99

98

LH Spring

503192081

$67.99

103

Rocker

503192211

$83.99

104

UPPER SHAFT - Call your local BRP dealership

503192222

Unavailable

105

BUSHING - Call your local BRP dealership

503192223

Unavailable

106

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$98.49

107

Linkage Rod

503192255

$44.49

113

Runner Protector

503192299

$24.99

114

Stopper Strap

503192360

$20.99

120

Bolt M8 X 248mm

503192440

$30.49

121

Washer

503192491

$4.54

122

Washer

503192494

$3.17

123

Washer

503192496

$0.77

124

Tensioner

503192583

$8.29

132

Spacer

503196943

$10.99

133

Black, Wheel Cap

503192771

$2.39

134

Bushing

503193037

$16.18

136

Rear Shock Seal HPG

503193187

$248.99

138

Bolt M10 X 251MM

503193227

$17.29

140

Screw M8 X 90

503193372

$4.44

142

Pivot Axle

503193435

$39.99

144

Machined Rail | Includes 10a to 10a1

503193954

$309.99

145

Bushing

572080700

$17.39

146

Bolt M8, Short

732601197

$15.36

148

Socket Head Screw M10 X 35

205503554

$7.51

149

Spring Stopper

706200881

$12.99

150

Protector

503193663

$37.99

151

Spring Guide

503191872

$2.29

152

Adjustment Cam

505073625

$12.99

153

Center Shock

503192266

$164.49

154

Black, Spring

503191882

$62.49

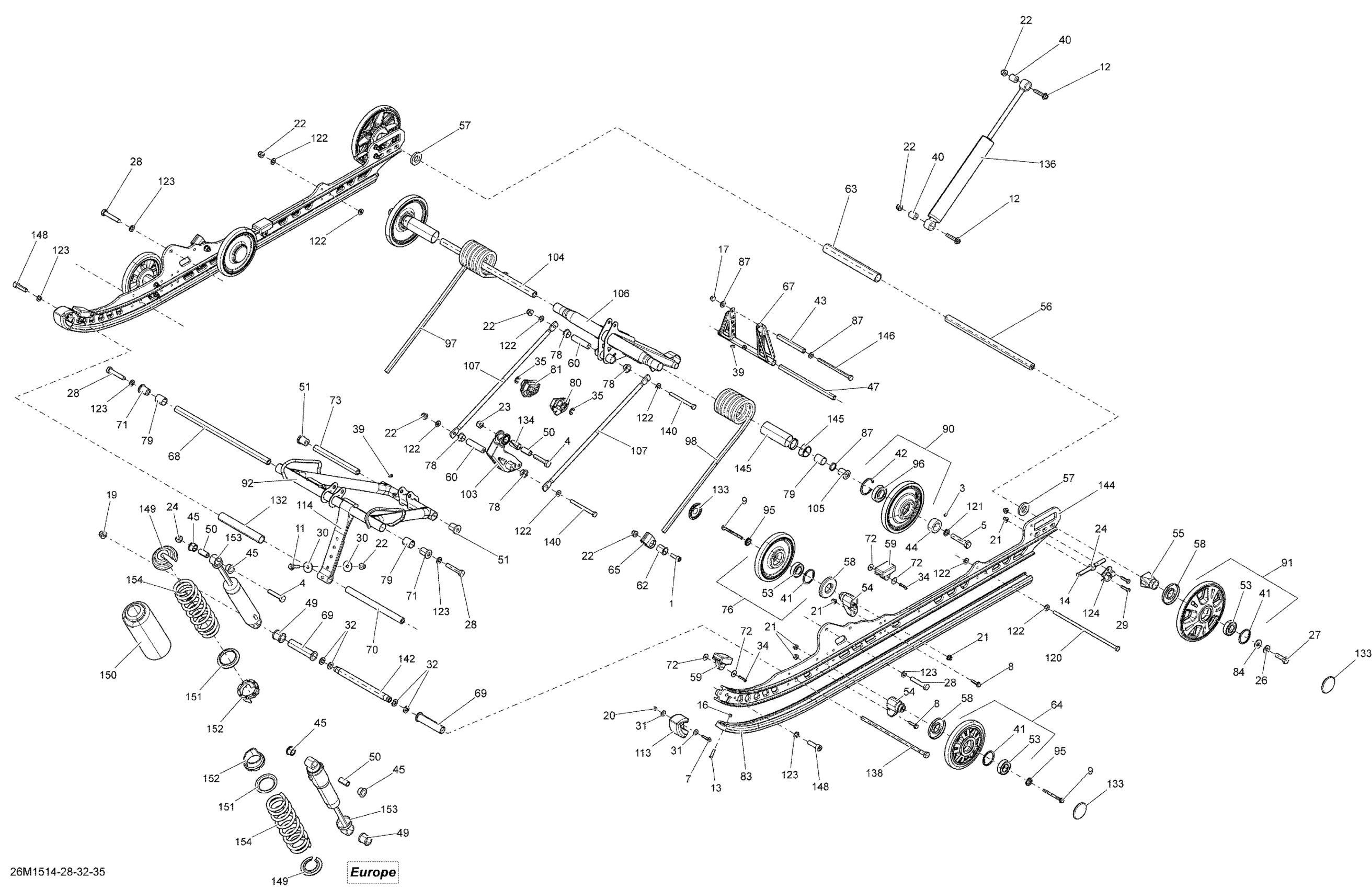

Ski-Doo Tundra Sport 550F XU-137, 2015 08- Rear Suspension _26M1528 Diagram

Socket Screw M8 X 25

Socket Set Screw M6 X 8

Hex. Screw M10 X 1.5 X 50

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

Hex. Flange Screw M5 X 25

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 70

Hex. Flange Screw M8 X 30 | DS 650 X

Hex. Flange Screw M8 X 40

Phillips Screw M6 X 25

Hex Screw M10 x 100

Elastic Stop Nut M6

Hex. Elastic Stop Nut M8

Flange Elastic Nut M10

Flange Elastic Nut M5

Hex. Flange Elastic Nut M6

Elastic Flange Nut M8

Elastic Locking Nut M10 X 1.5

Elastic Locking Nut M10

Conical Spring Washer 10 mm

Hex Cap Screw Nylon M10 x 35 | Not shown

Hex. Screw S.Grip M10 X 55

Hex Screw M6 X 25

Flat Washer 8 mm

Washer

Flat Washer

Pop Rivet 3/16"

E-Circlip

Grease Fitting

Bushing

Retaining Ring

Retaining Ring

Upper Axle, Pivot Arm

Retaining Ring

Urethane Bushing

Pivot Arm Axle

Bushing

Bushing | Includes 240d to 240d1

Bushing

Ball Bearing | Package-STD

Casted Support

Rear Wheel Spacer

Rear Axle

Washer

Labyrinth Seal

Rubber Stopper

Axle Bar (Long)

Spring Support Kit

Spacer

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

Spring Support Kit

Pivot Arm | Includes 3000j to 3000j3

Upper Shaft

Center Bushing

Axle Strap

Bushing

Washer

Lower Shaft

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

Swivel Bushing

Extended Bushing

LH Cam Adjuster

RH Cam Adjuster

Slider 137

Washer

Washer

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

Front Arm | Includes 2000a to 2000b

Wheel Cup M6

Ball Bearing

RH Spring

LH Spring

Rocker

UPPER SHAFT - Call your local BRP dealership

BUSHING - Call your local BRP dealership

Rear Arm Ass'y | Includes 3000 to 3000r

Linkage Rod

Runner Protector
