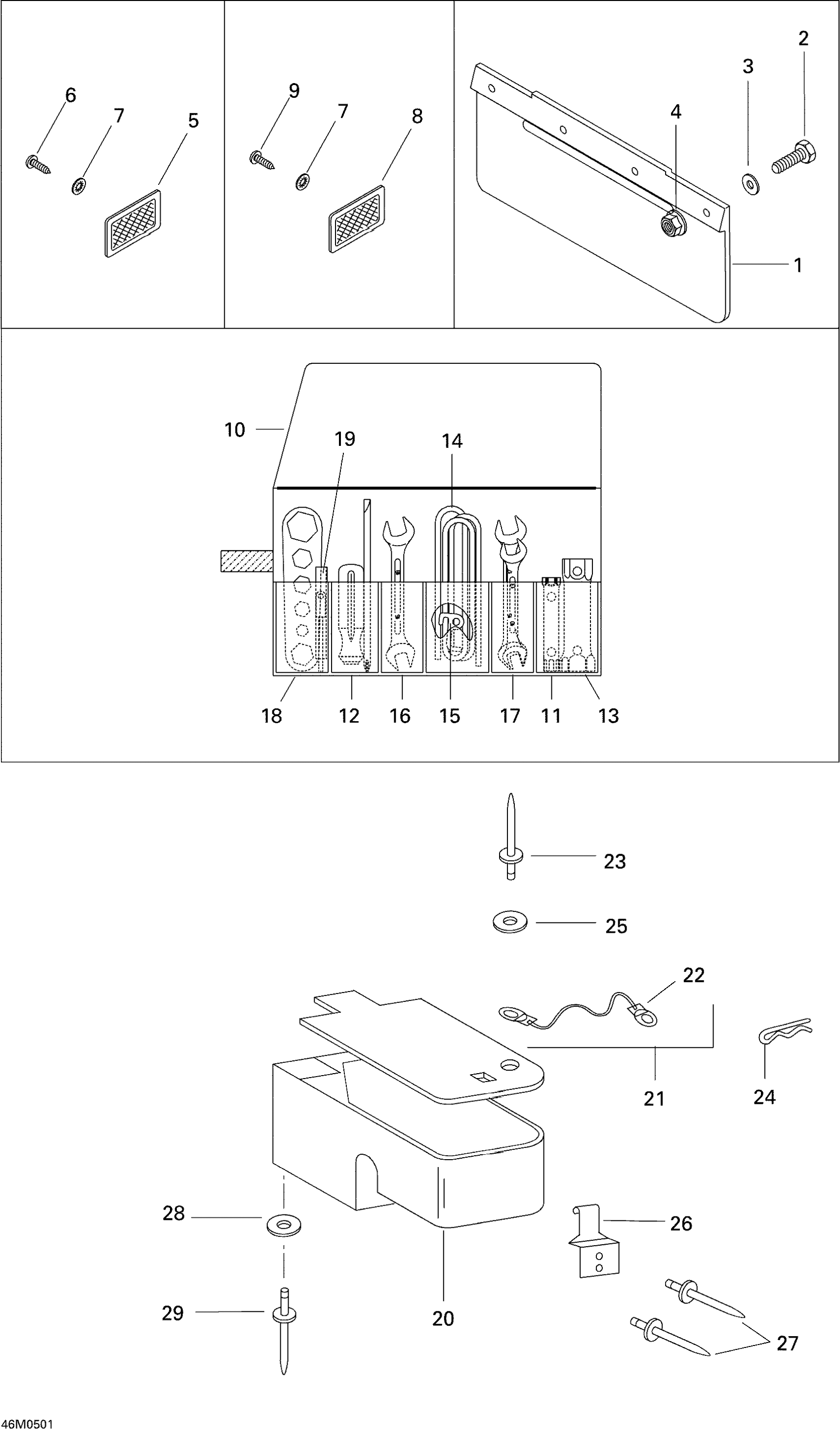

Ski-Doo Tundra R, 2005 09- Utilities Diagram
#
Description
Price
1
Snow Guard
572013800
Unavailable
5
REFLECTOR, AMBER - Call your local BRP dealership
414510200
Unavailable
6
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
7
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
8
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
9
PHILLIPS HEAD SCREW M5 X 8 - Call your local BRP dealership
208650841
Unavailable
10
Tool Kit
529034300
Unavailable
11
Socket Wrench 21/26 mm
529014800
Unavailable
12
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
15
ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14
529024400
Unavailable
16
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
17
FORK WRENCH 15/17 MM - Call your local BRP dealership
529000003
Unavailable
18
MULTI-WRENCH - Call your local BRP dealership
529014700
Unavailable
19
BELT TOOL - Call your local BRP dealership
529034200
Unavailable
20
Tool Box
414624900
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Terminal Ring
561502800
Unavailable
23
Pop Rivet 5/32"
390405100
Unavailable
26
Latch
517168500
Unavailable
27
Pop Rivet 5/32"
390401700
Unavailable
