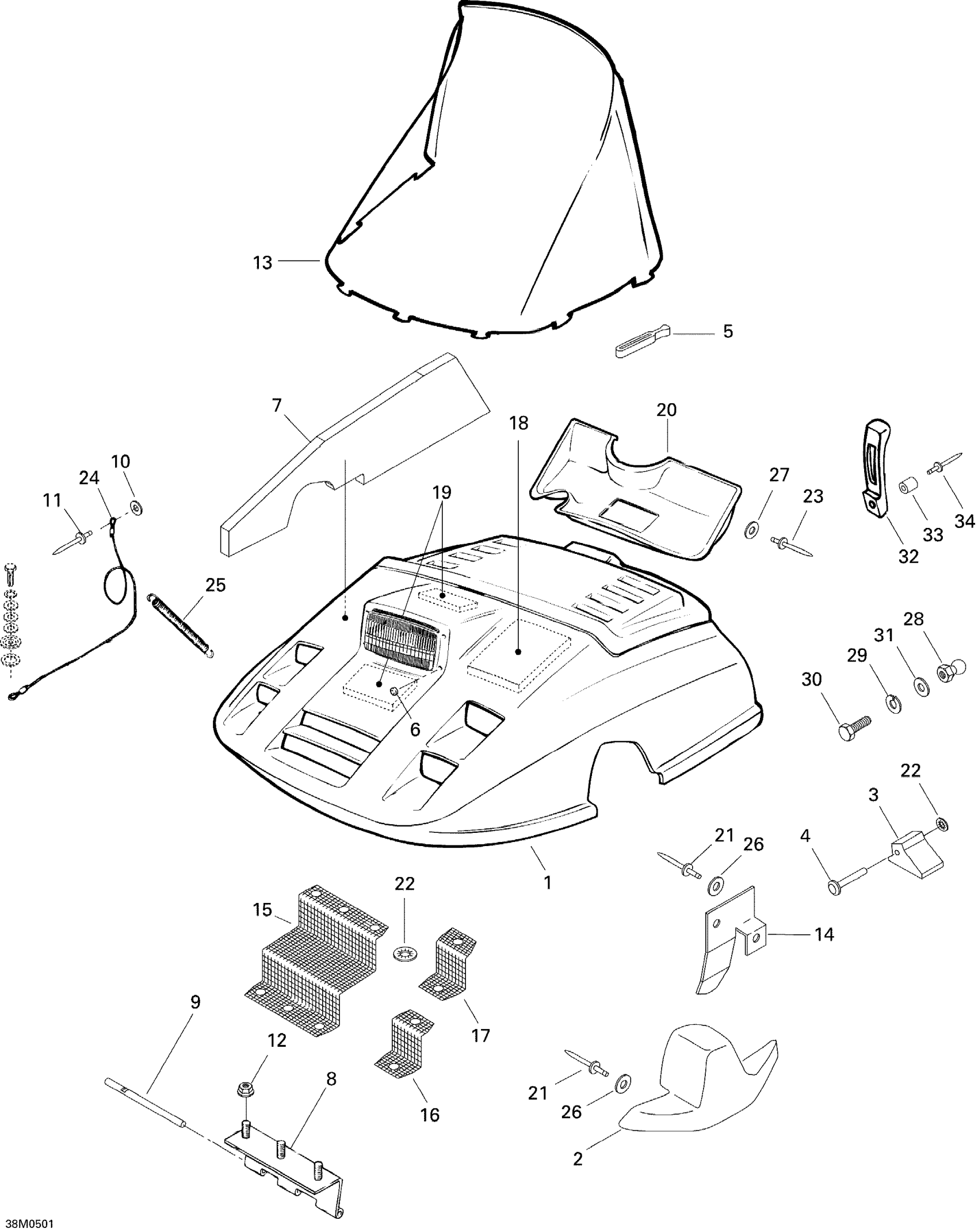

Ski-Doo Tundra R, 2005 09- Hood Diagram
#
Description
Price
1
Black Hood | CB-160
517302725
Unavailable
1
Yellow Hood | CB-190
572048102
Unavailable
2
LH Hood Moulding
572038800
Unavailable
2
RH Hood Moulding
572038900
Unavailable
3
Hood Guide
570038700
Unavailable
4
Steel Rivet
390907000
Unavailable
6
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
6
Snap Cap (Yellow) | CB-190
414768500
Unavailable
7
RH Foam
517302204
Unavailable
7
LH Foam
414867100
Unavailable
8
Welded Hinge
517182200
Unavailable
9
Pivot Pin
517279800
Unavailable
14
RH Hood Guide
517261300
Unavailable
14
LH Hood Guide
517251500
Unavailable
15
Paint Central Front Grill
517251700
Unavailable
16
Front Grill
517251800
Unavailable
17
RH Up Side Grill
517270600
Unavailable
17
LH Up Side Grill
517270700
Unavailable
18
Side Foam
414829600
Unavailable
19
Front Foam
414829800
Unavailable
20
AIR DUCT - Call your local BRP dealership
414804000
Unavailable
23
Pop Rivet 3/16" | CB-160
293150121
Unavailable
23
Pop Rivet 3/16" (Yellow) | CB-190
390400400
Unavailable
24
Retainer Cable
414581400
Unavailable
25
Spring
414763300
Unavailable
31
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
32
BLACK LATCH - Call your local BRP dealership
570025900
Unavailable
