Description

Price

1

Frame

518323484

Unavailable

2

Welded Front Bumper

518320200

Unavailable

3

Grease Fitting

408200700

$3.49

4

Upper Cushion

414803100

$10.49

5

Lower Cushion

414803200

$14.68

6

Rear Bumper

517170700

Unavailable

7

Paint Upper Column

518322990

Unavailable

8

Pop Rivet 1/4

293150117

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Pop Rivet 3/16"

390402400

$0.35

12

Hex. Flange Screw M6 X 35

207063544

$1.37

13

Hex. Screw M6 X 25

207162544

$1.15

14

Lock Washer M6, Black

234161471

$0.53

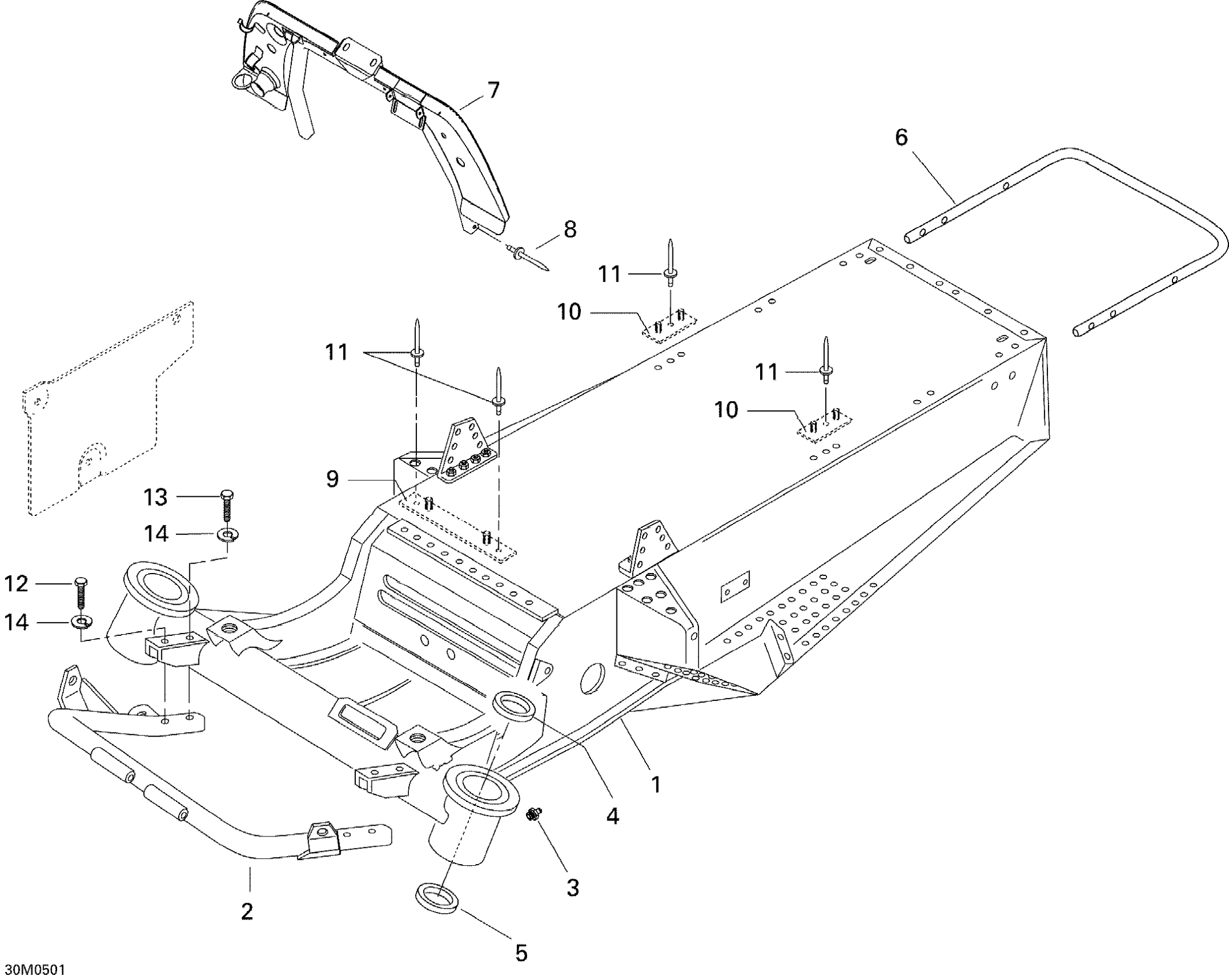

Ski-Doo Tundra R, 2005 09- Frame Diagram

Frame

Welded Front Bumper

Grease Fitting

Upper Cushion

Lower Cushion

Rear Bumper

Paint Upper Column

Pop Rivet 1/4

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Pop Rivet 3/16"

Hex. Flange Screw M6 X 35

Hex. Screw M6 X 25

Lock Washer M6, Black
