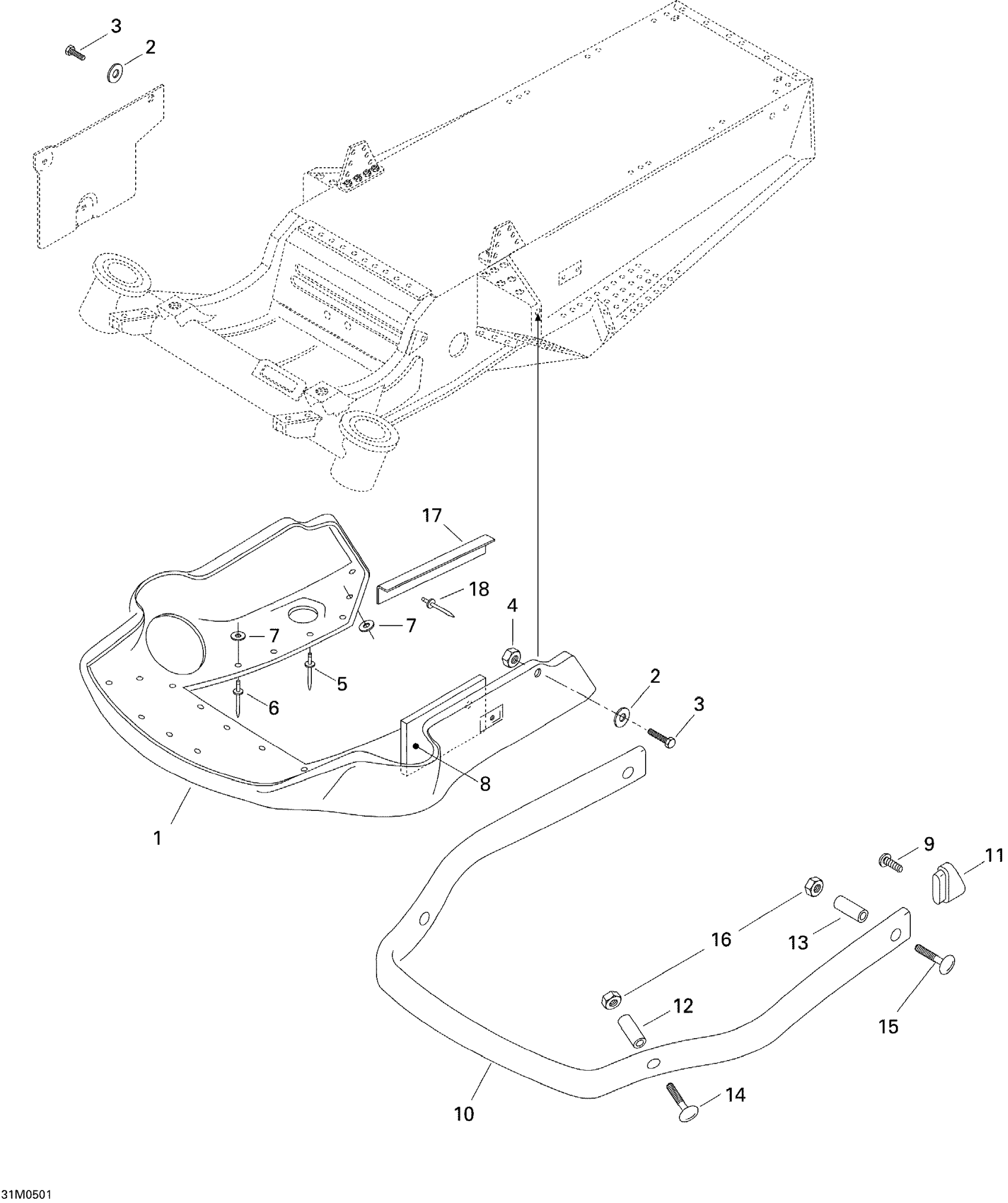

Ski-Doo Tundra R, 2005 09- Bottom Pan Diagram

#

Description
Price

1

Bottom Pan

502006587

Unavailable

2

Flat Washer

224061121

$0.53

3

Hex. Screw M6 X 16

207161644

$0.74

4

Elastic Stop Nut M6

232561414

$0.55

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

6

Pop Rivet 3/16”

293150108

$1.19

7

Washer

517124300

$0.19

8

Side Foam

502006541

Unavailable

9

TAPPING SCREW M4.2X9.5 - Call your local BRP dealership

209640940

Unavailable

10

Paint Bumper

517248800

Unavailable

11

Bumper Cap

572039300

Unavailable

12

BUSHING - Call your local BRP dealership | TROUSSE

517250600

Unavailable

13

Bushing | TROUSSE

517250700

Unavailable

14

Carriage Bolt M8 X 75

207787541

Unavailable

15

Carriage Bolt M6 X 55 This part replaces 207785541.

207765544

$3.91

16

Hex. Elastic Stop Nut M8

232581414

$0.56

17

Paint Reinforcement

517259200

Unavailable

18

Rivet 3/16"

293150102

$0.70
