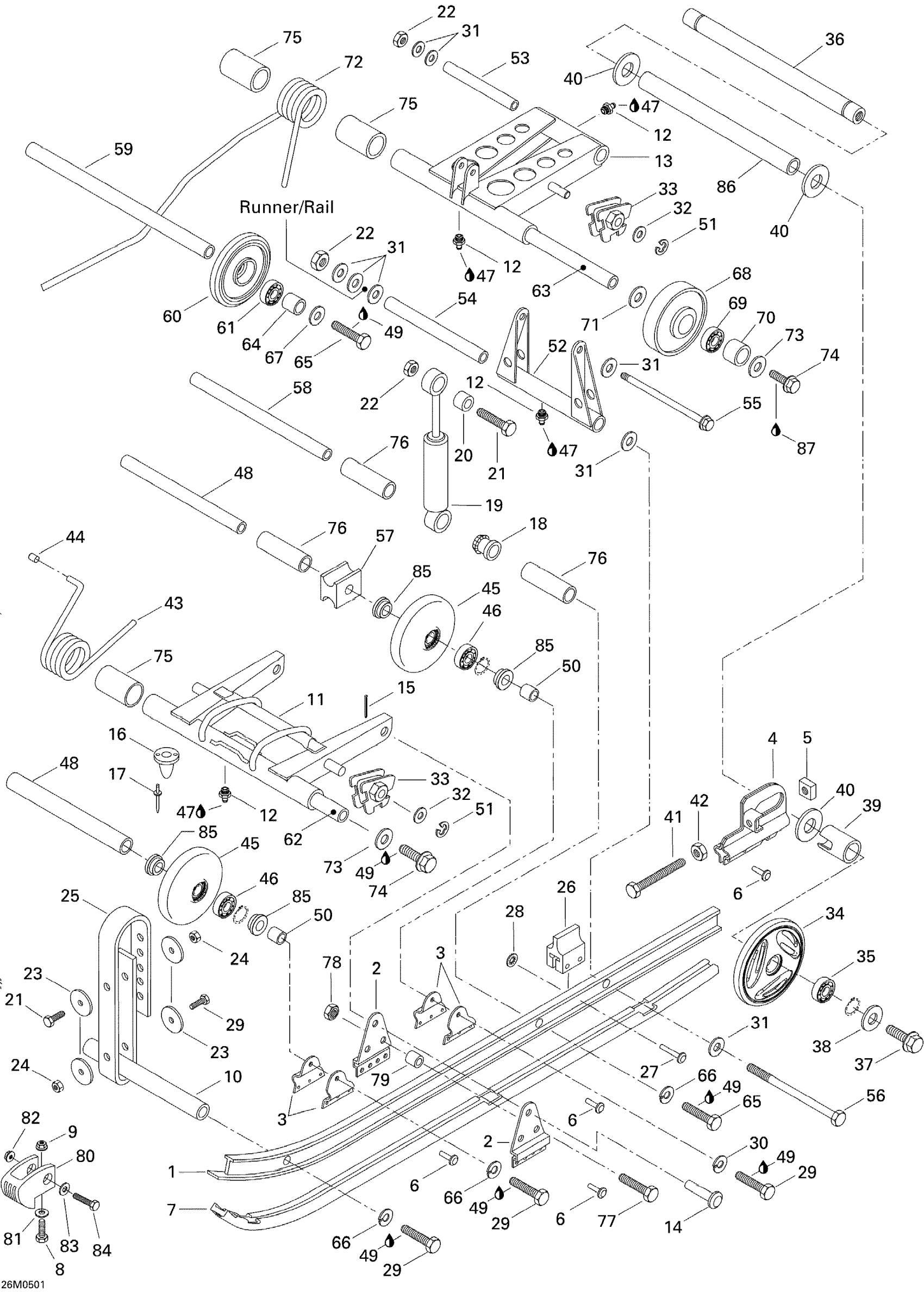

Ski-Doo Tundra R, 2005 08- Rear Suspension Diagram

#

Description
Price

1

Runner

503187900

Unavailable

2

FRONT ARM SUPPORT - Call your local BRP dealership

503149800

Unavailable

3

Support

503145000

Unavailable

4

RH Adjustment Plate Welded

503188921

Unavailable

4

LH Adjustment Plate Welded

503188924

Unavailable

5

Square Nut M10

232802400

Unavailable

6

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

7

Runner

503189239

$29.49

8

Hex. Screw M5 X 30

207053044

$1.16

9

Hex. Flange Elastic Nut M5

233251414

$1.04

10

Cross Shaft

503189225

Unavailable

11

Paint Front Arm

503145300

Unavailable

12

Grease Fitting

408200700

$3.49

13

Paint Rear Arm

503143500

Unavailable

14

Clevis Pin

414191500

Unavailable

15

Cotter Pin

371800200

$0.53

16

Rubber Stopper

570032900

Unavailable

17

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

18

BUSHING - Call your local BRP dealership

572030700

Unavailable

19

SHOCK - Call your local BRP dealership

503188901

Unavailable

20

CUSHION - Call your local BRP dealership

414802600

Unavailable

21

Hex. Screw M8 X 35

207083544

$1.15

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

WASHER - Call your local BRP dealership

517078700

Unavailable

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Stopper Strap

503190650

Unavailable

26

FRONT RUBBER STOPPER - Call your local BRP dealership

570047900

Unavailable

27

RIVET-STEEL SOLID - Call your local BRP dealership

390004800

Unavailable

28

Push Nut

389804300

$0.53

29

Hex. Screw M8 X 30

207183044

$1.15

30

Lock Washer 8 mm

234181401

$0.92

31

Flat Washer 8 mm

234081410

$0.83

32

Flat Washer 10 mm

234001410

$1.26

33

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

33

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

34

Plastic Wheel 155mm

503191028

Unavailable

35

Ball Bearing

293350115

$12.11

36

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

37

Hex. Screw With Nylon

250000019

$1.69

38

Washer

503183300

$5.82

39

Outer Spacer

503189809

$18.89

40

SHIM - Call your local BRP dealership

504108200

Unavailable

41

Hex. Screw M10 X 75

207107544

Unavailable

42

Hex. Nut M10 X 1.5

232006414

$1.37

43

RH Paint Spring

414880400

Unavailable

43

LH PAINT SPRING - Call your local BRP dealership

414880500

Unavailable

44

Cap

503189165

Unavailable

45

Wheel 135

503191029

$33.99

46

Ball Bearing

293350115

$12.11

47

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

48

Axle Center

503145100

Unavailable

49

Loctite 271, 10 ml

293800005

$26.99

50

SPACER - Call your local BRP dealership

503144200

Unavailable

51

e Circlip

371907100

Unavailable

52

PAINT PIVOT ARM - Call your local BRP dealership

503144100

Unavailable

53

Upper Axle, Pivot Arm

503144300

$11.65

54

LOWER PIVOT ARM - Call your local BRP dealership

503144400

Unavailable

55

Bolt M8, Short

732601197

$15.36

56

Bolt M8 X 248mm

503192440

$30.49

57

Spring Support

572034300

Unavailable

58

CROSS SHAFT - Call your local BRP dealership

503144500

Unavailable

59

Cross Shaft

503187400

Unavailable

60

IDLER WHEEL - Call your local BRP dealership

572035400

Unavailable

61

Ball Bearing

405404600

$25.99

62

Front Cross Shaft

503144600

Unavailable

63

Rear Cross Shaft

503144700

Unavailable

64

SPACER - Call your local BRP dealership

572108400

Unavailable

65

Hex. Screw M8 X 25

207182544

$0.90

66

Lock Washer 8 mm

234181401

$0.92

67

Washer

503189157

$3.28

68

Idler Wheel

572095100

$48.49

69

Ball Bearing

405404600

$25.99

70

Spacer

503144800

Unavailable

71

Washer

503144900

$2.79

72

RH PAINT SPRING - Call your local BRP dealership

414880200

Unavailable

72

LH PAINT SPRING - Call your local BRP dealership

414880300

Unavailable

73

Washer

503183800

$3.28

74

Hex. Screw M10 X 35

207103544

$1.58

75

BUSHING - Call your local BRP dealership

572039400

Unavailable

76

Plastic Bushing

572035600

Unavailable

77

Hex. Screw M8 X 40

207084044

$1.15

78

Hex. Elastic Stop Nut M8

232581414

$0.56

79

Spacer

503038300

Unavailable

80

Runner Protector

572054000

Unavailable

81

Flat Washer M5

234051410

$0.53

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

83

Flat Washer

224061121

$0.53

84

Hex. Screw M6 X 30

207063044

$1.26

85

Cushion

503189093

Unavailable

86

CENTER SPACER - Call your local BRP dealership

503162000

Unavailable

87

Loctite 243, 10 ml

293800060

$21.49
