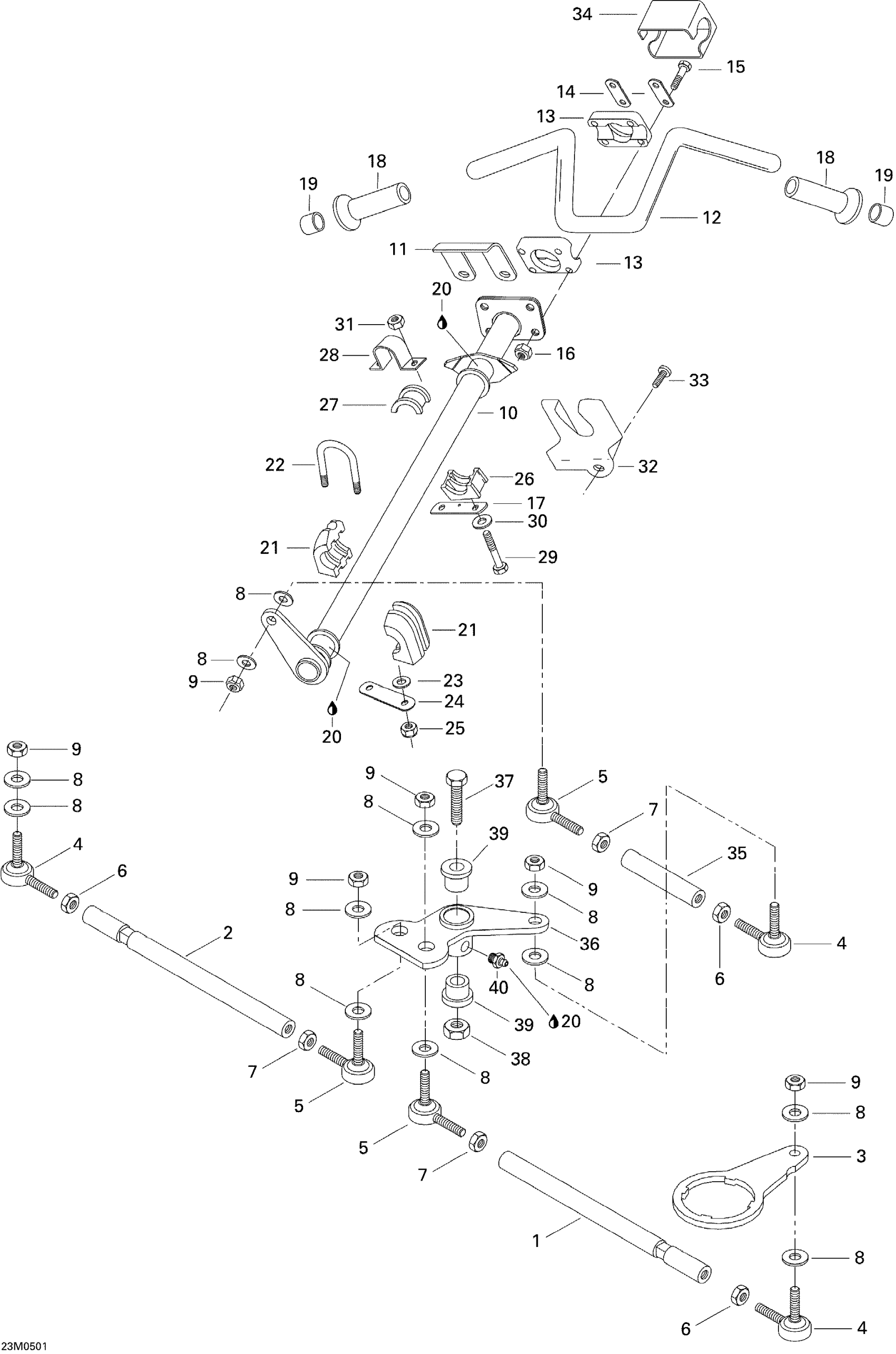

Ski-Doo Tundra R, 2005 07- Steering System Diagram

#

Description
Price

1

Tie Rod

506113300

Unavailable

2

Tie Rod

506113400

Unavailable

3

Steering Arm

506148900

Unavailable

4

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

5

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

6

RH Threaded Hex. Jam Nut M10

732610010

$0.74

7

LH Threaded Hex. Jam Nut M10

250100016

$0.74

8

Washer

503175800

$3.28

9

Elastic Flange Nut M10

232501416

$1.48

10

Steering Main Tube Paint

506149700

Unavailable

11

Retainer Support

517224200

Unavailable

12

Handle Bar Paint

506151812

Unavailable

13

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

14

Stiffner

709400509

$4.69

15

Hex. Screw M8 X 55

207085544

$1.68

16

Hex. Elastic Stop Nut M8

232581414

$0.56

17

Paint Plate

506149500

Unavailable

18

RH Grip 6-1/2"

506151530

$16.49

19

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

20

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

21

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

22

U-clamp | X

506060600

$17.80

23

Flat Washer 8 mm

234081410

$0.83

24

Lock Tab

517134700

Unavailable

25

Hex. Elastic Stop Nut M8

232581414

$0.56

26

Bushing

572064400

Unavailable

27

BUSHING - Call your local BRP dealership

572064500

Unavailable

28

Retainer Support

517126200

Unavailable

29

Hex. Screw M8 X 20

207182044

$0.74

30

Flat Washer 8 mm

234081410

$0.83

31

Hex. Elastic Stop Nut M8

232581414

$0.56

32

PAINT PLATE - Call your local BRP dealership

517262000

Unavailable

33

Phillips Screw 8x1/2"

364901600

Unavailable

34

COVER - Call your local BRP dealership

705000371

Unavailable

35

Tie Rod

506149800

Unavailable

36

Welded Idler Arm

506118000

Unavailable

37

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

38

Elastic Locking Nut M10 X 1.5

233601416

$1.69

39

CUSHION - Call your local BRP dealership

414530000

Unavailable

40

Grease Fitting

408200700

$3.49
