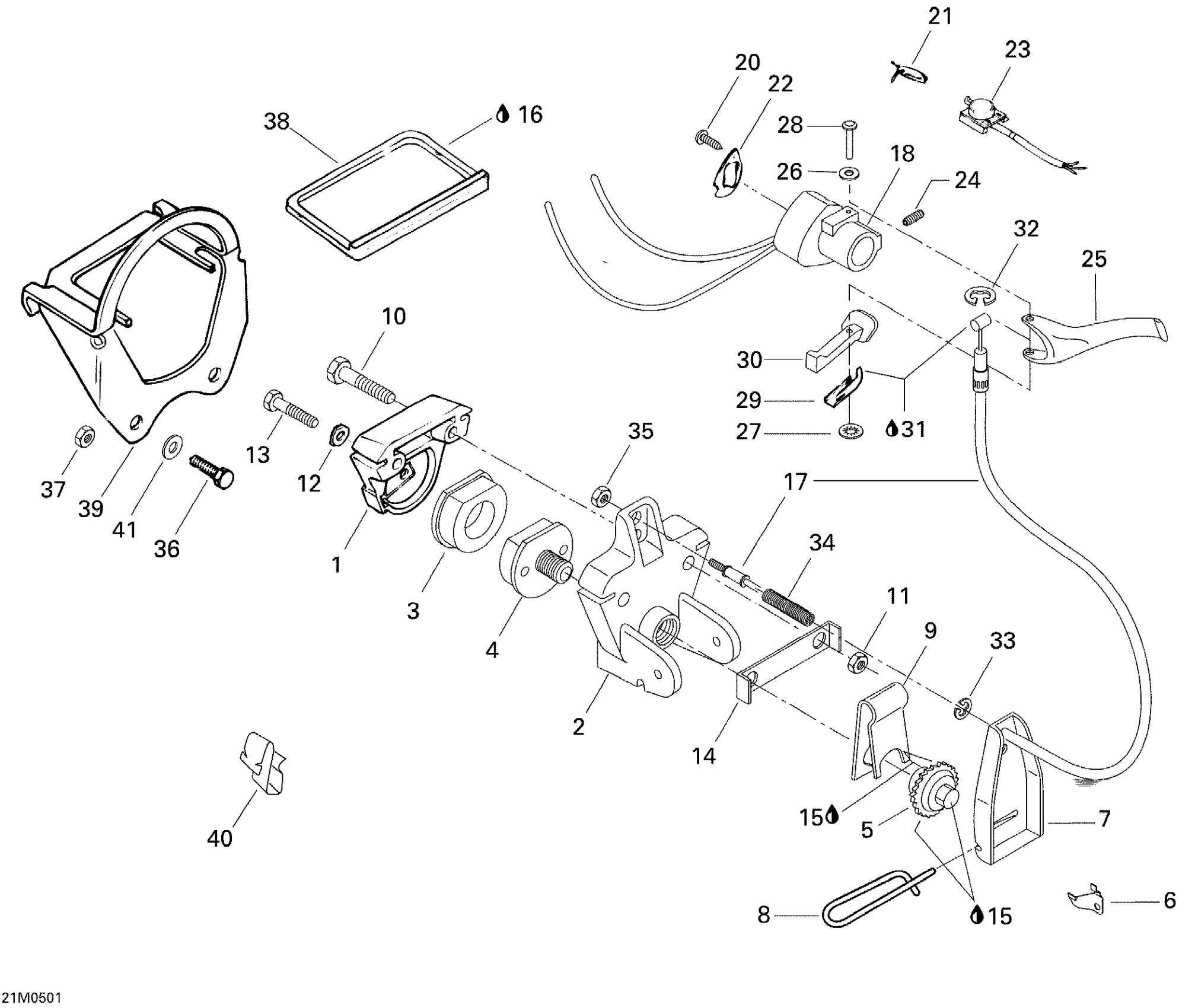

Ski-Doo Tundra R, 2005 06- Brake Diagram

#

Description
Price

1

ANVIL - Call your local BRP dealership

414466800

Unavailable

2

Caliper Machined

507026600

Unavailable

3

Brake Pad

860700100

$52.99

4

Pad_Brake Kit - Call your local BRP dealership

860700700

Unavailable

5

WELDED RATCHET WHEEL - Call your local BRP dealership

507032310

Unavailable

6

RATCHET SPRING - Call your local BRP dealership

507009400

Unavailable

7

LEVER - Call your local BRP dealership

507021500

Unavailable

8

HAIR PIN - Call your local BRP dealership

507032306

Unavailable

9

RELEASE SPRING - Call your local BRP dealership

507020200

Unavailable

10

Hex. Screw M8 X 50

207085044

$1.48

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

TAB LOCK - Call your local BRP dealership

507023600

Unavailable

13

Hex. Screw M5 X 14

207151444

$0.87

14

LOCK-TAB - Call your local BRP dealership

507020400

Unavailable

15

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

BRAKE CABLE - Call your local BRP dealership

507032347

Unavailable

18

BRAKE HOUSING ASS'Y - Call your local BRP dealership

507032313

Unavailable

19

BRAKE HOUSING - Call your local BRP dealership

572086500

Unavailable

20

Screw

211000098

$3.80

21

Brake Switch

507032318

Unavailable

22

Plate

507032328

Unavailable

23

DIMMER SWITCH - Call your local BRP dealership

507032314

Unavailable

24

Socket Set Screw M8 X 10

414440800

$4.12

25

BRAKE HANDLE - Call your local BRP dealership

572025700

Unavailable

26

WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership

414729400

Unavailable

27

Push Nut

389804300

$0.53

28

PIN - Call your local BRP dealership

517229400

Unavailable

29

SPRING - Call your local BRP dealership

507032317

Unavailable

30

Brake Lever

572025200

Unavailable

31

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

32

Circlip

414274500

$0.90

33

Circlip

371901300

Unavailable

34

SPRING - Call your local BRP dealership

414460600

Unavailable

35

Elastic Stop Nut M6

232561414

$0.55

36

Hex. Screw M6 X 25

207162544

$1.15

37

Elastic Stop Nut M6

232561414

$0.55

38

Slider

572013500

Unavailable

39

Welded Caliper Support

507032201

Unavailable

40

Clip

414227300

$1.67

41

Flat Washer 6 mm

234061410

$1.36
