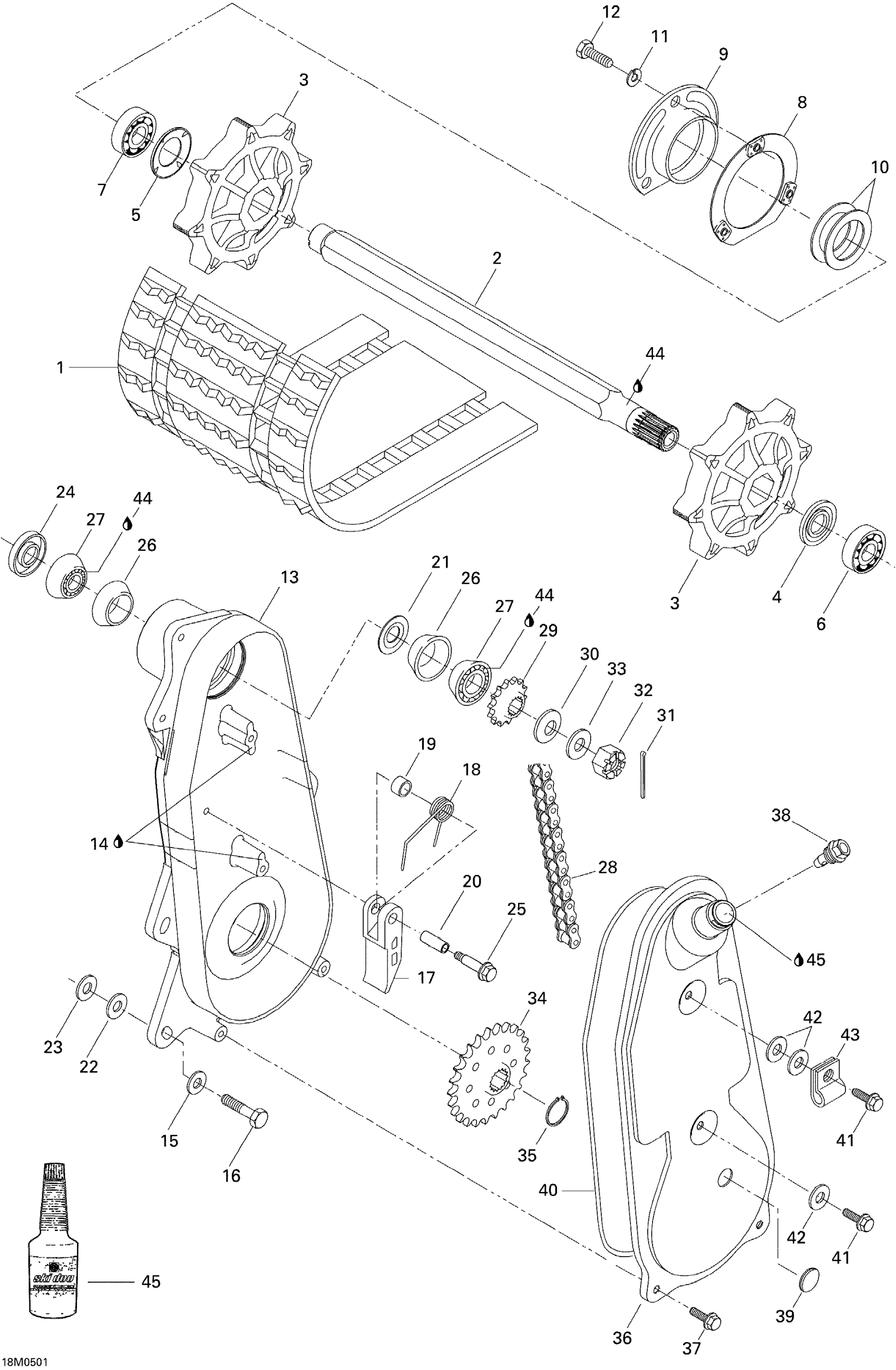

Ski-Doo Tundra R, 2005 05- Transmission Diagram

#

Description
Price

1

Track 15" X 139" X 0.7" Ass'y

504151833

Unavailable

2

DRIVE AXLE - Call your local BRP dealership

504151800

Unavailable

3

SPROCKET 8 TOOTH - Call your local BRP dealership

504151817

Unavailable

4

Seal Oil Ass'y

504152076

$27.99

5

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

6

Ball Bearing

293350115

$12.11

7

Ball Bearing

293350115

$12.11

8

Welded Retaining Ring

501015200

Unavailable

9

Bearing Housing

501019500

Unavailable

10

WASHER - Call your local BRP dealership

501020500

Unavailable

11

Lock Washer M6, Black

234161471

$0.53

12

Hex. Screw M6 X 16

207161644

$0.74

13

Machined Chain Case

504088000

Unavailable

14

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

15

Washer

506151245

$0.93

16

Hex. Screw M8 X 25

207182544

$0.90

17

CHAIN TENSIONER - Call your local BRP dealership

572041600

Unavailable

18

Spring

414130600

Unavailable

19

SPACER - Call your local BRP dealership

504018200

Unavailable

20

Spacer

504051600

Unavailable

21

Oil Deflector

504005800

Unavailable

22

WASHER - Call your local BRP dealership

504073700

Unavailable

23

WASHER - Call your local BRP dealership

250200001

Unavailable

24

Oil Seal

406300600

$17.39

25

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

26

Cup Bearing

405000300

Unavailable

27

CONE BEARING - Call your local BRP dealership

405000400

Unavailable

28

Driving Chain

412106300

Unavailable

29

SPROCKET 14 TOOTH - Call your local BRP dealership

504088500

Unavailable

30

Washer

414823700

Unavailable

31

COTTER PIN - Call your local BRP dealership

371800800

Unavailable

32

HEX. CASTELLATED NUT M12 - Call your local BRP dealership

232220413

Unavailable

33

Special Washer

504049500

Unavailable

34

Sprocket 25 Tooth

504088600

Unavailable

35

External Circlip

371904900

Unavailable

36

PAINT CHAINCASE COVER - Call your local BRP dealership

504088100

Unavailable

37

Hex. Flange Screw M6 X 16

210261650

$1.67

38

Breather

572040600

Unavailable

39

Plug

570040600

Unavailable

40

Seal

570045900

Unavailable

41

Hexagonal Head Screw

210262050

$2.11

42

Flat Washer 6 mm

234062410

$0.77

43

CLIP - Call your local BRP dealership

414351600

Unavailable

44

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

45

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable
