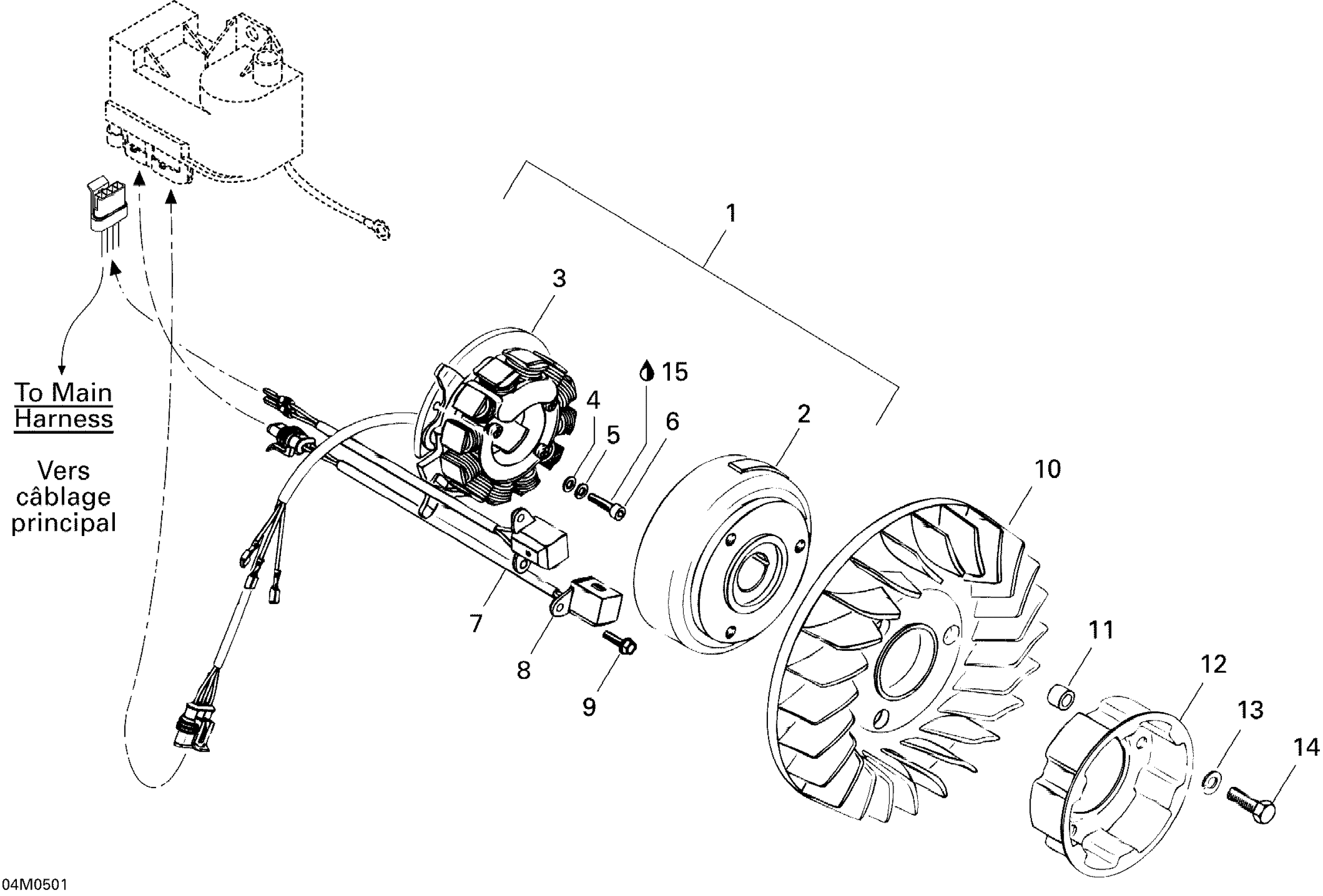

Ski-Doo Tundra R, 2005 04- Magneto Diagram

#

Description
Price

1

DUCATI MAGNETO 12 V 240W ASS'Y - Call your local BRP dealership

420887658

Unavailable

2

FLYWHEEL - Call your local BRP dealership

420996829

Unavailable

3

STATOR PLATE ASS'Y - Call your local BRP dealership

420886608

Unavailable

4

Washer 5.3

420927574

$1.90

5

Lock Washer

420945750

Unavailable

6

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

7

Pick Up Ass'y

420966544

Unavailable

8

Pick Up Ass'y

420966542

Unavailable

9

Taptite Screw M5 X 16

420941928

Unavailable

10

FAN - Call your local BRP dealership

420866435

Unavailable

11

SPACER BUSHING - Call your local BRP dealership

420847440

Unavailable

12

Starting Pulley

420852590

$29.49

13

Washer-Lock Din.128

420945832

$1.15

14

Hex. Screw M8 X 25

207182544

$0.90

15

Loctite 243, 10 ml

293800060

$21.49
