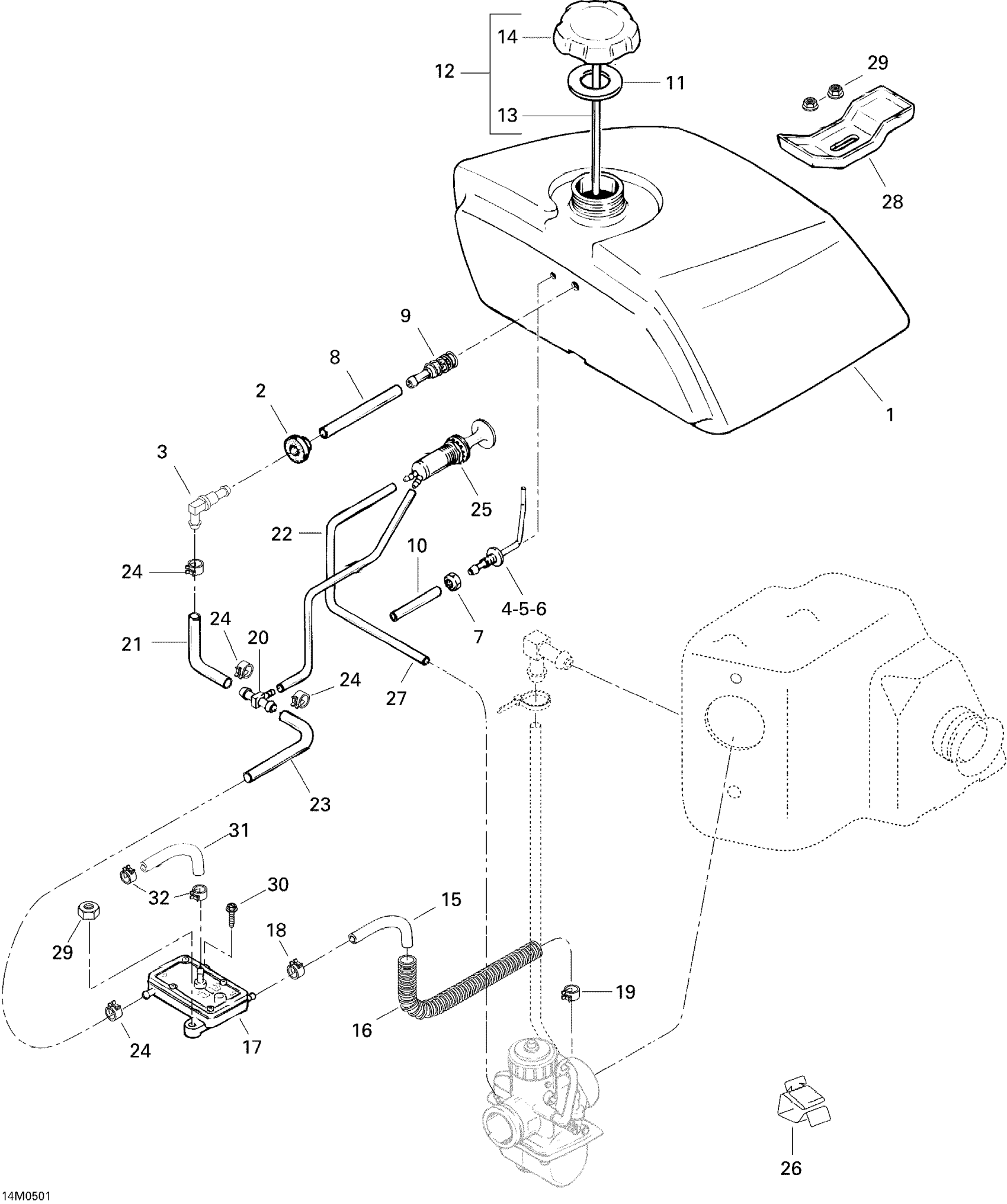

Ski-Doo Tundra R, 2005 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033097

Unavailable

2

Grommet

709200285

$9.69

3

Elbow Male Connector

414580600

$4.23

4

Vent Fitting | Includes Items 4 to 6

513031100

Unavailable

5

Fitting

513031701

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

HEX. NUT 5/16-18 YIC - Call your local BRP dealership

396302200

Unavailable

8

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

9

Fuel Filter

414865700

$10.99

10

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

11

Fuel Tank Cap

513033025

$24.49

12

Fuel Tank Cap

513033025

$24.49

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Fuel Tank Cap

513033025

$24.49

15

Hose

219704549

$50.99

16

Was 409901800 Tubing (13 mm)

219704400

$14.49

17

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

$84.99

18

Spring Clamp

414415200

$0.88

19

Spring Clamp

513033014

Unavailable

20

T-fitting

414222500

$1.69

21

Hose

219704549

$50.99

22

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

23

Hose

219704549

$50.99

24

Spring Clamp

414415200

$0.88

25

Primer

415060500

$34.99

26

Clip

414227300

$1.67

27

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

28

Bracket Seat-tank

517159500

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

31

Hose

219704549

$50.99

32

Spring Clamp

414415200

$0.88
