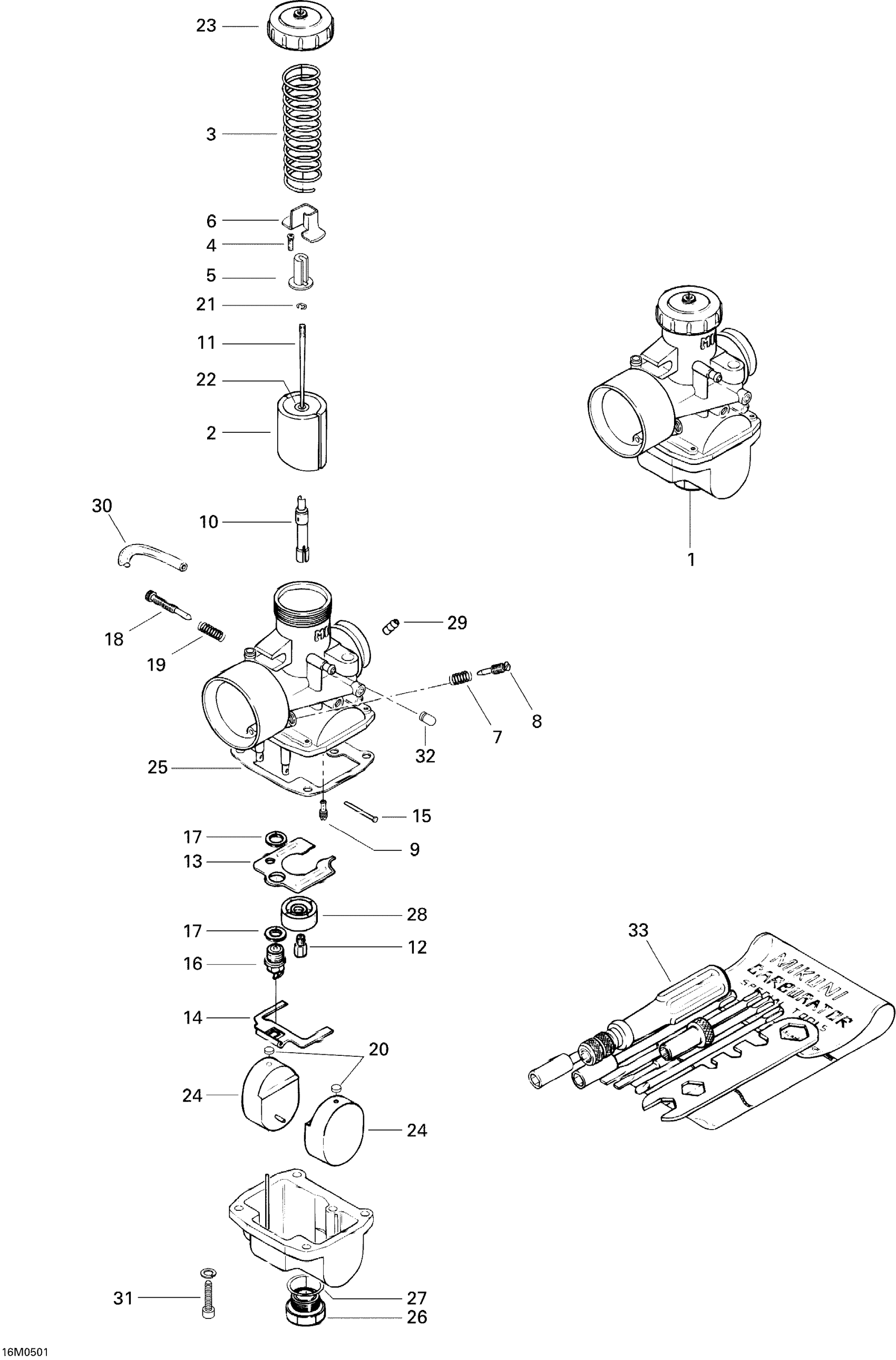

Ski-Doo Tundra R, 2005 02- Carburetor Diagram

#

Description
Price

1

Carburetor Vm-34

403138753

Unavailable

2

Piston Valve 2.5

404128400

$127.49

3

Throttle Valve Spring

404152700

Unavailable

4

Screw With Washer

404121300

$4.14

5

Packing

404161948

Unavailable

6

Cover

404122100

$19.49

7

Spring

404101800

$4.25

8

Air Screw

404102300

$14.35

9

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

10

Needle Jet

404116900

Unavailable

11

NEEDLE JET J8-6DH04 - Call your local BRP dealership

404101900

Unavailable

12

Main Jet MJ 200

404112300

$5.21

13

BAFFLE - Call your local BRP dealership

404109600

Unavailable

14

Float Lever

404107600

$22.99

15

Lever Pin

404103300

$6.27

16

Needle Valve 1.5

404147400

$42.49

17

Seat Washer

404101600

$3.29

18

Throttle Screw

404148700

Unavailable

19

Spring

404101700

$4.14

20

Cap

404105800

$6.38

21

E-Ring

404152400

$7.27

22

Packing

404117000

$3.29

23

Cover

404103700

$31.99

24

FLOAT - Call your local BRP dealership

404107100

Unavailable

25

Gasket | Includes 1900a to 1900am

404104200

$6.38

26

Clip

404144500

Unavailable

27

O-Ring

404107300

$9.06

28

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

29

NIPPLE - Call your local BRP dealership

404127600

Unavailable

30

HOSE - Call your local BRP dealership

404161880

Unavailable

31

Screw With Lock Washer

404102000

$3.18

32

Cap

404156600

$17.08

33

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

34

Hight Altitude Kit, not Shown

861768900

Unavailable
