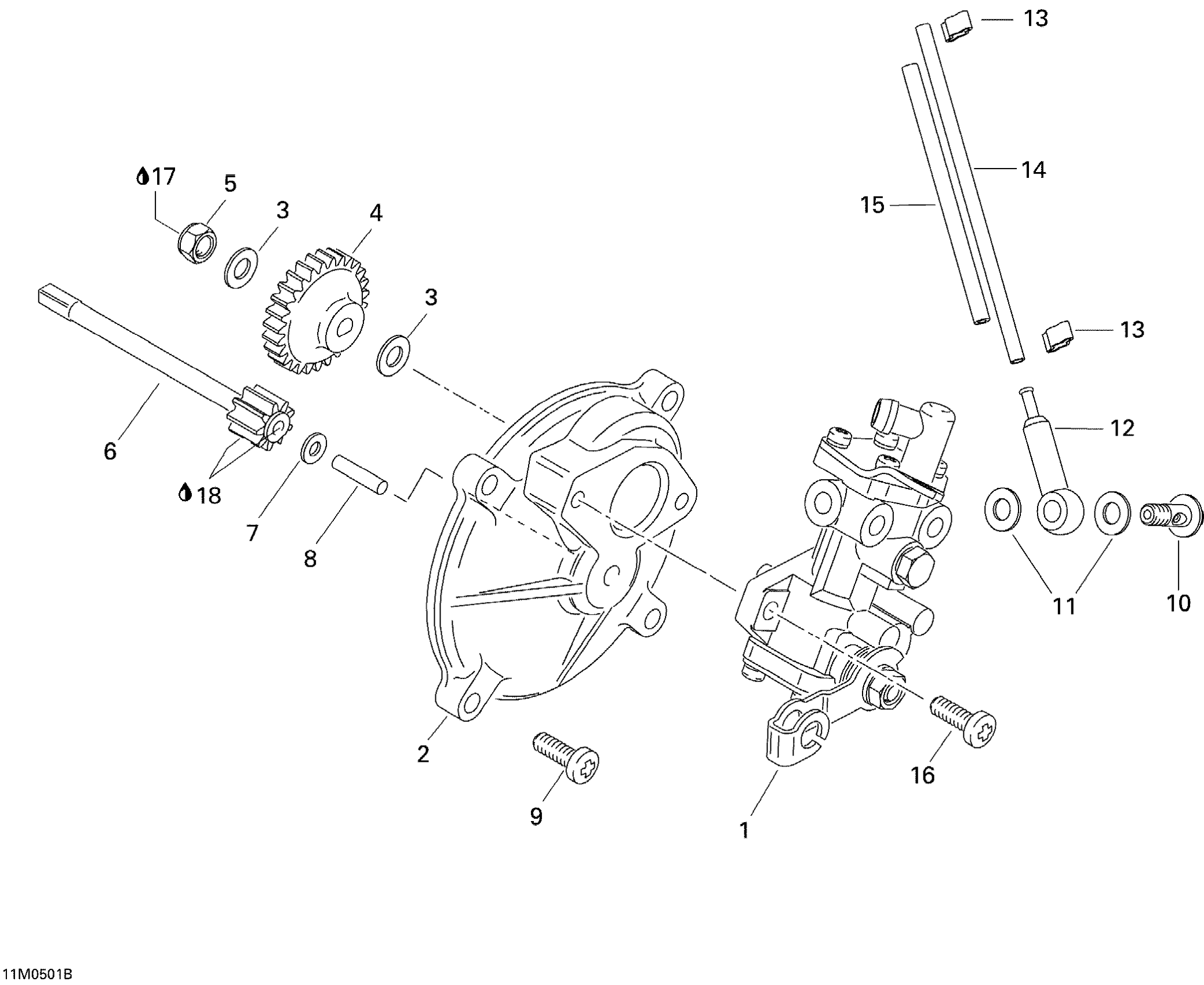

Ski-Doo Tundra R, 2005 01- Oil Pump Diagram

#

Description
Price

1

Oil Pump Ass'y

404046100

Unavailable

2

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$16.33

5

Elastic Stop Nut M6

232561414

$0.55

6

GEAR, 9 TEETH - Call your local BRP dealership

420935975

Unavailable

7

Flat Washer 4

420244072

$1.01

8

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

9

SCREW - Call your local BRP dealership

420841976

Unavailable

10

Banjo Bolt M6 X 16

404146800

Unavailable

11

Sealing Washer

404146600

$2.97

12

Valve Ass’Y

420956010

$17.53

13

Clamp

420853840

$4.44

14

Oil Hose 1500Mm Long

219704404

$17.26

15

Oil Hose 1500Mm Long

219704404

$17.26

16

Screw

420841971

$2.96

17

Loctite 243, 10 ml

293800060

$21.49

18

Dow Corning 111, 150 g

413707000

$59.99
