Description

Price

1

Kill Switch

515175410

Unavailable

2

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

3

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

4

Tie Wrap 94 mm | 4X4

293750001

$1.03

5

Tie-Rap 180 mm

414115200

$0.11

6

Throttle Hand

515059623

Unavailable

7

Brake Switch

515175653

$19.49

8

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

9

Male Housing, 3 Circuits

515175494

$16.18

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Male Terminal

515175232

$1.58

12

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

13

Female Terminal Housing, 13 Circuits

515175350

$14.24

14

Female Terminal

515175231

$4.39

15

Female Terminal

515175282

$7.86

16

Female Housing, 3 Circuits

515175495

$16.18

17

Not Available As Spare Part - Friction Washer

Unavailable

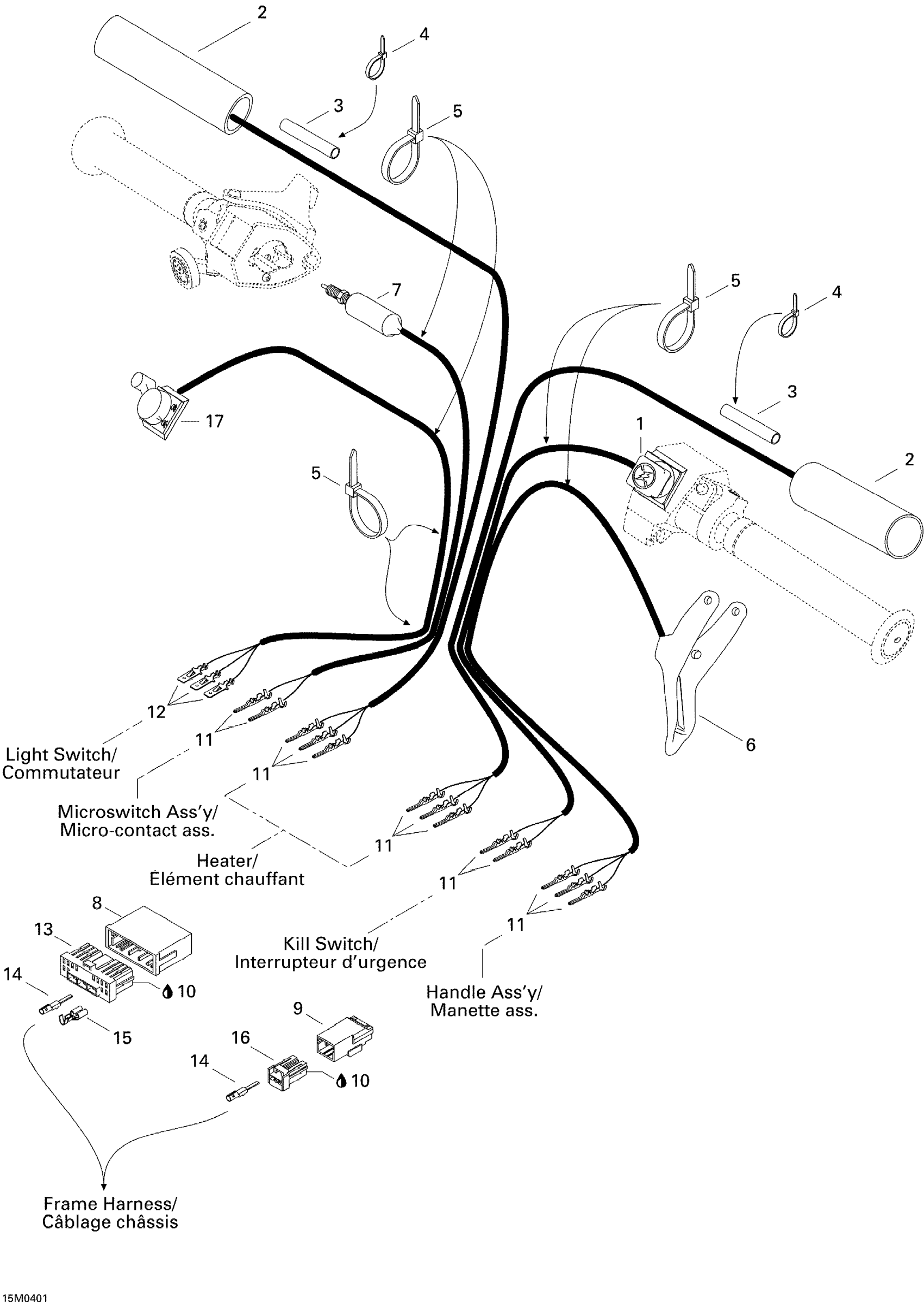

Ski-Doo Tundra R, 2004 10- Steering Harness Diagram
