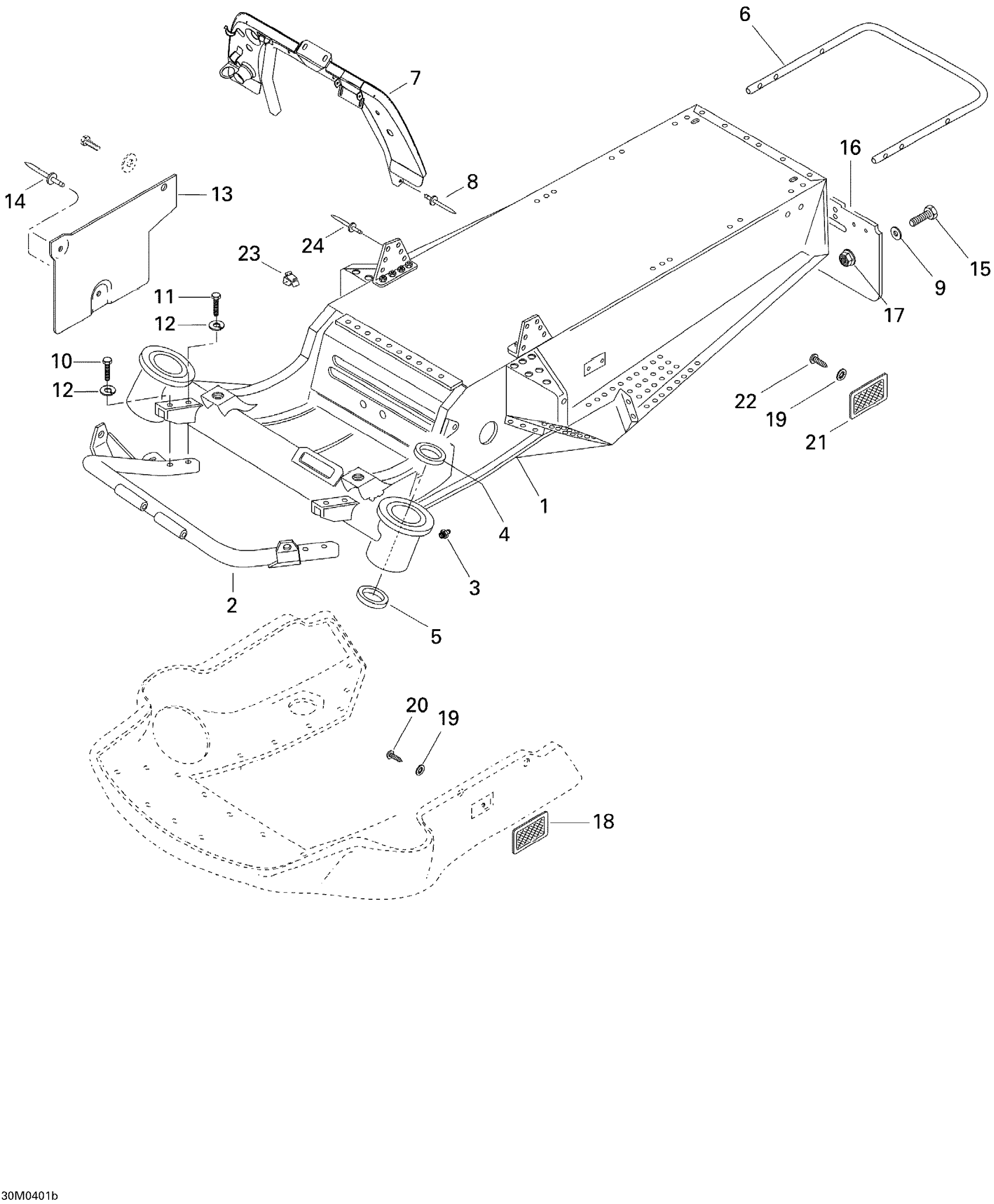

Ski-Doo Tundra R, 2004 09- Frame Diagram

#

Description
Price

1

Frame

518323484

Unavailable

2

Welded Front Bumper

518320200

Unavailable

3

Grease Fitting

408200700

$3.49

4

Upper Cushion

414803100

$10.49

5

Lower Cushion

414803200

$14.68

6

Rear Bumper

517170700

Unavailable

7

Paint Upper Column

518322990

Unavailable

8

Pop Rivet 1/4

293150117

Unavailable

9

Washer

517124300

$0.19

10

Hex. Flange Screw M6 X 35

207063544

$1.37

11

Hex. Screw M6 X 25

207162544

$1.15

12

Lock Washer M6, Black

234161471

$0.53

13

Heat Shield

517299300

Unavailable

14

Rivet 3/16"

293150102

$0.70

15

Hex. Screw M5 X 20

207152044

$0.90

16

Snow Guard

572013800

Unavailable

17

Hex. Flange Elastic Nut M5

233251414

$1.04

18

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

19

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

20

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

21

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

22

PHILLIPS HEAD SCREW M5 X 8 - Call your local BRP dealership

208650841

Unavailable

23

Clip

414227300

$1.67

24

Rivet 1/4”

390403400

Unavailable
