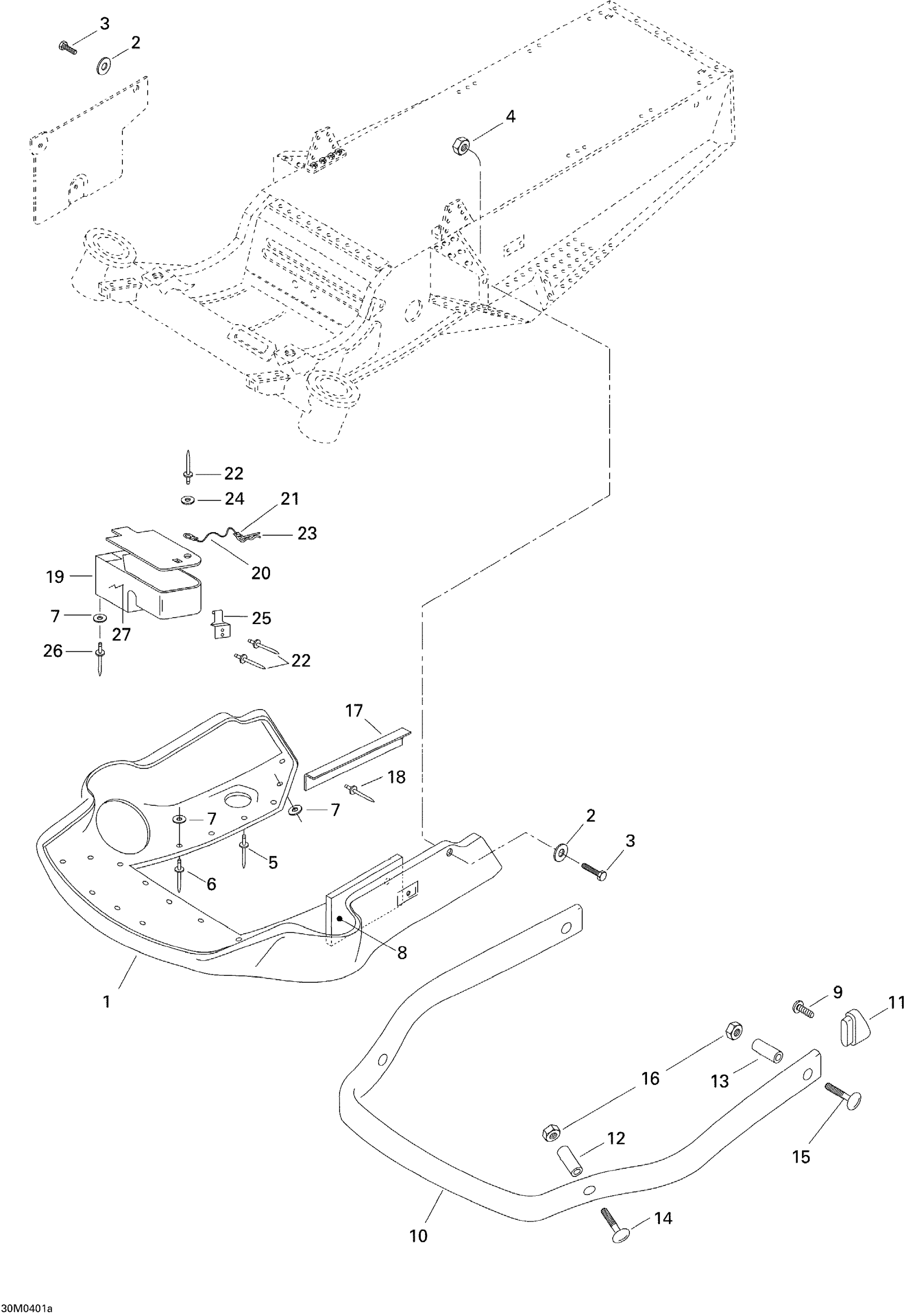

Ski-Doo Tundra R, 2004 09- Bottom Pan Diagram

#

Description
Price

1

Bottom Pan

502006587

Unavailable

2

Flat Washer

224061121

$0.53

3

Hex. Screw M6 X 16

207161644

$0.74

4

Elastic Stop Nut M6

232561414

$0.55

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

6

Pop Rivet 3/16”

293150108

$1.19

7

Washer

517124300

$0.19

8

Side Foam

502006541

Unavailable

9

TAPPING SCREW M4.2X9.5 - Call your local BRP dealership

209640940

Unavailable

10

Bumper

517248810

Unavailable

11

Bumper Cap

572039300

Unavailable

12

BUSHING - Call your local BRP dealership | TROUSSE

517250600

Unavailable

13

Bushing | TROUSSE

517250700

Unavailable

14

Carriage Bolt M8 X 75

207787541

Unavailable

15

Carriage Bolt M6 X 55 This part replaces 207785541.

207765544

$3.91

16

Hex. Elastic Stop Nut M8

232581414

$0.56

17

Paint Reinforcement

517259200

Unavailable

18

Rivet 3/16"

293150102

$0.70

19

Tool Box

414624900

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Terminal Ring

561502800

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Hair Pin

414575600

$1.89

24

WASHER - Call your local BRP dealership

391301000

$0.70

25

Latch

517168500

Unavailable

26

Pop Rivet 3/16”

293150108

$1.19

27

Tool Kit

529034300

Unavailable
