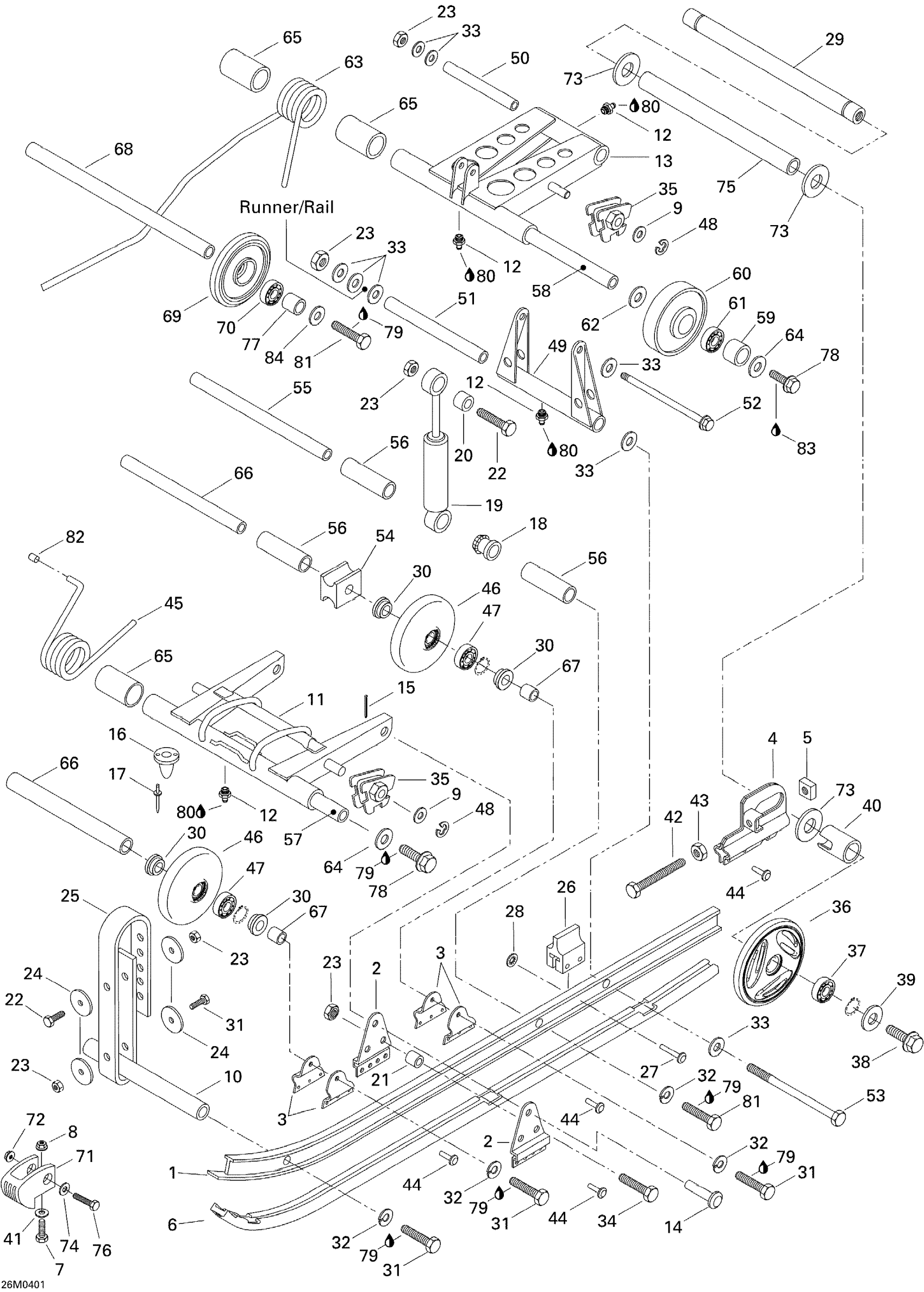

Ski-Doo Tundra R, 2004 08- Rear Suspension Diagram

#

Description
Price

1

Runner

503187900

Unavailable

2

FRONT ARM SUPPORT - Call your local BRP dealership

503149800

Unavailable

3

Support

503145000

Unavailable

4

RH Adjustment Plate Welded

503188921

Unavailable

4

LH Adjustment Plate Welded

503188924

Unavailable

5

Square Nut M10

232802400

Unavailable

6

Runner

503189239

$29.49

7

Hex. Screw M5 X 30

207053044

$1.16

8

Hex. Flange Elastic Nut M5

233251414

$1.04

9

Flat Washer 10 mm

234001410

$1.26

10

Cross Shaft

503189225

Unavailable

11

Paint Front Arm

503145300

Unavailable

12

Grease Fitting

408200700

$3.49

13

Paint Rear Arm

503143500

Unavailable

14

Clevis Pin

414191500

Unavailable

15

Cotter Pin

371800200

$0.53

16

Rubber Stopper

570032900

Unavailable

17

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

18

BUSHING - Call your local BRP dealership

572030700

Unavailable

19

SHOCK - Call your local BRP dealership

503188901

Unavailable

20

CUSHION - Call your local BRP dealership

414802600

Unavailable

21

Spacer

503038300

Unavailable

22

Hex. Screw M8 X 35

207083544

$1.15

23

Hex. Elastic Stop Nut M8

232581414

$0.56

24

WASHER - Call your local BRP dealership

517078700

Unavailable

25

Stopper Strap

570025700

Unavailable

26

FRONT RUBBER STOPPER - Call your local BRP dealership

570047900

Unavailable

27

RIVET-STEEL SOLID - Call your local BRP dealership

390004800

Unavailable

28

Push Nut

389804300

$0.53

29

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

30

Cushion

503189093

Unavailable

31

Hex. Screw M8 X 30

207183044

$1.15

32

Lock Washer 8 mm

234181401

$0.92

33

Flat Washer 8 mm

234081410

$0.83

34

Hex. Screw M8 X 40

207084044

$1.15

35

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

35

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

36

Idler Wheel Ass’y (155) | 36 to 37

503190217

Unavailable

37

Ball Bearing

293350115

$12.11

38

Hex. Screw With Nylon

250000019

$1.69

39

Washer

503183300

$5.82

40

Outer Spacer

503189809

$18.89

41

Flat Washer M5

234051410

$0.53

42

Hex. Screw M10 X 75

207107544

Unavailable

43

Hex. Nut M10 X 1.5

232006414

$1.37

44

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

45

RH Paint Spring

414880400

Unavailable

45

LH PAINT SPRING - Call your local BRP dealership

414880500

Unavailable

46

Wheel 135

503191029

$33.99

47

Ball Bearing

293350115

$12.11

48

e Circlip

371907100

Unavailable

49

PAINT PIVOT ARM - Call your local BRP dealership

503144100

Unavailable

50

Upper Axle, Pivot Arm

503144300

$11.65

51

LOWER PIVOT ARM - Call your local BRP dealership

503144400

Unavailable

52

Bolt M8, Short

732601197

$15.36

53

Bolt M8 X 248mm

503192440

$30.49

54

Spring Support

572034300

Unavailable

55

CROSS SHAFT - Call your local BRP dealership

503144500

Unavailable

56

Plastic Bushing

572035600

Unavailable

57

Front Cross Shaft

503144600

Unavailable

58

Rear Cross Shaft

503144700

Unavailable

59

Spacer

503144800

Unavailable

60

Idler Wheel

572095100

$48.49

61

Ball Bearing

405404600

$25.99

62

Washer

503144900

$2.79

63

RH PAINT SPRING - Call your local BRP dealership

414880200

Unavailable

63

LH PAINT SPRING - Call your local BRP dealership

414880300

Unavailable

64

Washer

503183800

$3.28

65

BUSHING - Call your local BRP dealership

572039400

Unavailable

66

Axle Center

503145100

Unavailable

67

SPACER - Call your local BRP dealership

503144200

Unavailable

68

Cross Shaft

503187400

Unavailable

69

IDLER WHEEL - Call your local BRP dealership

572035400

Unavailable

70

Ball Bearing

405404600

$25.99

71

Runner Protector

572054000

Unavailable

72

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

73

SHIM - Call your local BRP dealership

504108200

Unavailable

74

Flat Washer

224061121

$0.53

75

CENTER SPACER - Call your local BRP dealership

503162000

Unavailable

76

Hex. Screw M6 X 30

207063044

$1.26

77

SPACER - Call your local BRP dealership

572108400

Unavailable

78

Hex. Screw M10 X 35

207103544

$1.58

79

Loctite 271, 10 ml

293800005

$26.99

80

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

81

Hex. Screw M8 X 25

207182544

$0.90

82

Cap

503189165

Unavailable

83

Loctite 243, 10 ml

293800060

$21.49

84

Washer

503189157

$3.28
