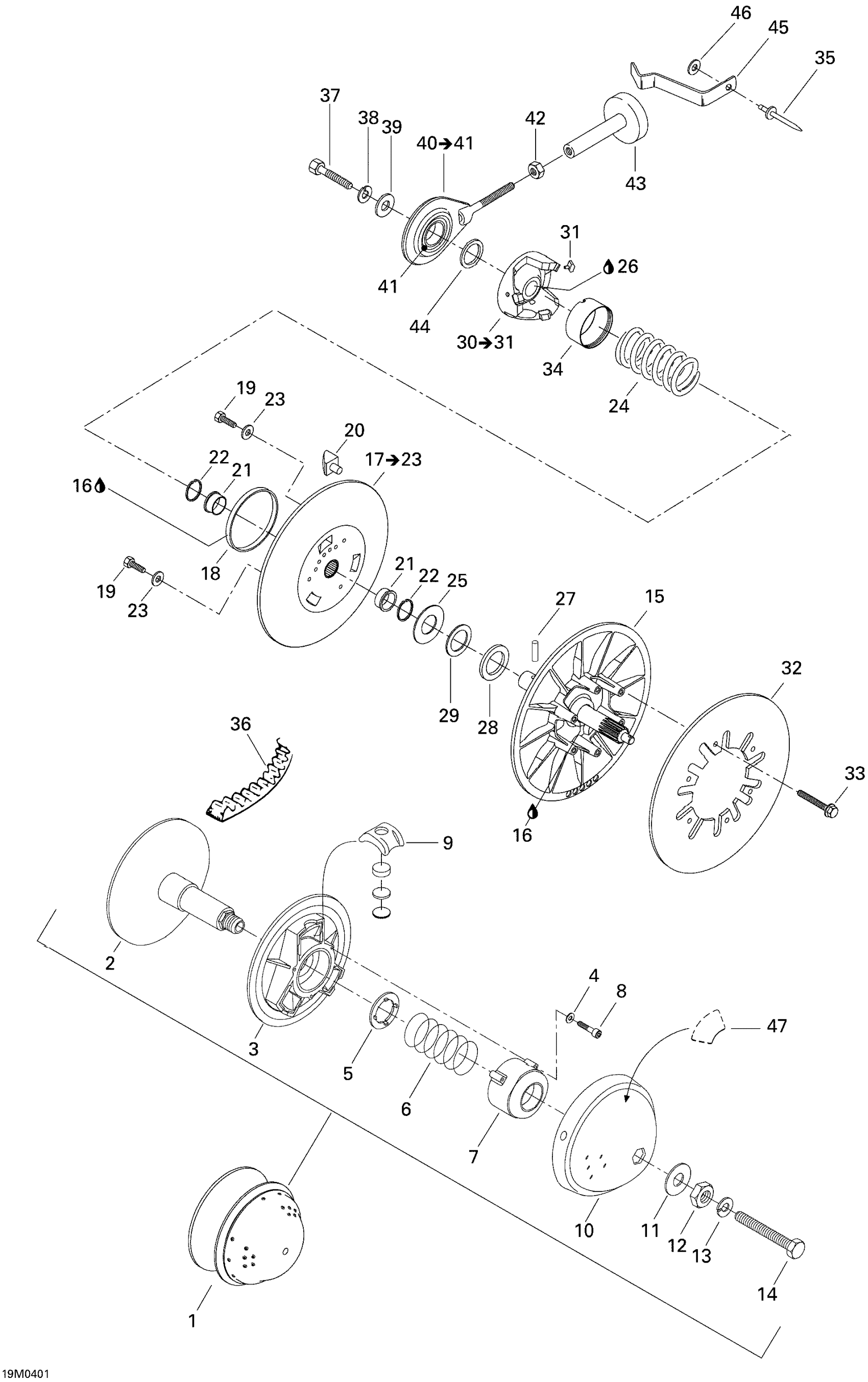

Ski-Doo Tundra R, 2004 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

INNER FIXED FLANGE - Call your local BRP dealership

417126691

Unavailable

3

SLIDING FLANGE - Call your local BRP dealership

417126693

Unavailable

4

WASHER - Call your local BRP dealership

420245370

Unavailable

5

SPRING SEAT - Call your local BRP dealership

417126694

Unavailable

6

CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership

414817500

Unavailable

7

SPRING COVER - Call your local BRP dealership

417126622

Unavailable

8

Socket Screw M6 X 40

205064086

Unavailable

9

Unit Block

417126695

Unavailable

10

CAP - Call your local BRP dealership

417126697

Unavailable

11

Washer

417122400

Unavailable

12

NUT - Call your local BRP dealership

417118300

Unavailable

13

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

14

BOLT - Call your local BRP dealership

417113800

Unavailable

15

Fixed Flange Ass'y

417124500

Unavailable

16

Loctite 609, 10 ml

413703100

$26.99

17

Sliding Flange Ass'y

417126702

Unavailable

18

BUSHING - Call your local BRP dealership

417126397

Unavailable

19

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

20

BACK UP CAM SHOE - Call your local BRP dealership

415099400

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Retaining Ring

371911100

Unavailable

23

Flat Washer

399910000

Unavailable

24

Release Spring

415094300

Unavailable

25

Thrust Washer

504150400

Unavailable

26

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

27

DOWEL PIN - Call your local BRP dealership

372900500

Unavailable

28

Shim

504112000

$8.59

29

SHIM - Call your local BRP dealership

504108200

Unavailable

30

Outer Cam Ass'y

417126350

Unavailable

31

Slide Cam Shoe

415094400

Unavailable

32

BRAKE DISK - Call your local BRP dealership

507032100

Unavailable

33

Hex. Flange Screw M6 X 16

210261650

$1.67

34

Protector

417126349

Unavailable

35

RIVET_POP 1/8 - Call your local BRP dealership

390402500

Unavailable

36

Drive Belt

414827600

$104.99

37

Hex. Screw M8 x 16

207181644

$1.15

38

Lock Washer 8 mm

234181401

$0.92

39

WASHER - Call your local BRP dealership

517078700

Unavailable

40

Support Ass'y

580593000

Unavailable

41

BALL BEARING - Call your local BRP dealership

405401000

Unavailable

42

Hex. Nut M8

232081414

$0.72

43

Rod Retainer

570028300

Unavailable

44

Spacer

504003900

Unavailable

45

SPRING - Call your local BRP dealership

414831800

Unavailable

46

Flat Washer | Not shown

391300800

$0.87

47

Security Label

516001247

Unavailable
