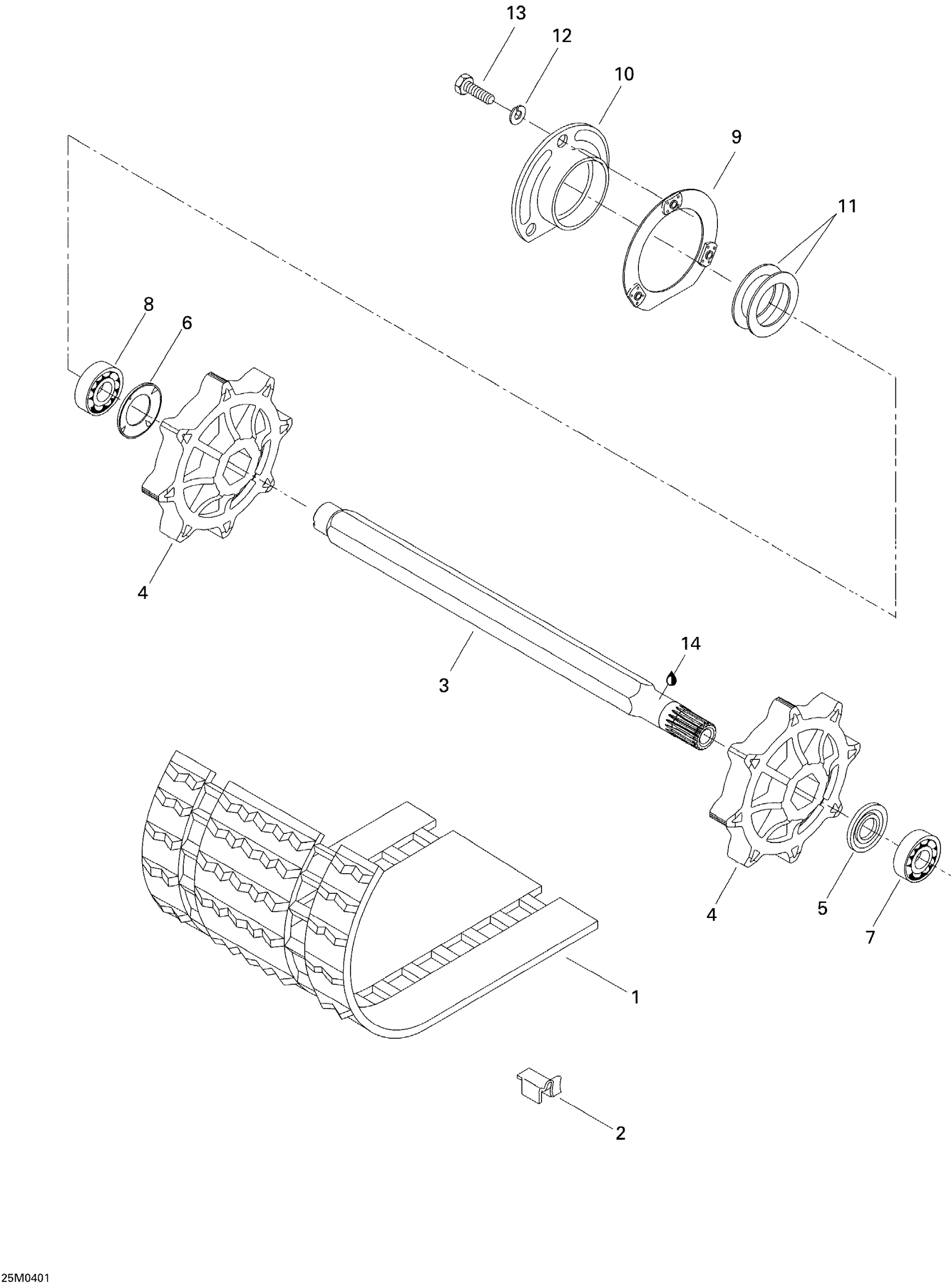

Ski-Doo Tundra R, 2004 05- Drive System Diagram

#

Description
Price

1

Track 15" X 139" X 0.7" Ass'y

504151833

Unavailable

2

Guide Cleat

500002700

Unavailable

3

DRIVE AXLE - Call your local BRP dealership

504151800

Unavailable

4

SPROCKET 8 TOOTH - Call your local BRP dealership

504151817

Unavailable

5

Seal Oil Ass'y

504152076

$27.99

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Ball Bearing

293350115

$12.11

8

Ball Bearing

293350115

$12.11

9

Welded Retaining Ring

501015200

Unavailable

10

Bearing Housing

501019500

Unavailable

11

WASHER - Call your local BRP dealership

501020500

Unavailable

12

Lock Washer M6, Black

234161471

$0.53

13

Hex. Screw M6 X 16

207161644

$0.74

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
