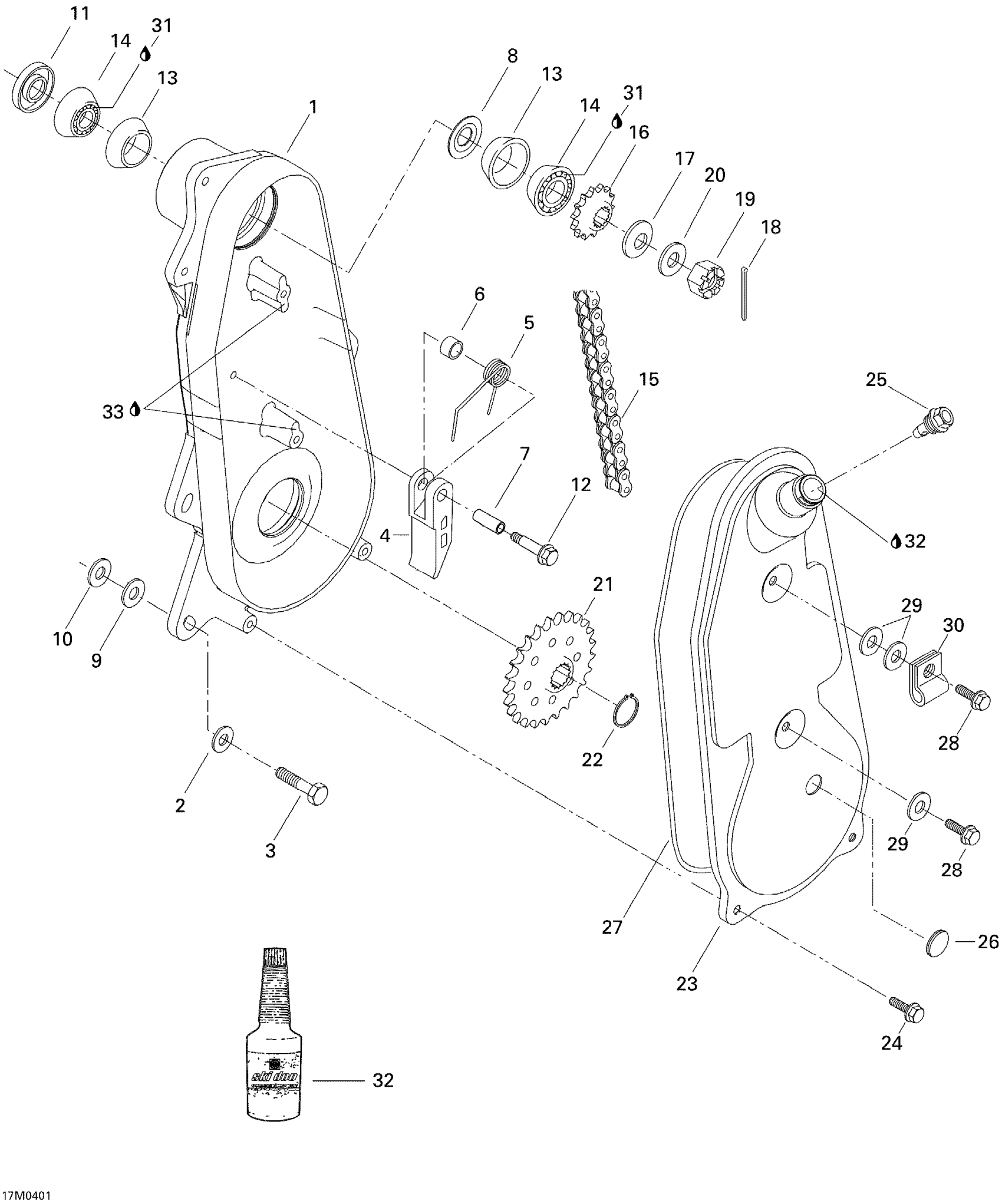

Ski-Doo Tundra R, 2004 05- Chaincase Diagram
#
Description
Price
1
Machined Chain Case
504088000
Unavailable
4
CHAIN TENSIONER - Call your local BRP dealership
572041600
Unavailable
5
Spring
414130600
Unavailable
6
SPACER - Call your local BRP dealership
504018200
Unavailable
7
Spacer
504051600
Unavailable
8
Oil Deflector
504005800
Unavailable
9
WASHER - Call your local BRP dealership
504073700
Unavailable
10
WASHER - Call your local BRP dealership
250200001
Unavailable
12
HEX. SCREW M6 X 40 - Call your local BRP dealership
210264080
Unavailable
13
Cup Bearing
405000300
Unavailable
14
CONE BEARING - Call your local BRP dealership
405000400
Unavailable
15
Driving Chain
412106300
Unavailable
16
SPROCKET 14 TOOTH - Call your local BRP dealership
504088500
Unavailable
17
Washer
414823700
Unavailable
18
COTTER PIN - Call your local BRP dealership
371800800
Unavailable
19
HEX. CASTELLATED NUT M12 - Call your local BRP dealership
232220413
Unavailable
20
Special Washer
504049500
Unavailable
21
Sprocket 25 Tooth
504088600
Unavailable
22
External Circlip
371904900
Unavailable
23
PAINT CHAINCASE COVER - Call your local BRP dealership
504088100
Unavailable
25
Breather
572040600
Unavailable
26
Plug
570040600
Unavailable
27
Seal
570045900
Unavailable
30
CLIP - Call your local BRP dealership
414351600
Unavailable
31
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
32
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
