2003 Ski-Doo Tundra R Pulleys Diagram

← All diagrams

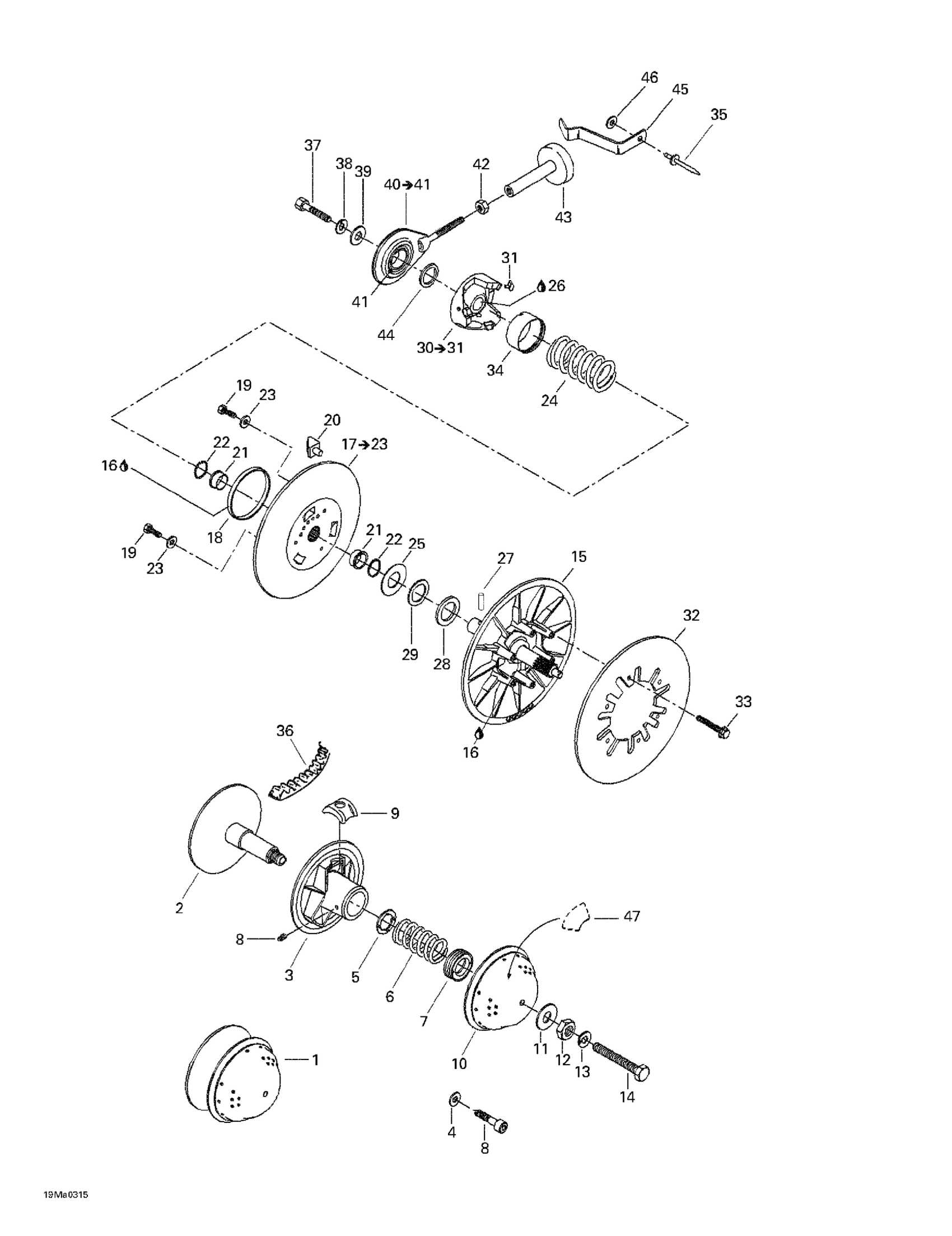

Find the part on the Pulleys diagram for your 2003 Ski-Doo Tundra R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Ski-Doo Tundra R Pulleys Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Not Available As Spare Part - Friction Washer

—
Out of stock

2

INNER FIXED FLANGE - Call your local BRP dealership

417126691

—
Out of stock

3

SLIDING FLANGE - Call your local BRP dealership

417126693

—
Out of stock

4

WASHER - Call your local BRP dealership

420245370

—
Out of stock

5

SPRING SEAT - Call your local BRP dealership

417126694

—
Out of stock

6

CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership

414817500

—
Out of stock

7

SPRING COVER - Call your local BRP dealership

417126622

—
Out of stock

8

Socket Screw M6 X 40

205064086

—
Out of stock

9

Unit Block

417126695

—
Out of stock

10

CAP - Call your local BRP dealership

417126697

—
Out of stock

11

Washer

417122400

—
Out of stock

12

—

$23.05

In stock

13

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

—
Out of stock

14

—

$10.17

In stock

15

Fixed Flange Ass'y

417124500

—
Out of stock

16

Loctite 609, 10 ml

413703100

1
Out of stock

17

Sliding Flange Ass'y

417126702

—
Out of stock

18

BUSHING - Call your local BRP dealership

417126397

—
Out of stock

20

BACK UP CAM SHOE - Call your local BRP dealership

415099400

—
Out of stock

21

Not Available As Spare Part - Friction Washer

—
Out of stock

22

Retaining Ring

371911100

—
Out of stock

23

Flat Washer

399910000

—
Out of stock

24

Release Spring

415094300

—
Out of stock

25

Thrust Washer

504150400

—
Out of stock

26

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

—
Out of stock

27

DOWEL PIN - Call your local BRP dealership

372900500

—
Out of stock

28

Shim

504112000

1
Out of stock

29

SHIM - Call your local BRP dealership

504108200

—
Out of stock

30

Outer Cam Ass'y

417126350

—
Out of stock

31

Slide Cam Shoe

415094400

—
Out of stock

32

BRAKE DISK - Call your local BRP dealership

507032100

—
Out of stock

33

6

$1.22

In stock

34

Protector

417126349

—
Out of stock

35

RIVET_POP 1/8 - Call your local BRP dealership

390402500

—
Out of stock

36

Drive Belt

414827600

1
Out of stock

37

Hex. Screw M8 x 16

207181644

1

$0.87

In stock

38

Lock Washer 8 mm

234181401

1
Out of stock

39

WASHER - Call your local BRP dealership

517078700

—
Out of stock

40

Support Ass'y

580593000

—
Out of stock

41

BALL BEARING - Call your local BRP dealership

405401000

—
Out of stock

42

Hex. Nut M8

232081414

1
Out of stock

43

Rod Retainer

570028300

—
Out of stock

44

Spacer

504003900

—
Out of stock

45

SPRING - Call your local BRP dealership

414831800

—
Out of stock

46

Flat Washer | Not shown

391300800

1
Out of stock

47

Security Label

516001247

—
Out of stock
