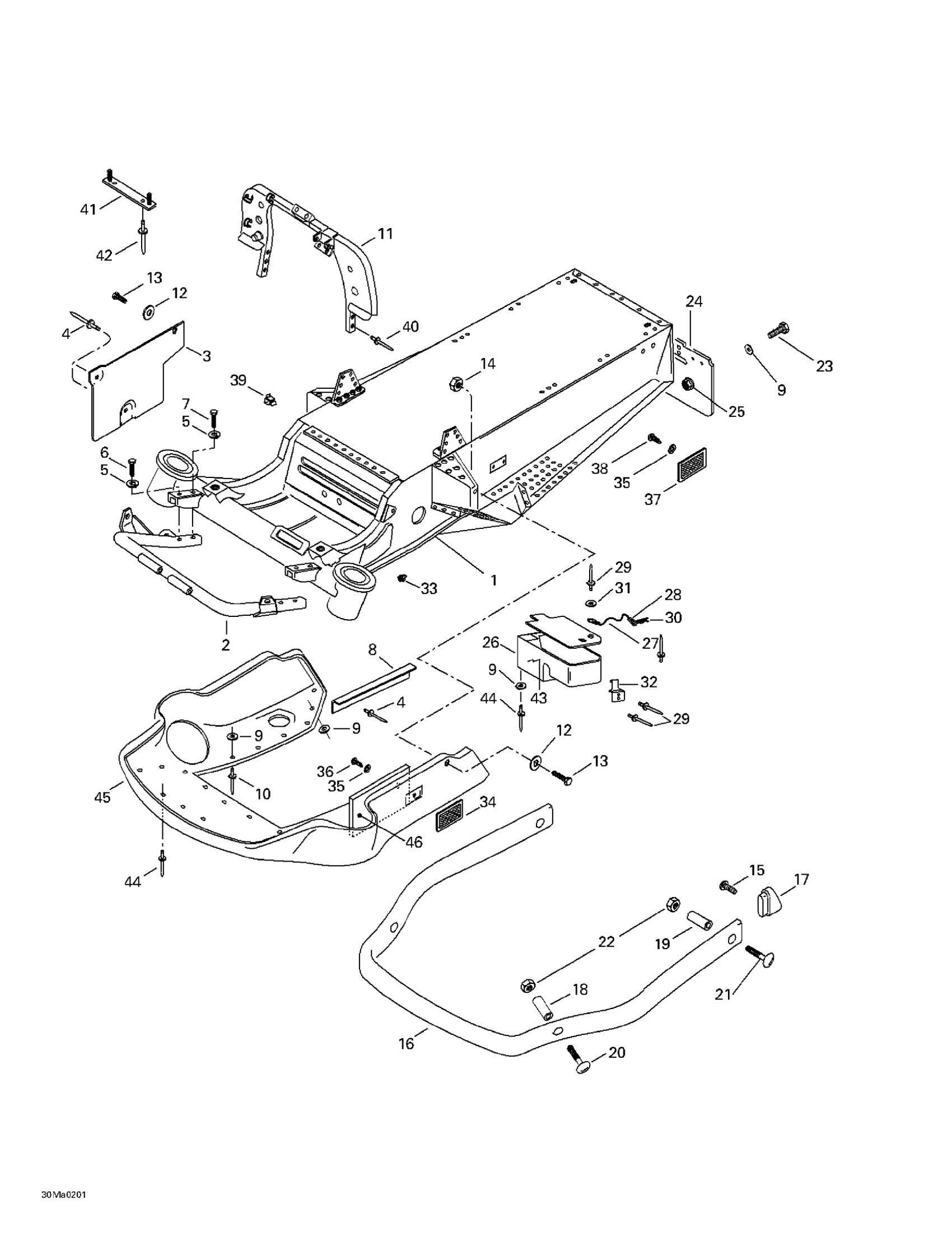

Ski-Doo Tundra R, 2002 09- Frame And Body Diagram

#

Description
Price

1

Frame

518323484

Unavailable

2

Welded Front Bumper

518320200

Unavailable

3

Heat Shield

517299300

Unavailable

4

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

5

Lock Washer M6, Black

234161471

$0.53

6

Hex. Flange Screw M6 X 35

207063544

$1.37

7

Hex. Screw M6 X 25

207162544

$1.15

8

Paint Reinforcement

517259200

Unavailable

9

Washer

517124300

$0.19

10

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

11

Upper Column Support

518320300

Unavailable

12

Flat Washer

224061121

$0.53

13

Hex. Screw M6 X 16

207161644

$0.74

14

Elastic Stop Nut M6

232561414

$0.55

15

TAPPING SCREW M4.2X9.5 - Call your local BRP dealership

209640940

Unavailable

16

Bumper

517248810

Unavailable

17

Bumper Cap

572039300

Unavailable

18

BUSHING - Call your local BRP dealership | TROUSSE

517250600

Unavailable

19

Bushing | TROUSSE

517250700

Unavailable

20

Carriage Bolt M8 X 75

207787541

Unavailable

21

Carriage Bolt M6 X 55 This part replaces 207785541.

207765544

$3.91

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

Hex. Screw M5 X 20

207152044

$0.90

24

Snow Guard

572013800

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

$1.04

26

Tool Box

414624900

Unavailable

27

Wire

414407400

Unavailable

28

Terminal Ring

561502800

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Hair Pin

414575600

$1.89

31

WASHER - Call your local BRP dealership

391301000

$0.70

32

Latch

517168500

Unavailable

33

Grease Fitting

408200700

$3.49

34

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

35

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

36

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

37

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

38

PHILLIPS HEAD SCREW M5 X 8 - Call your local BRP dealership

208650841

Unavailable

39

Clip

414227300

$1.67

40

Pop Rivet

390411300

Unavailable

41

Retainer Plate

517278800

Unavailable

42

Pop Rivet 3/16"

390402400

$0.35

43

Tool Kit

529034300

Unavailable

Socket Wrench 21/26 mm

529014800

Unavailable

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

Socket Wrench 10/13 mm

529014900

$0.94

Was 412500100 Rope-Starter

219704403

$158.99

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

MULTI-WRENCH - Call your local BRP dealership

529014700

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

BELT TOOL - Call your local BRP dealership

529034200

Unavailable

44

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

45

Bottom Pan

502006587

Unavailable

46

Side Foam

502006541

Unavailable
