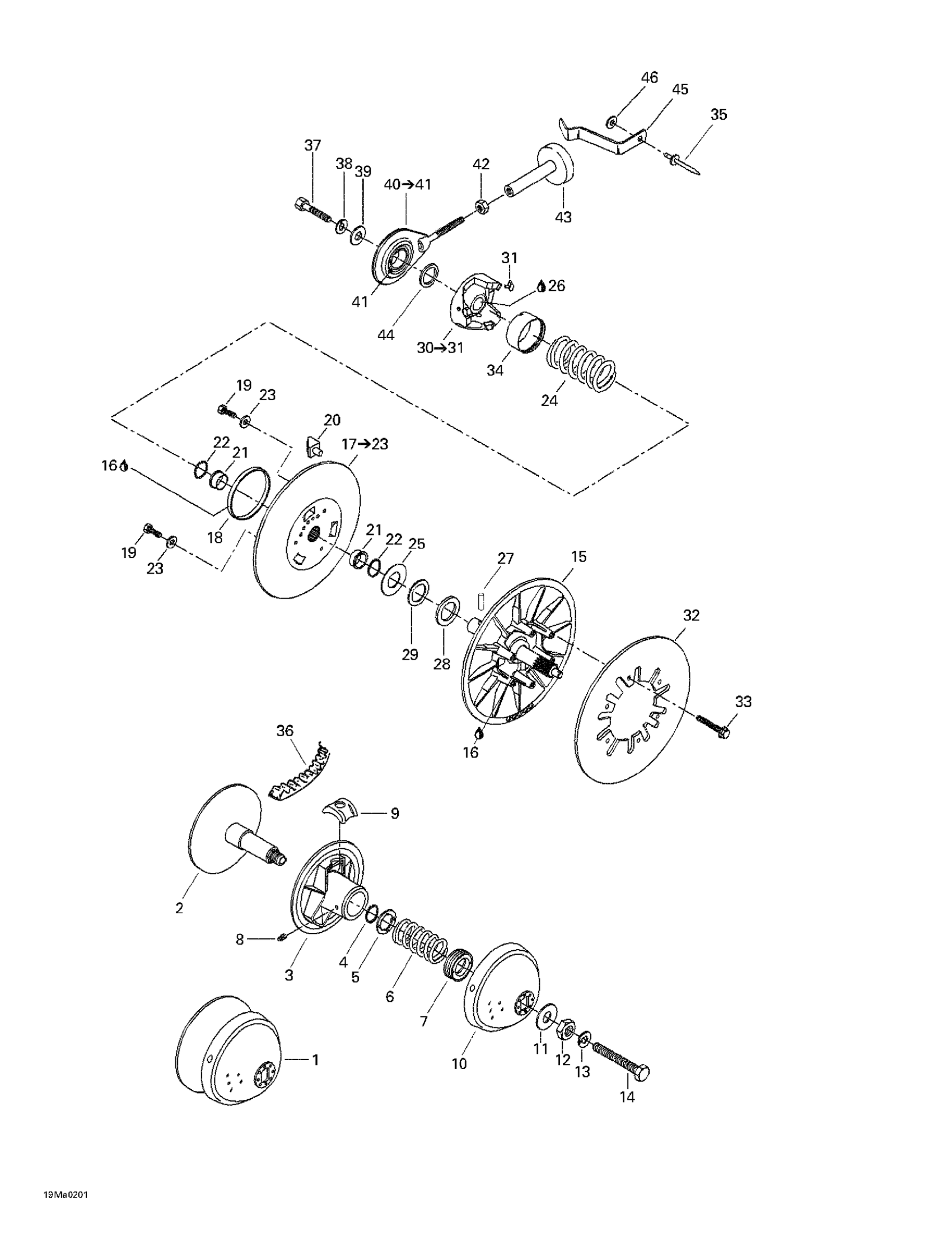

Ski-Doo Tundra R, 2002 05- Pulleys Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Inner Half Flange
417222506
Unavailable
3
Outer Flange
417126627
Unavailable
4
Circlip
417116100
Unavailable
5
Guide Washer | 380 F.
417116200
Unavailable
6
Spring
417115900
Unavailable
7
Bushing Support
417117300
Unavailable
8
Locking Screw
417116800
Unavailable
9
Centrifugal Block
417222285
Unavailable
10
Cap
417125200
Unavailable
11
Retainer Washer
417116500
Unavailable
12
NUT - Call your local BRP dealership
417118300
Unavailable
13
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership
392002800
Unavailable
14
BOLT - Call your local BRP dealership
417113800
Unavailable
15
Fixed Flange Ass'y
417124500
Unavailable
17
Sliding Flange Ass'y | Includes 17 - 23.
417126395
Unavailable
18
BUSHING - Call your local BRP dealership
417126397
Unavailable
19
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
210251180
Unavailable
20
BACK UP CAM SHOE - Call your local BRP dealership
415099400
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Retaining Ring
371911100
Unavailable
23
Flat Washer
399910000
Unavailable
24
Release Spring
415094300
Unavailable
25
Thrust Washer
504150400
Unavailable
26
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
27
DOWEL PIN - Call your local BRP dealership
372900500
Unavailable
29
SHIM - Call your local BRP dealership
504108200
Unavailable
30
Outer Cam Ass'y
417126350
Unavailable
31
Slide Cam Shoe
415094400
Unavailable
32
BRAKE DISK - Call your local BRP dealership
507032100
Unavailable
34
Protector
417126349
Unavailable
35
RIVET_POP 1/8 - Call your local BRP dealership
390402500
Unavailable
39
WASHER - Call your local BRP dealership
517078700
Unavailable
40
Support Ass'y
580593000
Unavailable
41
BALL BEARING - Call your local BRP dealership
405401000
Unavailable
43
Rod Retainer
570028300
Unavailable
44
Spacer
504003900
Unavailable
45
SPRING - Call your local BRP dealership
414831800
Unavailable
