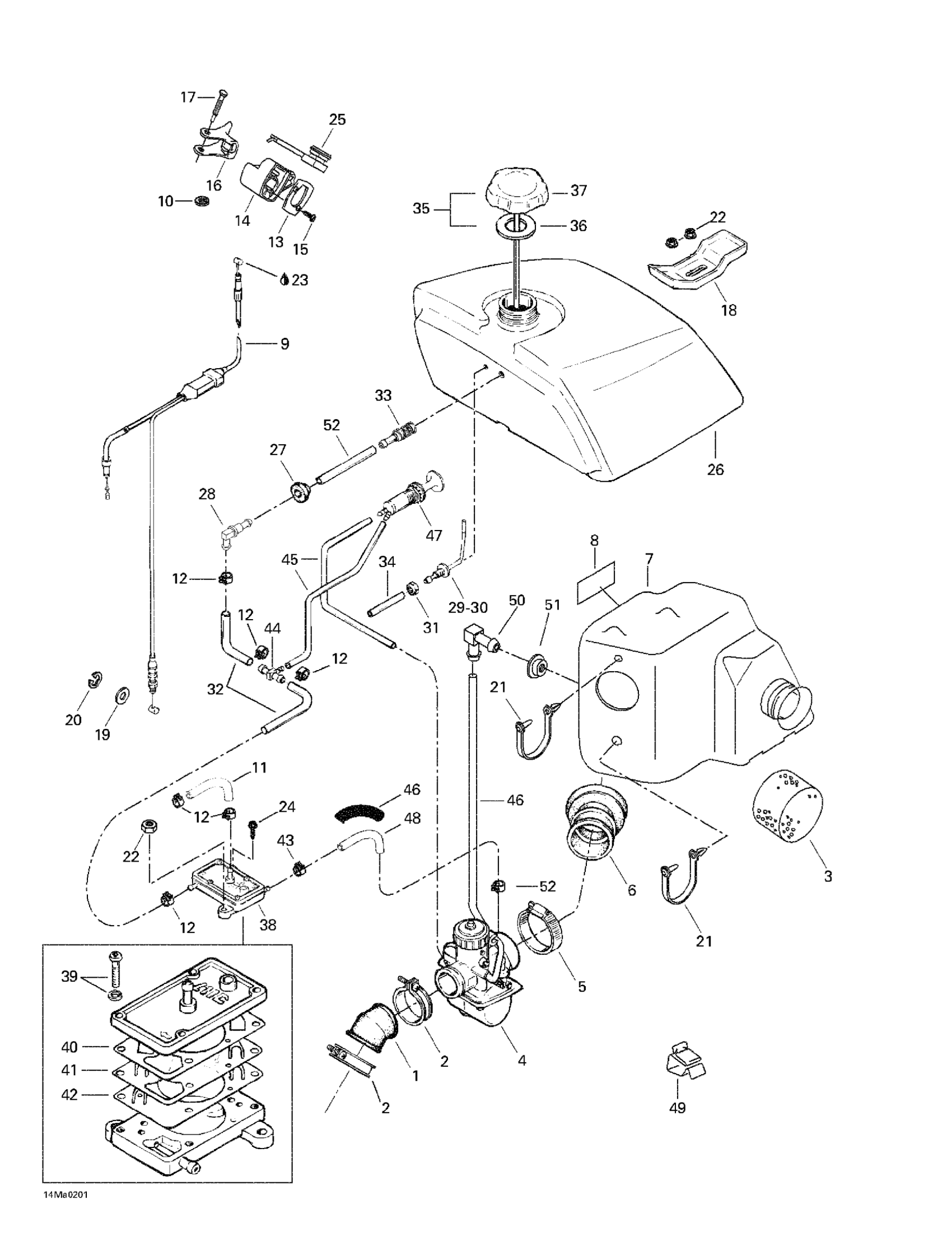

Ski-Doo Tundra R, 2002 Fuel System Diagram

#

Description
Price

1

Rubber Flanged

570025400

$62.49

2

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

3

Air Filter

414819900

Unavailable

4

Carburetor VM 34-551

403138598

Unavailable

5

Tridon Gear Clamp

408802000

Unavailable

6

Carburetor Adaptor

570136300

$35.99

7

Air Intake

508000279

Unavailable

8

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

9

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

512059040

Unavailable

10

Circlip

293370020

Unavailable

11

Hose

219704549

$50.99

12

Spring Clamp

414415200

$0.88

13

Cap

572066200

Unavailable

14

Throttle Handle Housing

572065400

Unavailable

15

Plastite Screw M3 x 16

243231640

Unavailable

16

Throttle Handle

512059053

Unavailable

17

Pin

414242700

Unavailable

18

Bracket Seat-tank

517159500

Unavailable

19

Flat Washer 8 mm, Nylon

234081100

$1.39

20

Circlip

414753500

$0.71

21

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

24

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

25

Kill Switch

515175409

Unavailable

26

Fuel Tank

513032960

Unavailable

27

Grommet

709200285

$9.69

28

Elbow Male Connector

414580600

$4.23

29

Vent Fitting | Includes Items 4 to 6

513031100

Unavailable

30

Fitting

513031701

Unavailable

31

HEX. NUT 5/16-18 YIC - Call your local BRP dealership

396302200

Unavailable

32

Hose

219704549

$50.99

33

Fuel Filter

414865700

$10.99

34

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

35

Fuel Tank Cap

513033025

$24.49

36

Fuel Tank Cap

513033025

$24.49

37

Fuel Tank Cap

513033025

$24.49

38

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

$84.99

39

Screw

404118500

Unavailable

40

Packing (Cap)

404901600

Unavailable

41

Diaphragm

404901700

Unavailable

42

Membrane

404901800

Unavailable

43

Spring Clamp

414415200

$0.88

44

T-fitting

414222500

$1.69

45

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

46

Air Vent Tube

404161802

Unavailable

47

Primer

415060500

$34.99

48

Hose

219704549

$50.99

49

Clip

414227300

$1.67

50

Male Connector

414814100

$2.22

51

Grommet

513032908

$10.49

52

Spring Clamp

513033014

Unavailable

53

Hose

414110000

Unavailable
