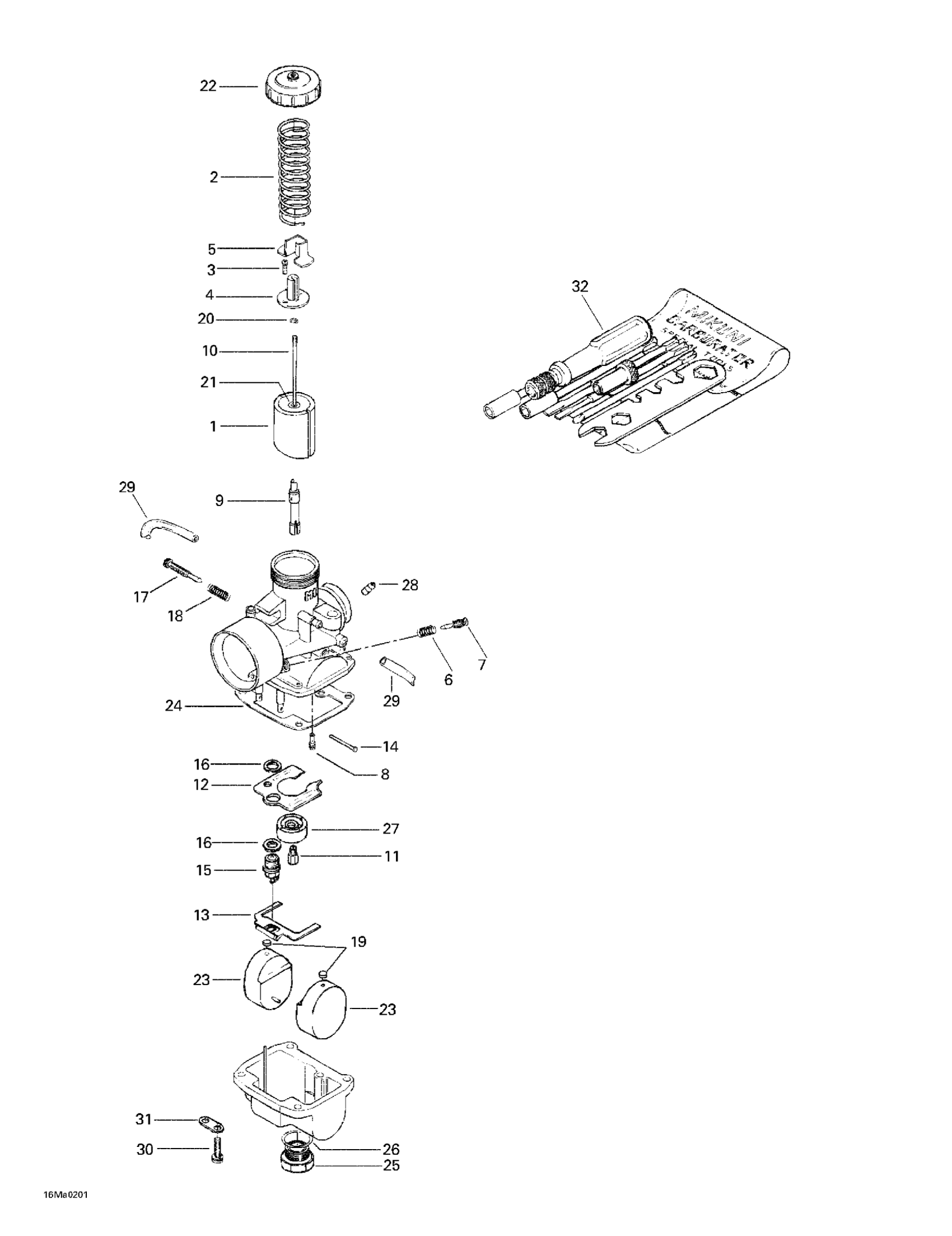

Ski-Doo Tundra R, 2002 02- Carburetor Diagram

#

Description
Price

1

Carburetor VM 34-551 | Includes 1 - 32.

403138725

Unavailable

1

Piston Valve 2.5

404128400

$127.49

2

Throttle Valve Spring

404152700

Unavailable

3

Screw With Washer

404121300

$4.14

4

Packing

404161987

$15.35

5

Cover

404122100

$19.49

6

Spring

404101800

$4.25

7

Air Screw

404102300

$14.35

8

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

9

Needle Jet

404116900

Unavailable

10

NEEDLE JET J8-6DH04 - Call your local BRP dealership

404101900

Unavailable

11

Main Jet MJ 200

404112300

$5.21

12

BAFFLE - Call your local BRP dealership

404109600

Unavailable

13

Float Lever

404107600

$22.99

14

Lever Pin

404103300

$6.27

15

Needle Valve 1.5

404147400

$42.49

16

Seat Washer

404101600

$3.29

17

Throttle Screw

404148700

Unavailable

18

Spring

404101700

$4.14

19

Cap

404105800

$6.38

20

E-Ring

404152400

$7.27

21

Packing

404117000

$3.29

22

Cover

404103700

$31.99

23

FLOAT - Call your local BRP dealership

404107100

Unavailable

24

Gasket | Includes 1900a to 1900am

404104200

$6.38

25

Drain Plug Screw

404107400

$22.99

26

O-Ring

404107300

$9.06

27

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

28

NIPPLE - Call your local BRP dealership

404127600

Unavailable

29

Air Vent Tube

404161802

Unavailable

30

Screw With Lock Washer

404102000

$3.18

31

PLATE - Call your local BRP dealership

404103000

Unavailable

32

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

33

Hight Altitude Kit, not Shown

861768900

Unavailable
