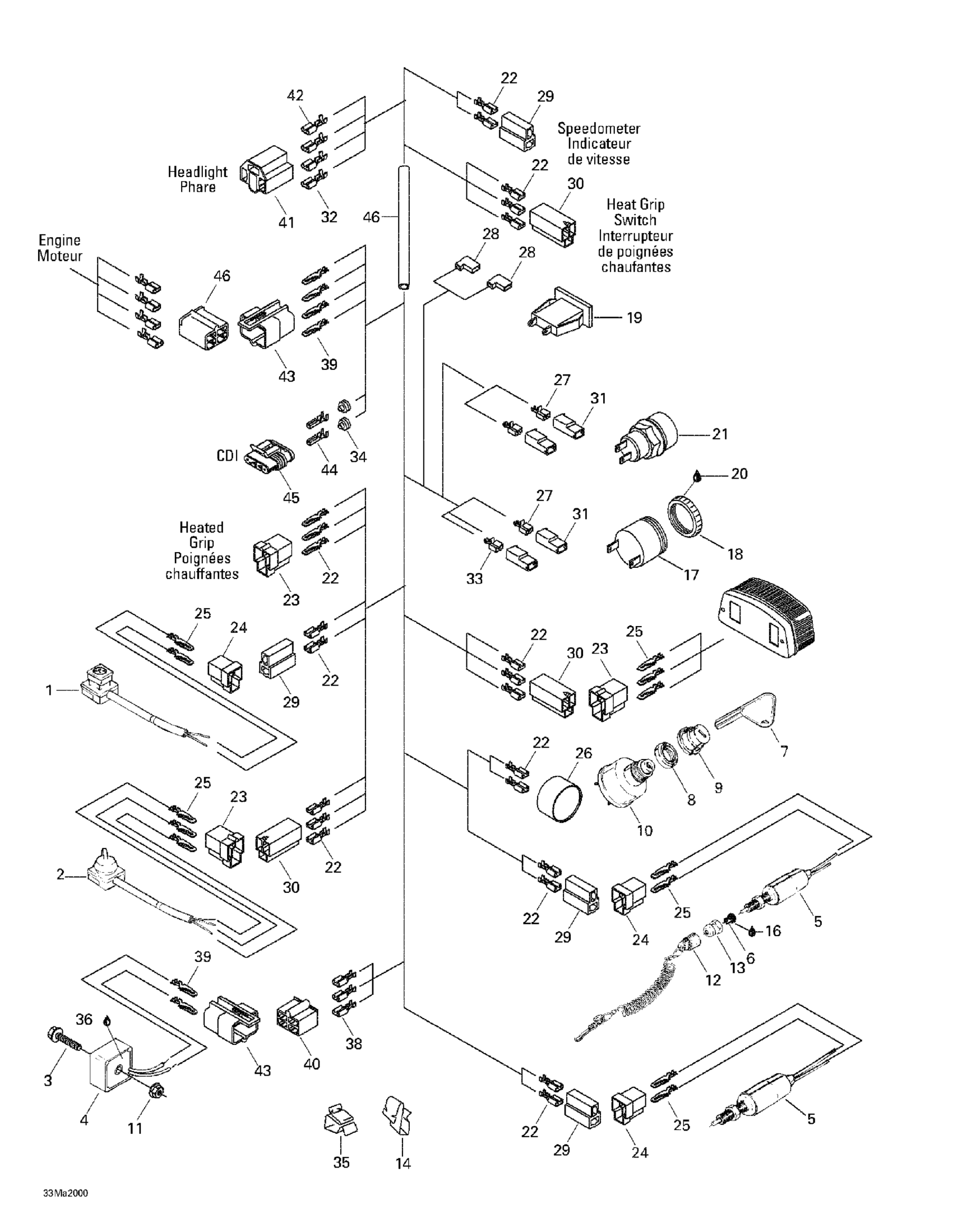

Ski-Doo Tundra R, 2000 10- Electrical System Diagram

#

Description
Price

1

Kill Switch

515175409

Unavailable

2

Dimmer Switch

410213000

Unavailable

3

Hex. Flange Screw M6 X 35

207063544

$1.37

4

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

5

Brake Switch

515175653

$19.49

6

Plunger Cap

570151100

$9.85

7

Blank Key

415129350

$26.49

8

Switch Boot

570013700

$11.49

9

FACE NUT - Call your local BRP dealership

410112100

Unavailable

10

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Cap Ass'y

515178283

$38.99

13

Switch Nut

515145900

$12.12

14

Clip

414095100

Unavailable

15

Tie-Rap 180 mm

414115200

$0.11

16

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

17

HORN - Call your local BRP dealership

515176035

Unavailable

18

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

19

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

20

Silicone Sealant 51388, 300 ml

296000309

$36.99

21

Push Button

415130372

$122.49

22

Female Terminal

561503100

$2.41

23

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

24

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

25

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

26

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

27

Female Terminal

409010100

$5.61

28

Female Terminal

409010300

$4.39

29

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

30

Female Housing

409204300

Unavailable

31

Female Terminal Housing, 1 Circuit

409010400

$7.62

32

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

33

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

34

Wire Seal

278001013

$3.28

35

Clip

414227300

$1.67

36

Grease Tube Lmz, 400 G

413707500

Unavailable

37

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

38

Female Terminal (18/16 gauge)

409205100

Unavailable

39

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

40

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

41

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

42

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

43

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

44

Female Terminal

278001014

$3.28

45

Female Housing, 4 Circuits

409209700

$16.18

46

Was 409901700 Tubing (9 mm)

219704399

$84.99
