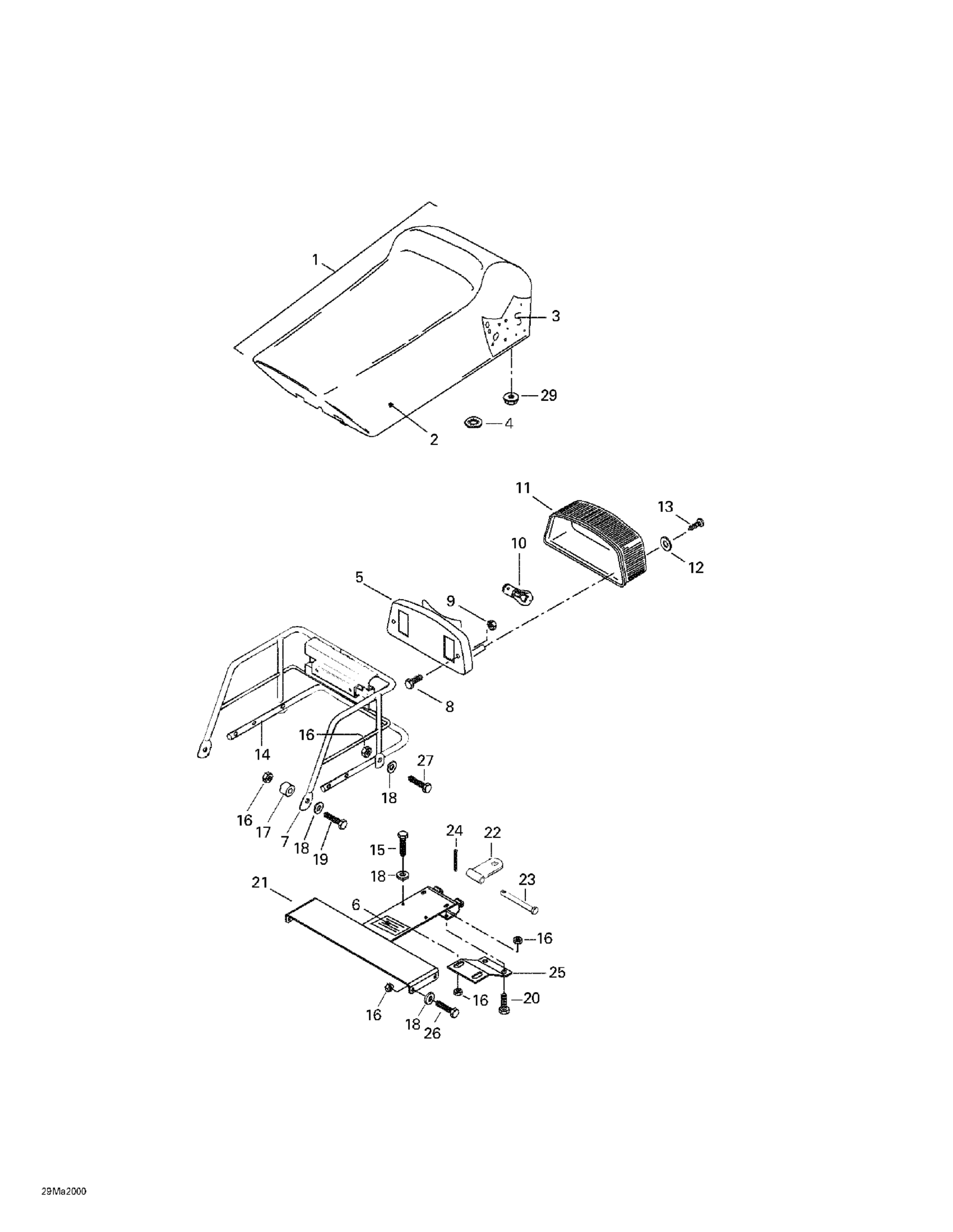

Ski-Doo Tundra R, 2000 09- Frame And Body Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover

511003657

Unavailable

3

Seat Foam

414737100

Unavailable

4

Push Nut

732610072

$2.19

5

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

6

Instruction Label (Hitch)

414998500

Unavailable

7

Paint Rack

517191500

Unavailable

8

Hex. Screw M5 X 30

207053044

$1.16

9

Hex. Flange Elastic Nut M5

233251414

$1.04

10

Bulb

520000758

$9.10

11

Lens

414513700

$28.99

12

Washer - Call your local BRP dealership

414516400

Unavailable

13

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

14

Rear Bumper

517170700

Unavailable

15

Hex. Screw M6 X 25

207162544

$1.15

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Spacer

517185600

Unavailable

18

Flat Washer

224061121

$0.53

19

Hex. Flange Screw M6 X 35

207063544

$1.37

20

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

21

Paint Hitch

517200600

Unavailable

22

Hitch Plate Welded

511000521

$16.33

23

CLEVIS PIN - Call your local BRP dealership

505001700

Unavailable

24

Cotter Pin

371800200

$0.53

25

Paint Reinforcement

517217800

Unavailable

26

Hex. Screw M6 X 40

207064044

$1.48

27

Hex. Screw M6 X 60

207066044

$0.67

28

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
