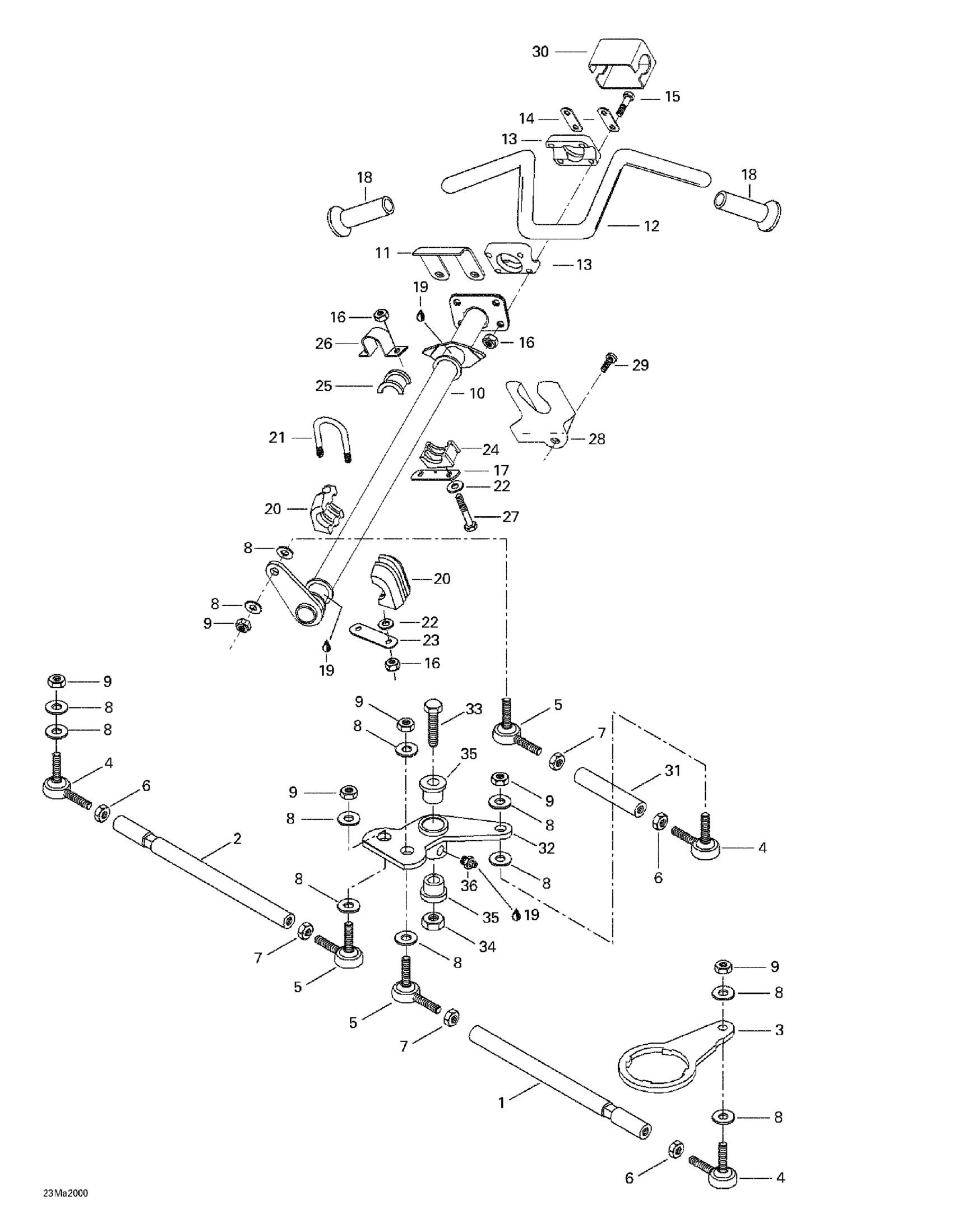

Ski-Doo Tundra R, 2000 07- Steering System Diagram

#

Description
Price

1

Tie Rod

506113300

Unavailable

2

Tie Rod

506113400

Unavailable

3

Steering Arm

506148900

Unavailable

4

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

5

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

6

RH Threaded Hex. Jam Nut M10

732610010

$0.74

7

LH Threaded Hex. Jam Nut M10

250100016

$0.74

8

Washer

503175800

$3.28

9

Elastic Flange Nut M10

232501416

$1.48

10

Steering Main Tube Paint

506149700

Unavailable

11

Retainer Support

517224200

Unavailable

12

Handlebar

506115900

Unavailable

13

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

14

Stiffner

709400509

$4.69

15

Hex. Screw M8 X 55

207085544

$1.68

16

Hex. Elastic Stop Nut M8

232581414

$0.56

17

Paint Plate

506149500

Unavailable

18

RH Grip 6-1/2"

506151530

$16.49

19

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

20

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

21

U-clamp | X

506060600

$17.80

22

Flat Washer 8 mm

234081410

$0.83

23

Lock Tab

517134700

Unavailable

24

Bushing

572064400

Unavailable

25

BUSHING - Call your local BRP dealership

572064500

Unavailable

26

Retainer Support

517126200

Unavailable

27

Hex. Screw M8 X 20

207182044

$0.74

28

PAINT PLATE - Call your local BRP dealership

517262000

Unavailable

29

Phillips Screw 8x1/2"

364901600

Unavailable

30

Cover

506151288

Unavailable

31

Tie Rod

506149800

Unavailable

32

Welded Idler Arm

506118000

Unavailable

33

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

34

Elastic Locking Nut M10 X 1.5

233601416

$1.69

35

CUSHION - Call your local BRP dealership

414530000

Unavailable

36

Grease Fitting

408200700

$3.49
