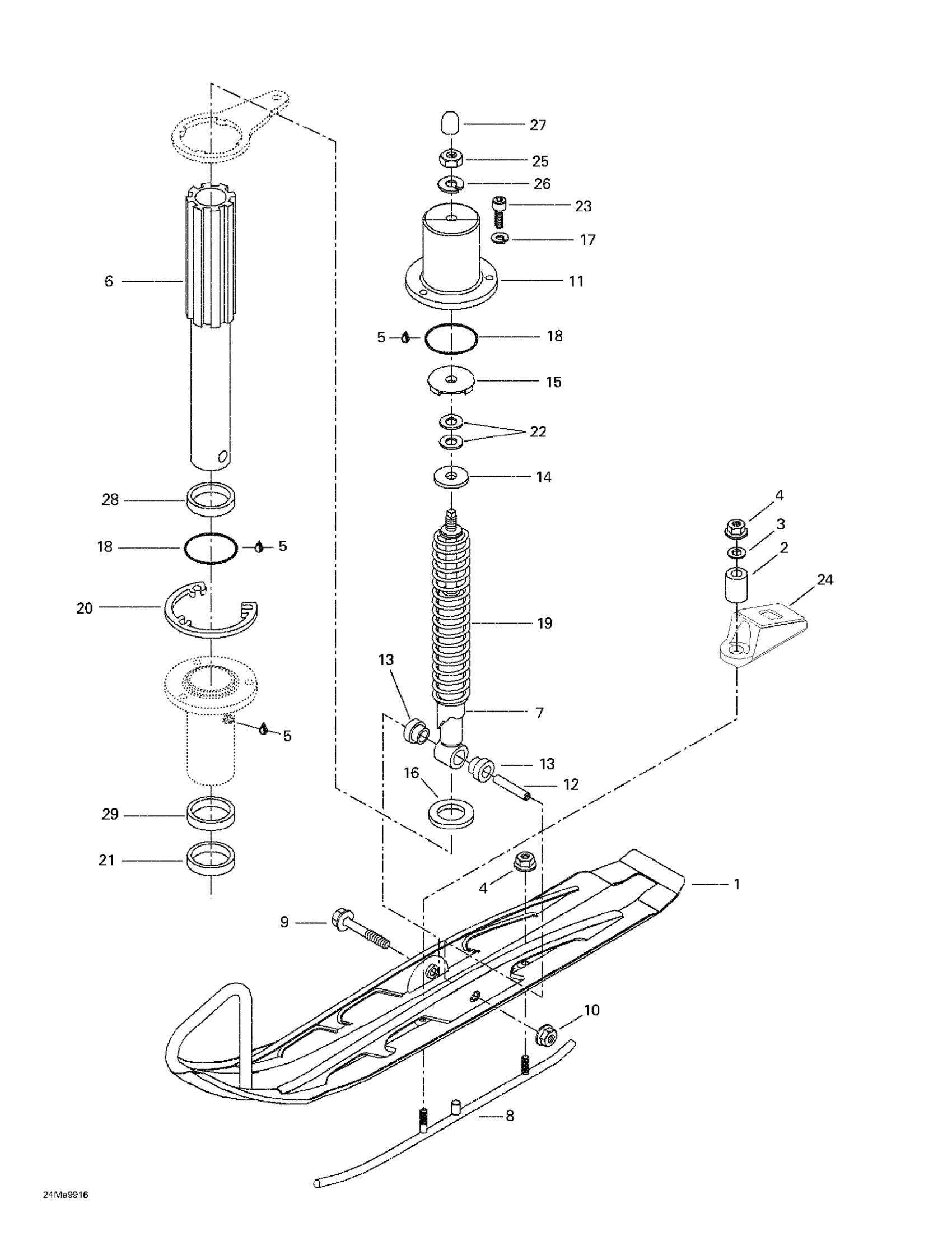

Ski-Doo Tundra R, 1999 07- Front Suspension And Ski Diagram

#

Description
Price

1

PAINT SKI - Call your local BRP dealership

505070203

Unavailable

2

BUSHING - Call your local BRP dealership

506117300

Unavailable

3

Flat Washer 8 mm

234082410

$1.47

4

Hex. Elastic Stop Nut M8

232581414

$0.56

5

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

6

Ski Leg

506121700

Unavailable

7

SHOCK - Call your local BRP dealership

505070014

Unavailable

SHOCK - Call your local BRP dealership

414803600

Unavailable

8

Wekded Ski Runner

505070264

Unavailable

9

Hex. Screw M10 x 110

732601004

Unavailable

10

Elastic Locking Nut M10 X 1.5

233601416

$1.69

11

Paint Cover

518203200

Unavailable

12

Bushing

503156400

Unavailable

13

Cushion

572034500

$12.58

14

Washer

518203400

Unavailable

15

Stopper

570025800

$14.99

16

WASHER - Call your local BRP dealership

505070192

Unavailable

Washer | Tundra.

518204700

Unavailable

17

Lock Washer 8 mm

234181401

$0.92

18

O-Ring

414811400

$7.06

19

Black Spring

505070130

Unavailable

Spring | Tundra.

415095200

Unavailable

20

SPACER - Call your local BRP dealership

503145600

Unavailable

21

Seal Oil

505072696

$45.99

22

Flat Washer 10 mm

234001410

$1.26

23

Socket Head Screw M8 X 20

205082044

$1.15

24

Stopper

505070230

Unavailable

25

Hex. Nut M10 X 1.5

232006414

$1.37

26

Lock Washer 10 mm

224701170

Unavailable

27

Cap

414877100

Unavailable

28

Upper Cushion

414803100

$10.49

29

Lower Cushion

414803200

$14.68
