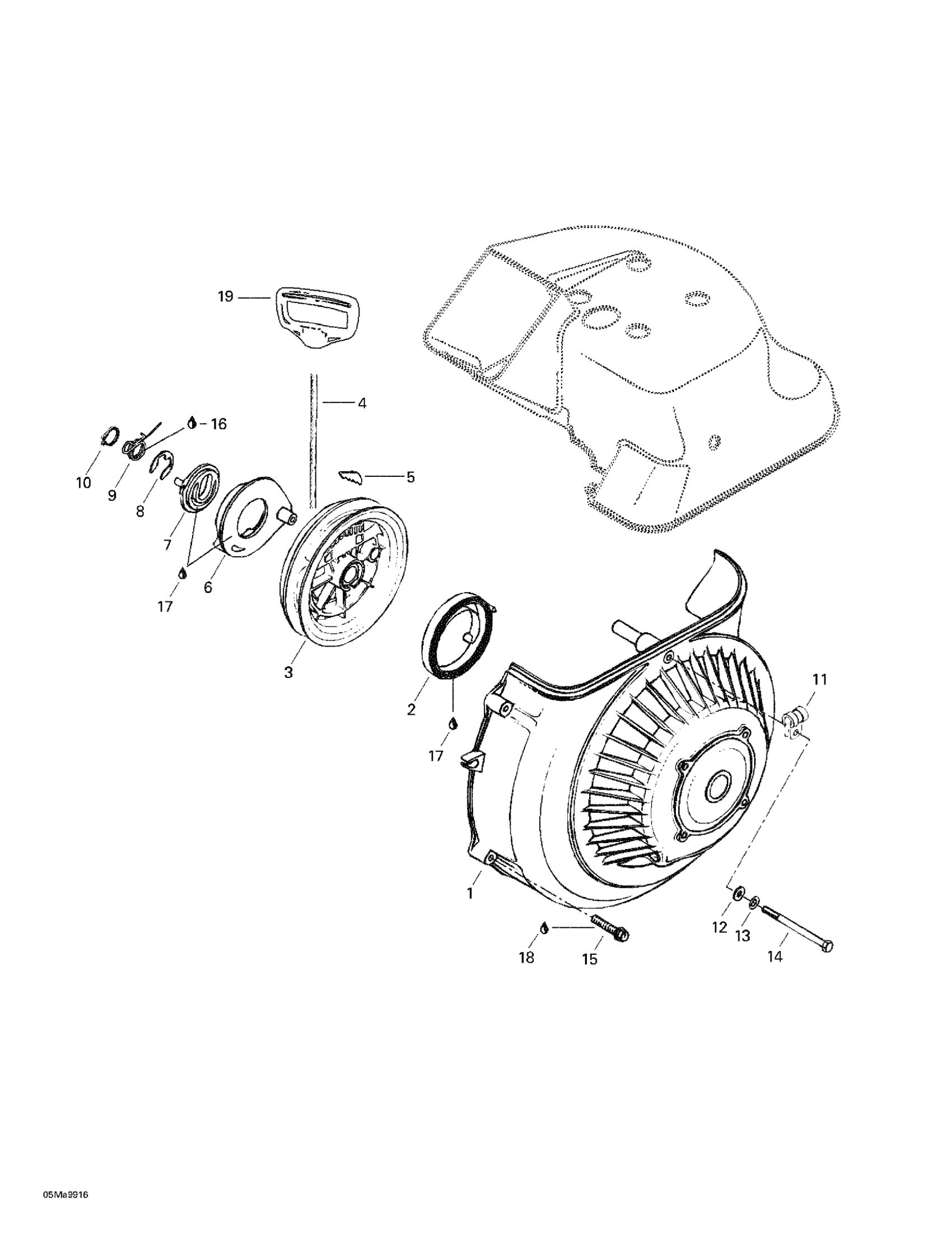

Ski-Doo Tundra R, 1999 04- Rewind Starter Diagram

#

Description
Price

1

Demar.Rappel *Starter-Rewind This part replaces 420889825.

420889823

$307.49

1

Demar.Rappel *Starter-Rewind This part replaces 420889825.

420889823

$307.49

2

Rewind Spring

420939115

$30.49

3

Rope Sheave

420852283

$62.49

4

Was 412500100 Rope-Starter

219704403

$158.99

5

Key Clamp

420852070

$4.23

6

Pawl

420852296

$20.99

7

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

8

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

9

Pawl Spring

420938986

$9.27

10

LOCK RING - Call your local BRP dealership

420945770

Unavailable

11

GEAR CLAMP - Call your local BRP dealership

420851240

Unavailable

12

Flat Washer

224061121

$0.53

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Screw M6 x 75

222067565

Unavailable

15

TAPPING SCREW M6 X 35 - Call your local BRP dealership

420640411

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

Loctite 243, 10 ml

293800060

$21.49

19

Starter Grip

572084400

$14.83
