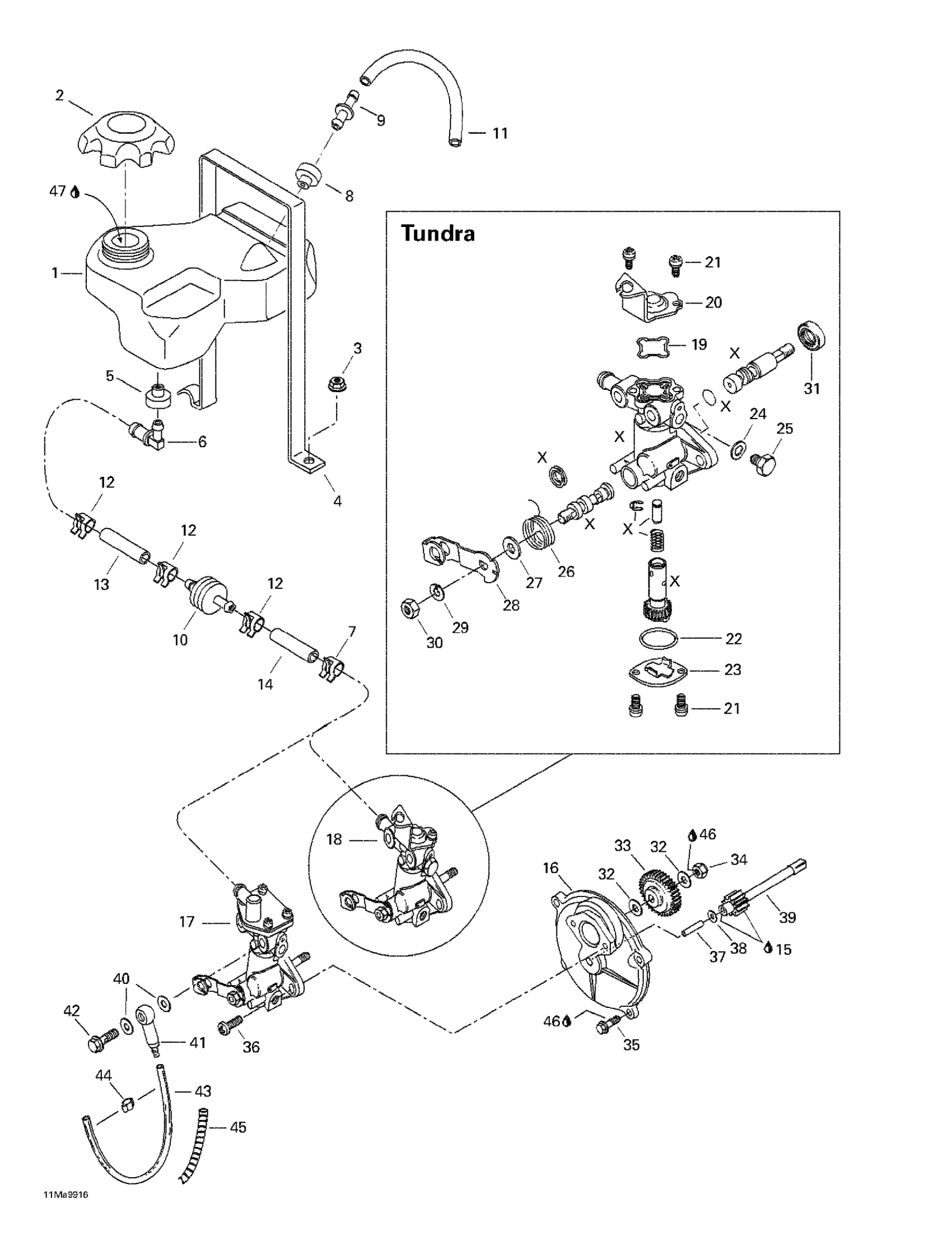

Ski-Doo Tundra R, 1999 02- Oil Injection System Diagram

#

Description
Price

1

Injection Oil Tank

571008600

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Retainer Strip

517263400

Unavailable

5

Grommet

709200285

$9.69

6

Elbow Fitting 90 Deg

414650200

Unavailable

7

Spring Clamp

414420700

$0.72

8

GROMMET - Call your local BRP dealership

570027700

Unavailable

9

Check Valve

275500398

$10.99

10

Filter

414536500

$4.02

11

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

12

Spring Clamp

414415200

$0.88

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

15

Dow Corning 111, 150 g

413707000

$59.99

16

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

Oil Mounting Flange | Tundra.

420910165

Unavailable

17

Oil Pump Ass'y

404046100

Unavailable

18

Oil Pump Ass'y | Includes 18 - 31. Tundra.

404045900

Unavailable

19

O-Ring | Tundra.

420230477

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Screw with Lock Washer | Tundra.

420841620

Unavailable

22

O-Ring

420230370

Unavailable

23

Cam Casing Plate | Tundra.

420256077

Unavailable

24

GASKET - Call your local BRP dealership

420227505

Unavailable

25

Hex. Screw M6 X 8

420841580

$1.15

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Control Lever | Tundra.

404146500

Unavailable

29

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

30

Hex. Nut M6 | Tundra.

420242621

Unavailable

31

Oil Seal | Tundra.

404157800

Unavailable

32

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

33

Oil Pump Gear, 27 Teeth

420935930

$16.33

34

Elastic Stop Nut M6

232561414

$0.55

35

SCREW - Call your local BRP dealership

420841976

Unavailable

36

Screw

420841971

$2.96

37

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

38

Flat Washer 4

420244072

$1.01

39

GEAR, 9 TEETH - Call your local BRP dealership

420935975

Unavailable

40

Sealing Washer

404146600

$2.97

41

Valve Ass’Y

420956010

$17.53

42

Banjo Bolt M6 X 16

404146800

Unavailable

43

Oil Hose 1500Mm Long

219704404

$17.26

Oil Line | Tundra.

420960047

Unavailable

44

Clamp

420853840

$4.44

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Loctite 243, 10 ml

293800060

$21.49

47

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable
