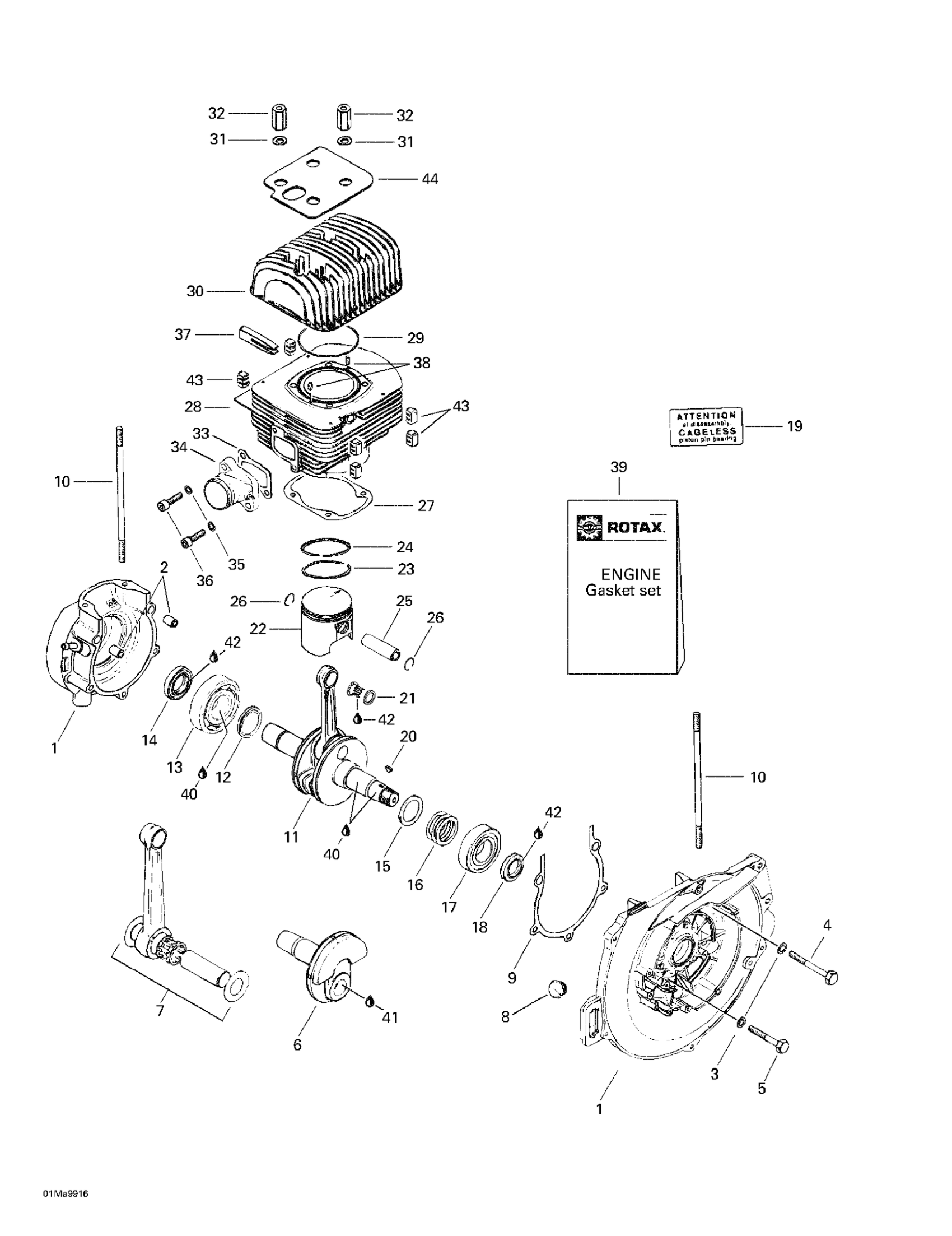

Ski-Doo Tundra R, 1999 01- Crankcase And Cylinder Diagram

#

Description
Price

1

Crankcase Ass'y | 1 to 5

420886709

Unavailable

2

DOWEL - Call your local BRP dealership

420229150

Unavailable

3

Washer-Lock Din.128

420945832

$1.15

4

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

5

Hex. Screw M8 X 55

207085544

$1.68

6

PTO CRANKSHAFT - Call your local BRP dealership

420919951

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Cable Grommet

420860962

$13.16

9

GASKET CRANKCASE - Call your local BRP dealership

420850060

Unavailable

10

STUD M8 X 175 - Call your local BRP dealership

420840620

Unavailable

11

Crankshaft

420995301

Unavailable

12

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

13

BALL BEARING - Call your local BRP dealership

420932571

Unavailable

14

Oil Seal

420850050

$18.49

15

SPACER RING - Call your local BRP dealership This part replaces 420827440.

420827441

Unavailable

16

SHIM 0.3 - Call your local BRP dealership

420944582

Unavailable

SHIM 0.1 - Call your local BRP dealership

420944583

Unavailable

Shim 0.5

420944584

$4.12

SHIM 0.2 - Call your local BRP dealership

420944586

Unavailable

17

Ball Bearing

420932581

Unavailable

18

Oil Seal

420230425

$17.39

19

Cageless Label

420897280

Unavailable

20

Woodruff Key

420246055

$2.43

21

Needle Bearing

420832320

$30.49

22

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

$169.99

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

$169.99

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

$154.49

23

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

Unavailable

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

Unavailable

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

24

SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership

420815200

Unavailable

SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership

420815201

Unavailable

SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership

420815202

Unavailable

25

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

26

Piston Circlip

420945735

$4.46

27

Gasket 0.4 mm

420831858

$13.16

28

Cylinder with Sleeve

420913218

Unavailable

29

O-Ring This part replaces 420850540.

293300026

$3.39

30

Cylinder Head

420823789

Unavailable

31

Flat Washer 8.4 mm

420250315

$1.15

32

DISTANCE NUT M8 X 27.5 - Call your local BRP dealership

420842010

Unavailable

33

INTAKE GASKET - Call your local BRP dealership

420831861

Unavailable

34

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

35

Washer-Lock Din.128

420945832

$1.15

36

Socket Head Screw M8 X 30

205083044

$1.15

37

RUBBER FIN - Call your local BRP dealership

420860100

Unavailable

38

Drive Pin 5 X 10

420929650

$1.68

39

Ens.Joint Etanc*Kit-Gasket This part replaces 420992068.

420992069

$64.49

40

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

41

Sealant Loctite 648

219703000

$45.99

42

Dow Corning 111, 150 g

413707000

$59.99

43

NOISE DAMPER - Call your local BRP dealership

420860097

Unavailable

44

SILENT BLOCK - Call your local BRP dealership

420960130

Unavailable
