Description

Price

1

Panel Nut M6 X 1.0

250100198

$2.11

2

Rubber Washer 5 mm

250200024

$2.19

3

Washer M5

250200025

$0.74

5

Pop Rivet 3/16"

293150014

$1.09

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Pop Rivet 3/16”

293150108

$1.19

9

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

10

Cap

515176498

$12.99

11

Rubber Cap Protector

219800280

$19.49

12

Washer

517124300

$0.19

13

Grommet

517303756

$4.09

13

Grommet

517303756

$4.09

14

Windshield (430) | Package Sport

517305720

$159.49

14

Windshield (20'') | Package LT

517305721

$201.49

15

Windshield Support

517304712

$33.99

15

Medium Windshield Support

860200229

$31.99

15

LOW WINDSHIELD SUPPORT - Call your local BRP dealership

860200228

Unavailable

20

Indicator Support

517303972

$88.99

22

RH Console Air Deflector

517304024

$31.99

23

LH Console Air Deflector

517304025

$31.99

24

Deep Black, Cap Console

517304027

$15.49

25

Hood

517305014

$244.99

26

RH Panel

517305016

$214.99

27

LH Panel

517305711

$214.99

28

RH Insert

517304090

$28.99

29

LH Panel Insert

517304092

$28.99

31

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

32

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

35

Anchor Link

517304320

$14.99

37

Black, RH Console

517304500

$28.99

38

Console Nut

517304518

$15.29

40

RH Hood Grille

517304567

$14.99

41

Air Inlet

517304569

$14.99

42

LH Hood Grille

517304694

$14.99

45

Button

517304744

$2.19

48

Foam

517304870

$28.99

49

Foam

517304871

$16.49

52

Foam

517304874

$28.99

53

Foam

517304875

$16.49

56

Plate

517305338

$16.49

57

Plate

517305339

$16.49

59

Push Nut

732610072

$2.19

60

Console

517305709

$219.99

61

Torx-Truss Pt K40 X 16

250000759

$2.11

63

Torx Screw K50 X 16

250000720

$1.69

65

Rear Panel Latch

517304999

$19.99

66

Center Panel Latch

517304093

$17.99

67

Front Latch Panel

517305186

$24.49

68

Torx Truss Screw M6 X 20

250000705

$2.11

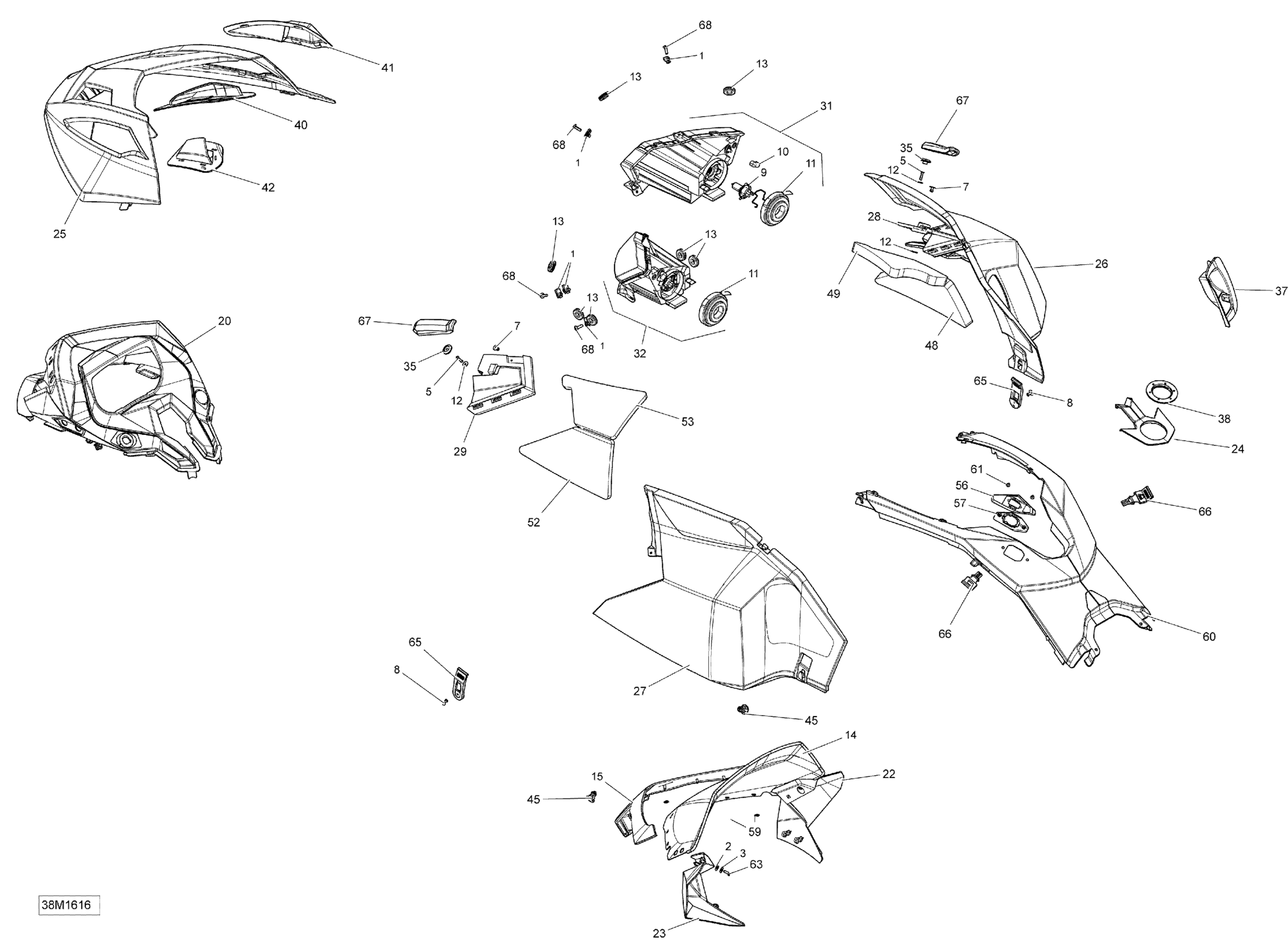

Ski-Doo TUNDRA - LT-Sport_4-STROKE, 2016 09- Hood Diagram

Panel Nut M6 X 1.0

Rubber Washer 5 mm

Washer M5

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16”

Halogen Bulb, 60/55 W, 12 V ( H4 )

Cap

Rubber Cap Protector

Washer

Grommet

Grommet

Windshield (430) | Package Sport

Windshield (20'') | Package LT

Windshield Support

Medium Windshield Support

LOW WINDSHIELD SUPPORT - Call your local BRP dealership

Indicator Support

RH Console Air Deflector

LH Console Air Deflector

Deep Black, Cap Console

Hood

RH Panel

LH Panel

RH Insert

LH Panel Insert

RH Headlamp Ass'y | Includes 2400 to 2400c

LH Headlamp Ass'y | Includes 2600 to 2600c

Anchor Link

Black, RH Console

Console Nut

RH Hood Grille

Air Inlet

LH Hood Grille

Button

Foam

Foam

Foam

Foam

Plate

Plate

Push Nut

Console

Torx-Truss Pt K40 X 16

Torx Screw K50 X 16

Rear Panel Latch

Center Panel Latch

Front Latch Panel

Torx Truss Screw M6 X 20
