Description

Price

1

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

2

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

3

Hex. Screw M8 X 90

207089044

$3.48

4

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

5

Hex. Flange Screw M6 X 25

207562544

$1.69

6

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

7

Hex. Nut M10 X 1.5

232006414

$1.37

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Hex. Flange Elastic Nut M8

233281414

$1.47

10

Socket Head Screw M8 X 25, Scotch Grip

250000340

$8.11

11

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.11

12

Bonded Washer

250200100

$2.11

13

Clinch Stud M6 X 30

250300031

$2.09

14

Rolled Pin M3 X 10

250400010

$1.90

15

Spring Pin M5 X 16

250400045

$4.55

16

Dowel Pin

250400048

$2.11

17

Hex. Countersunk Drain Plug

250500013

$7.89

18

Oil Seal

293200168

$14.49

19

O-Ring

293300122

$2.11

20

Tight Seal

293300130

$7.51

21

O-Ring

293300134

$2.32

22

Ball Bearing

293350115

$12.11

23

Ball Bearing

293350059

$30.99

24

Needle Bearing

293350063

$23.99

25

Needle Bearing

293350064

$23.49

26

Ball Bearing

293350074

$38.49

27

Circlip

293370054

$8.11

28

Circlip

293370055

$8.11

31

Straight Fitting

293710035

$8.89

32

Tie-Rap 180 mm

414115200

$0.11

36

O-Ring

414484400

$7.51

37

Spring Clamp

414554800

$0.88

38

Oil Seal

293200158

$14.22

39

Spacer

504077300

$6.95

40

Ring

504078700

$20.99

41

Washer

504082900

$2.64

42

Reverse Shaft

504083100

$46.99

43

Circlip

504152282

$3.17

44

Oil Seal

293200159

$16.25

45

Circlip

504152572

$6.95

46

Circlip

504152576

$9.99

47

Kit Sprocket This part replaces 504152971.

861805540

$159.99

48

Circlip

504152582

$9.99

49

Adjustment Screw

504152602

$12.49

50

Magnetic Cap

504152619

$23.49

52

Drive Chain, 106 Links

504152630

$179.99

53

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

54

Washer

504152689

$7.65

55

Double Ball Joint

504152710

$50.99

56

Sprocket, 29 Teeth

504152724

$179.99

57

Chaine Tensionner

504153431

$15.99

58

Double Ball Joint

504152766

$17.99

59

Lever

504153427

$29.99

61

Tensioner Axle

504152841

$16.34

62

Washer

504152862

$10.33

63

Not Available As Spare Part - Friction Washer

Unavailable

64

Rotation Sensor

504152896

$37.99

65

Protector Tube

504153074

$14.49

66

Cap Ass'y | Includes 1740 to 1740d

504152929

Unavailable

67

Retaining Ring

504153886

$21.99

68

Ball Joint

504152951

$46.49

69

Fork Ass'y

504153432

$37.99

70

Welded Axle Fork

504152956

$29.99

71

Slinding Gear, 27 Teeth

504152960

$103.99

72

Sprocket, 21 Teeth

504152927

$129.99

73

Coupling

504152979

$73.99

74

Slider Chain

504152739

$65.99

75

Protector Tube

504153074

$14.49

76

Grip

504153082

$33.99

77

Not Available As Spare Part - Friction Washer

Unavailable

77

Not Available As Spare Part - Friction Washer

Unavailable

79

Chain Slider

504153122

$16.99

80

Chaincase Cover Ass'y | Includes 1700 to 1700b

504153144

$359.99

81

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

504154391

$1.00

81

Track Ass'y, 16X137X1.2C | LT

504152907

$959.99

82

Grip

504153174

$27.49

83

Spring Release

504153179

$11.49

85

Chaincase

504153184

$349.99

86

Bearing Housing

504153187

$29.49

87

Drive Axle Ass'y

504153269

$433.99

88

Drive Axle Ass'y

504154054

$529.99

88

AXLE_DRIVE ASSY - Call your local BRP dealership | Includes 3000 to 3000e

504153265

Unavailable

89

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

90

Polyurethane Hose 10000Mm Long

219704410

$56.99

92

Alignement Rod

570048600

$15.99

93

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$109.99

94

Cap

504152930

$28.99

95

Countershaft

504153000

$593.49

96

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

97

Track Guide | Track Width 16''

415129528

$3.29

98

Cleat

504152651

$9.69

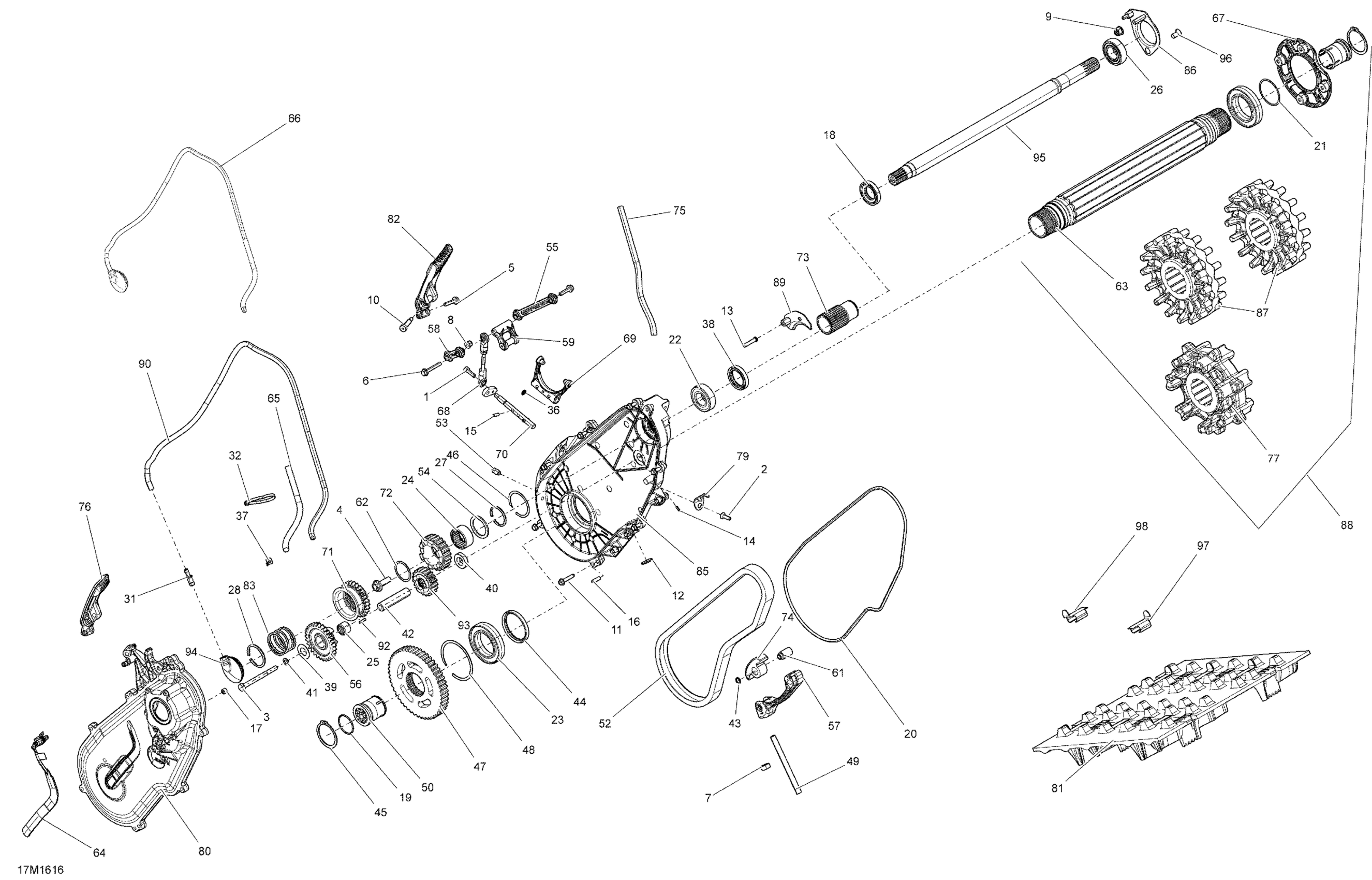

Ski-Doo TUNDRA - LT-Sport_4-STROKE, 2016 05- Drive System Diagram
