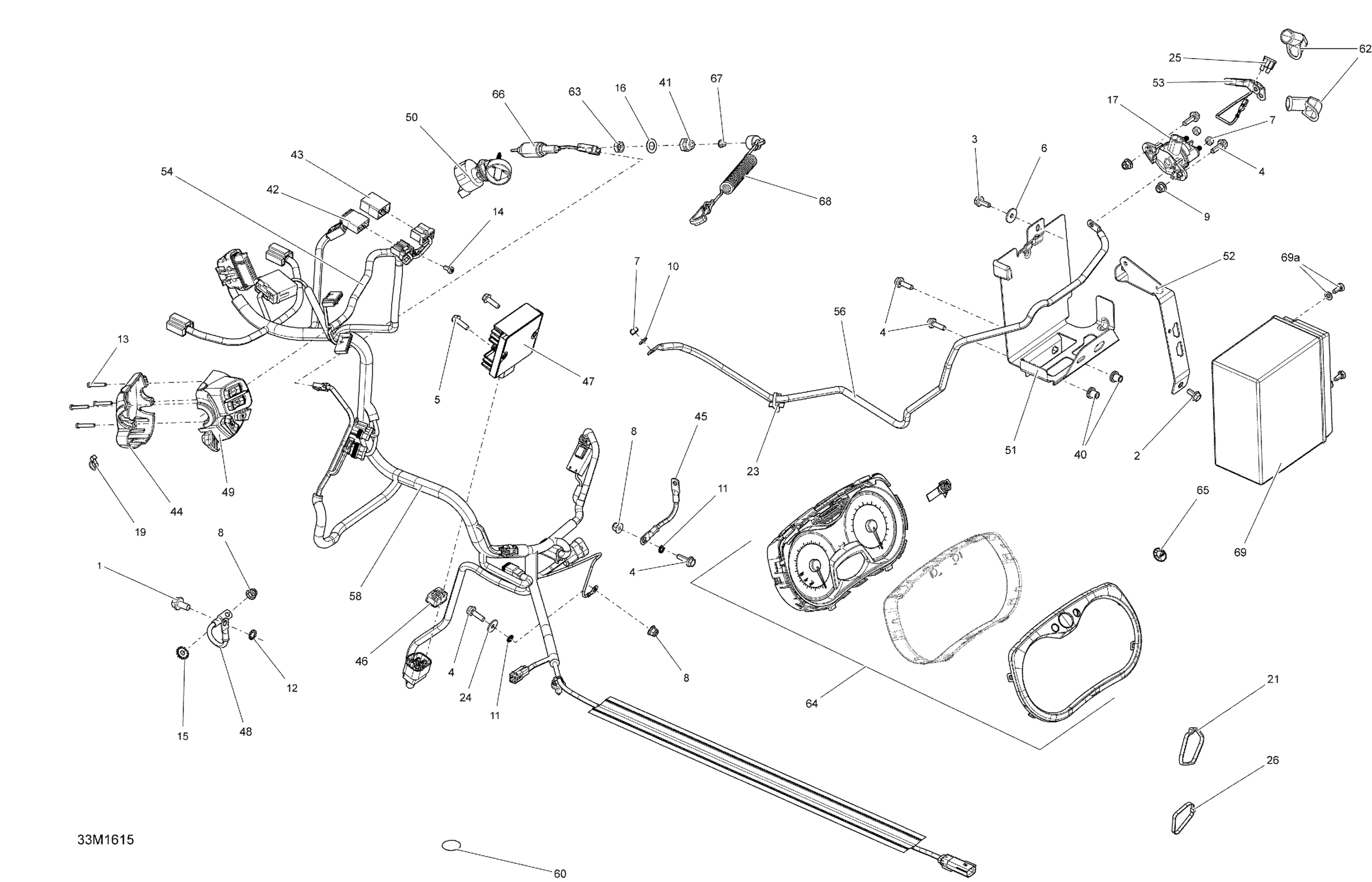

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 Electrical System Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

2

Hex. Flange Screw M6 X 12

207661244

$2.11

3

Hex. Flange Screw M6 X 16

207661644

$0.74

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Screw M6 X 20

210262040

$2.11

6

Flat Washer

224061201

$1.37

7

Elastic Stop Nut M6

232561434

$1.99

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Elastic Flange Nut M6 X 1.0

233261416

$2.11

10

Flat Washer 6 mm

234061410

$1.36

11

External Serrated Lock Washer 6 mm

234461608

$1.15

12

Serrated Lock Washer 8 mm

234481608

$1.15

13

Torx Screw #8-18

250000263

$1.04

14

Pan Screw Forming, 7500C

250000690

$2.11

15

Lock Washer Serrated M6

250200041

$1.15

16

Flat Washer

250200084

$3.38

17

Starter Relay

278003012

$42.49

18

Tie Wrap 94 mm | 4X4

293750001

$1.03

19

Tie Wrap 142 mm

293750002

$1.25

21

Tie Wrap 368 mm

293750008

$1.04

23

Tie-Rap 173 mm

293750009

$1.04

24

Flat Washer

250200082

$0.42

25

Fuse, 30 Amperes

410917200

$3.28

26

Tie-Rap 180 mm

414115200

$0.11

40

Insert

293450275

$12.99

42

Male Terminal Housing, 6 Circuits

515175662

$8.79

43

Male Terminal Housing, 8 Circuits

515175817

$8.79

44

Switch Housing Plate

515175926

$20.99

45

Ground Wire

515176358

$27.99

46

Lock

515176681

$20.99

47

Voltage Regulator

515176699

$153.49

48

Ground Wire

515176745

$28.99

49

LH Housing

515177021

$229.99

50

Ignition Swirch

515177063

$50.99

51

Battery Support

515177264

$31.99

52

Battery Strip

515177266

$19.99

53

Fuse Battery Wire

515177576

$16.63

54

Steering Wiring Harness

515177609

$114.99

56

Battery/Starter Wire

515177730

$30.99

58

Main Harness

515177979

$329.99

60

Adhesive Patch

518325560

$4.69

62

Protector Cap

710000495

$10.99

63

RH Threaded Hex. Jam Nut M10

732610010

$0.74

64

Speedometer Button | XTP

415129355

$15.80

64

Lens | XTP

415129349

$24.49

64

Indicator | Includes 10 to 10c

515177279

$569.99

64

Gauge Ring

415129348

$13.99

65

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

66

Brake Switch

515175653

$19.49

67

Plunger Cap

570151100

$9.85

68

Cap Ass'y

515178283

$38.99

69

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

69a

Battery Bolt Kit

250000282

$7.29
