Description

Price

1

Panel Nut M6 X 1.0

250100198

$2.11

2

Rubber Washer 5 mm

250200024

$2.19

3

Washer M5

250200025

$0.74

4

Black, Cap

275500241

$3.49

5

Pop Rivet 3/16"

293150014

$1.09

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Pop Rivet 3/16”

293150108

$1.19

9

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

10

Cap

515176498

$12.99

11

Rubber Cap Protector

219800280

$19.49

12

Washer

517124300

$0.19

13

Grommet

517303756

$4.09

13

Grommet

517303756

$4.09

14

Windshield (430) | Package Sport

517305720

$159.49

14

Windshield (20'') | Package LT

517305721

$201.49

15

Windshield Support

517304712

$33.99

15

Medium Windshield Support

860200229

$31.99

15

LOW WINDSHIELD SUPPORT - Call your local BRP dealership

860200228

Unavailable

16

LH Hood Grille

517303804

$31.99

17

RH Hood Grille

517303805

$31.99

21

Indicator Support

517303999

$104.99

22

RH Console Air Deflector

517304024

$31.99

23

LH Console Air Deflector

517304025

$31.99

24

Deep Black, Cap Console

517304027

$15.49

25

Hood

517305014

$244.99

26

RH Panel

517305016

$214.99

27

LH Panel

517305017

$214.99

28

RH Insert

517304090

$28.99

29

LH Panel Insert

517304092

$28.99

30

RH Lateral Hood Grille

517304187

$35.99

31

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

32

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

33

Foam Hood

517304877

$28.99

35

Anchor Link

517304320

$14.99

36

Black, RH Console | Includes 400 to 400b

517304322

$35.99

38

Console Nut

517304518

$15.29

39

Foam

517304880

$28.99

45

Button

517304744

$2.19

48

Foam

517304870

$28.99

49

Foam

517304871

$16.49

52

Foam

517304874

$28.99

53

Foam

517304875

$16.49

59

Push Nut

732610072

$2.19

60

Console

517305015

$219.99

62

Screw M4 X 16

250000725

$3.49

63

Torx Screw K50 X 16

250000720

$1.69

65

Rear Panel Latch

517304999

$19.99

66

Center Panel Latch

517304093

$17.99

67

Front Latch Panel

517305186

$24.49

68

Torx Truss Screw M6 X 20

250000705

$2.11

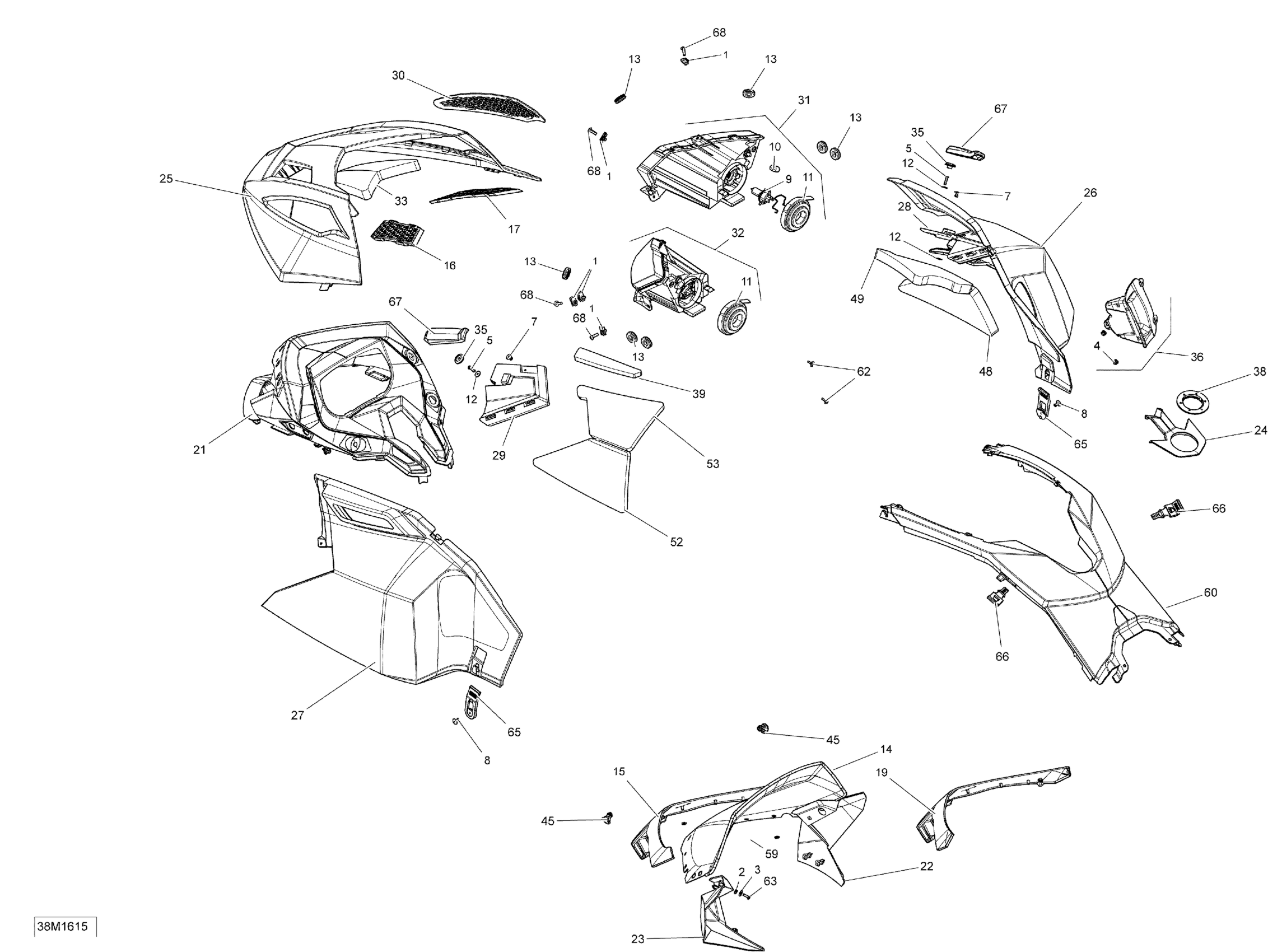

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 09- Hood Diagram

Panel Nut M6 X 1.0

Rubber Washer 5 mm

Washer M5

Black, Cap

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16”

Halogen Bulb, 60/55 W, 12 V ( H4 )

Cap

Rubber Cap Protector

Washer

Grommet

Grommet

Windshield (430) | Package Sport

Windshield (20'') | Package LT

Windshield Support

Medium Windshield Support

LOW WINDSHIELD SUPPORT - Call your local BRP dealership

LH Hood Grille

RH Hood Grille

Indicator Support

RH Console Air Deflector

LH Console Air Deflector

Deep Black, Cap Console

Hood

RH Panel

LH Panel

RH Insert

LH Panel Insert

RH Lateral Hood Grille

RH Headlamp Ass'y | Includes 2400 to 2400c

LH Headlamp Ass'y | Includes 2600 to 2600c

Foam Hood

Anchor Link

Black, RH Console | Includes 400 to 400b

Console Nut

Foam

Button

Foam

Foam

Foam

Foam

Push Nut

Console

Screw M4 X 16

Torx Screw K50 X 16

Rear Panel Latch

Center Panel Latch

Front Latch Panel

Torx Truss Screw M6 X 20
