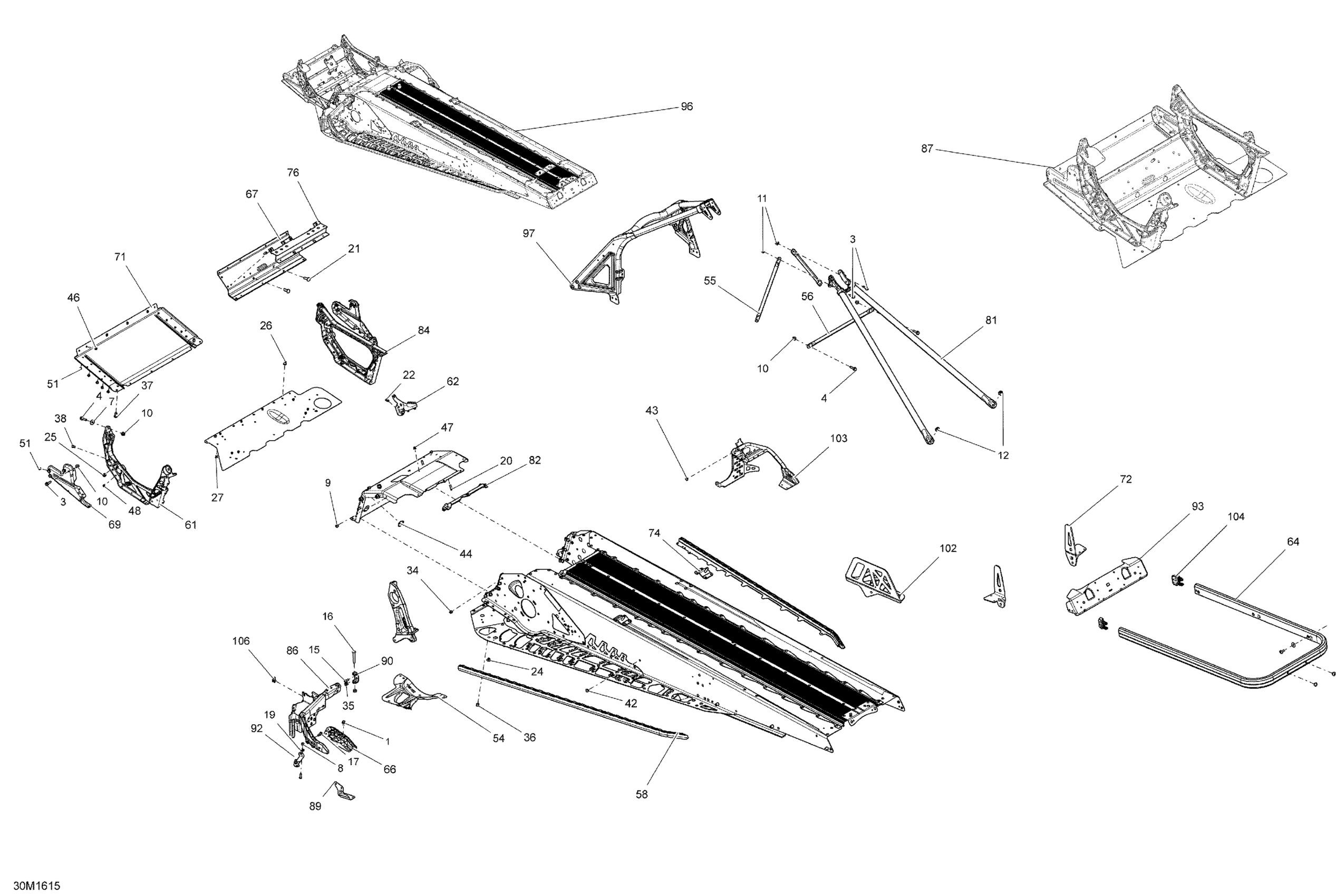

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 09- Frame Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M6 X 25

207662544

$0.64

7

Flat Washer

224061201

$1.37

8

Elastic Stop Nut M6

232561414

$0.55

9

Hex. Flange Nut M6

233061414

$1.68

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

12

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Tork Screw M6 X 16

250000534

$2.11

16

Torx Screw M8 X 55

250000535

$3.17

17

Tork Screw M6 X 18

250000536

$2.11

19

Flat Washer

250200039

$0.74

20

Clinch Stud M6 X 20

250300027

$2.09

21

Clinch Stud

250300038

$4.29

22

Hemlock Rivet, 6.5 mm

293150096

$3.27

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

25

Hemlock Rivet, 6.5 mm

293150119

$4.29

26

Hemlock Rivet 6.5 mm

293150120

$7.41

27

Stavex Rivet

293150144

$0.82

34

Henrob Rivet

293150146

$2.09

35

Ornit Rivet 6,5 X 14.5

293150266

$2.40

36

Hemlock Rivet, 6.4 mm

293150174

$7.86

37

Monobolt Rivet 6.4

293150182

$3.09

38

Monobolt Rivet, 4.8 mm

293150191

$0.99

42

Full Moon Dart 8 mm

293730041

$2.21

42

Black, Dart 8 mm

293730047

$2.21

43

Full Moon Dart 5 mm

293730042

$2.21

44

Black, Plug

293730052

$9.19

45

Full Moon Dart 10 mm

293730059

$4.55

46

Pop Rivet 3/16"

390402200

$0.35

47

Pop Rivet 3/16"

390402400

$0.35

48

Avex Rivet

390909100

$0.30

51

Avex Rivet

390909200

$0.30

54

RH Reinforcement

518324874

$27.99

54

LH Reinforcement

518324875

$27.99

55

Upper Lateral Column Support

518325114

$22.49

56

Center Column Support

518325115

$22.49

58

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

58

RH ROLLER - Call your local BRP dealership

518325377

$69.99

58

LH Roller | Includes 10bd to 10be

518325160

$78.99

58

LH Roller

518325378

$76.99

61

LH Member

518325558

$249.99

62

RH Engine Support

518325559

$19.49

64

Clear Rear Bumper | Sport

518325577

$111.49

64

Clear Rear Bumper

518325579

$111.49

66

RH Deflector, Black Polypropylene

518325782

$13.99

66

LH Deflector, Black Polypropylene

518325783

$13.99

67

Front Member | Includes 10as to 10at

518325818

$58.99

69

RH Front Member

518325949

$19.99

69

LH Front Member

518325950

$19.49

71

Front Bottom Plate

518325951

$31.99

72

RH Slide Bracket

518325955

$45.99

72

LH Slide Bracket

518325956

$49.99

74

RH Rear Base

518325973

$21.99

74

LH Rear Base | Includes 10v to 10x

518325974

$21.99

76

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

81

Rear Member

518326559

$264.99

82

Seal

518326656

$9.19

84

RH Member

518326795

$284.99

86

LH Stirup

518326820

$37.99

87

Module E Tundra | Includes 10av to 10bm

518326926

$519.99

89

Support

518326960

$12.99

90

U-Attach

518326961

$10.99

92

Attach | Includes 10n to 10p

518326986

$12.99

93

Rear Cap

518327105

$22.49

94

Pulley Support

518328346

$129.99

96

FRAME TUNDRA LT - Call your local BRP dealership | LT

415130259

Unavailable

96

FRAME TUNDRA 137 - Call your local BRP dealership | Sport

415130258

$3.00

97

Front Member, S Module

518326557

$369.99

101

RH Bracket | Sport

518328787

$79.99

102

LH Bracket | Sport

518328788

$79.99

103

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

104

Full Moon RH Cap

520000711

$8.79

104

Full Moon LH Cap

520000712

$9.19

106

Panel Nut M5 X 0.8

250000958

$4.23
