Description

Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Torx Screw M6 X 25

250000618

$4.44

3

Panel Nut M6 X 1.0

250100198

$2.11

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

6

Torx Truss Screw M6 X 20

250000705

$2.11

7

Torx Truss Screw M6 X 12

250000767

$2.00

9

Pop Rivet 3/16"

390402300

$0.75

10

Insert

293450275

$12.99

11

Botton Pan Grille

502006887

$27.99

12

Black Front Bumper

502007121

$142.99

13

Black RH Bottom Pan

502006965

$77.99

14

Black LH Bottom Pan

502006966

$65.99

15

Black Bottom Pan Door

502006970

$19.99

16

RH Upper Bottom Pan Foam

502007204

$19.99

17

LH Upper Bottom Pan Foam

502007205

$19.99

18

RH Lower Bottom Pan Foam

502007206

$18.99

19

LH Lower Bottom Pan Foam

502007207

$18.99

20

LH Bottom Pan Foam

502007208

$18.99

24

Black, Bottom Pan

502007361

$144.99

26

Washer

517124300

$0.19

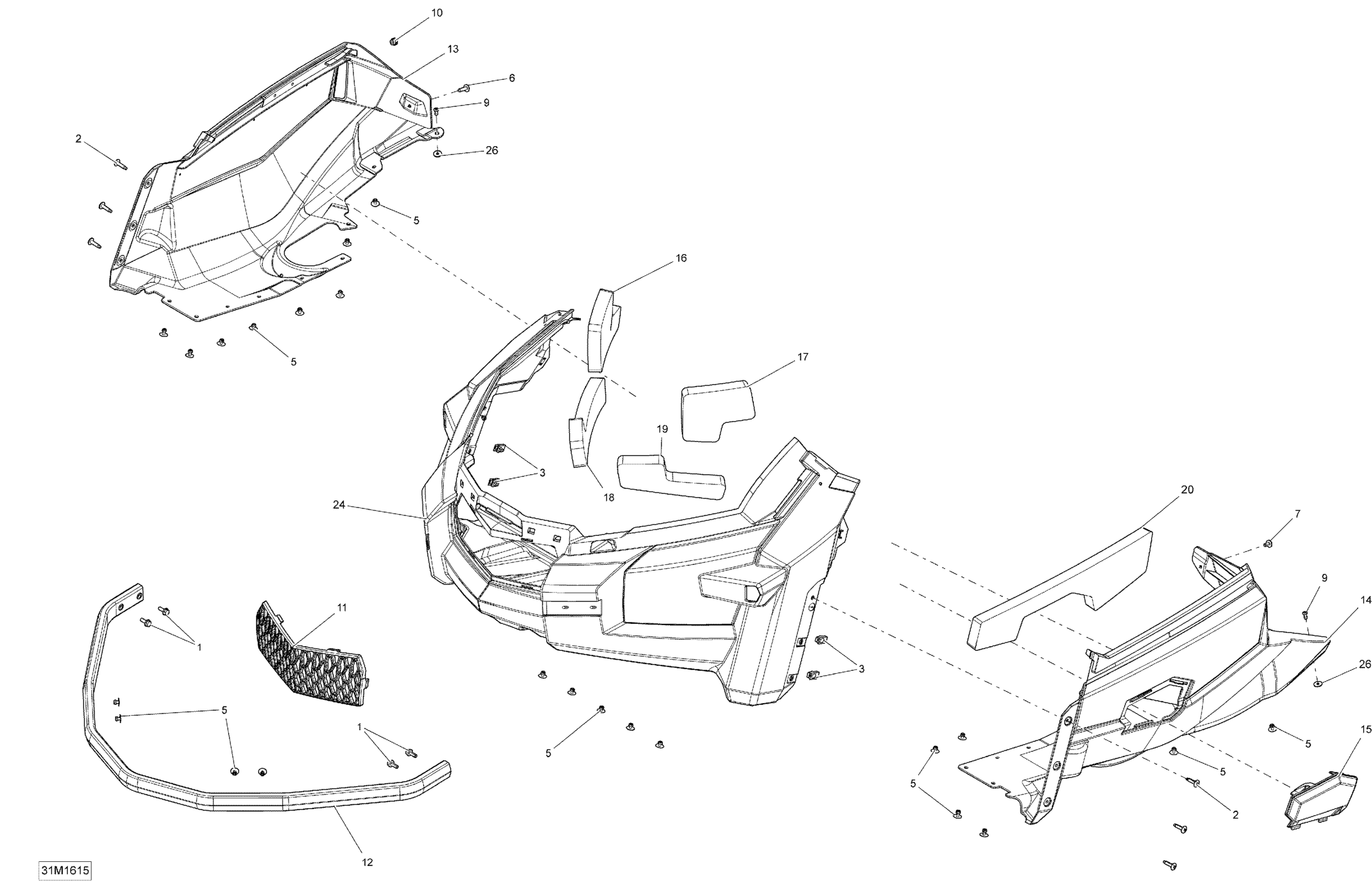

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 09- Bottom Pan Diagram

Hex. Flange Screw M6 X 16

Torx Screw M6 X 25

Panel Nut M6 X 1.0

Pop Rivet 3/16" | DS 650 X

Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 12

Pop Rivet 3/16"

Insert

Botton Pan Grille

Black Front Bumper

Black RH Bottom Pan

Black LH Bottom Pan

Black Bottom Pan Door

RH Upper Bottom Pan Foam

LH Upper Bottom Pan Foam

RH Lower Bottom Pan Foam

LH Lower Bottom Pan Foam

LH Bottom Pan Foam

Black, Bottom Pan

Washer
