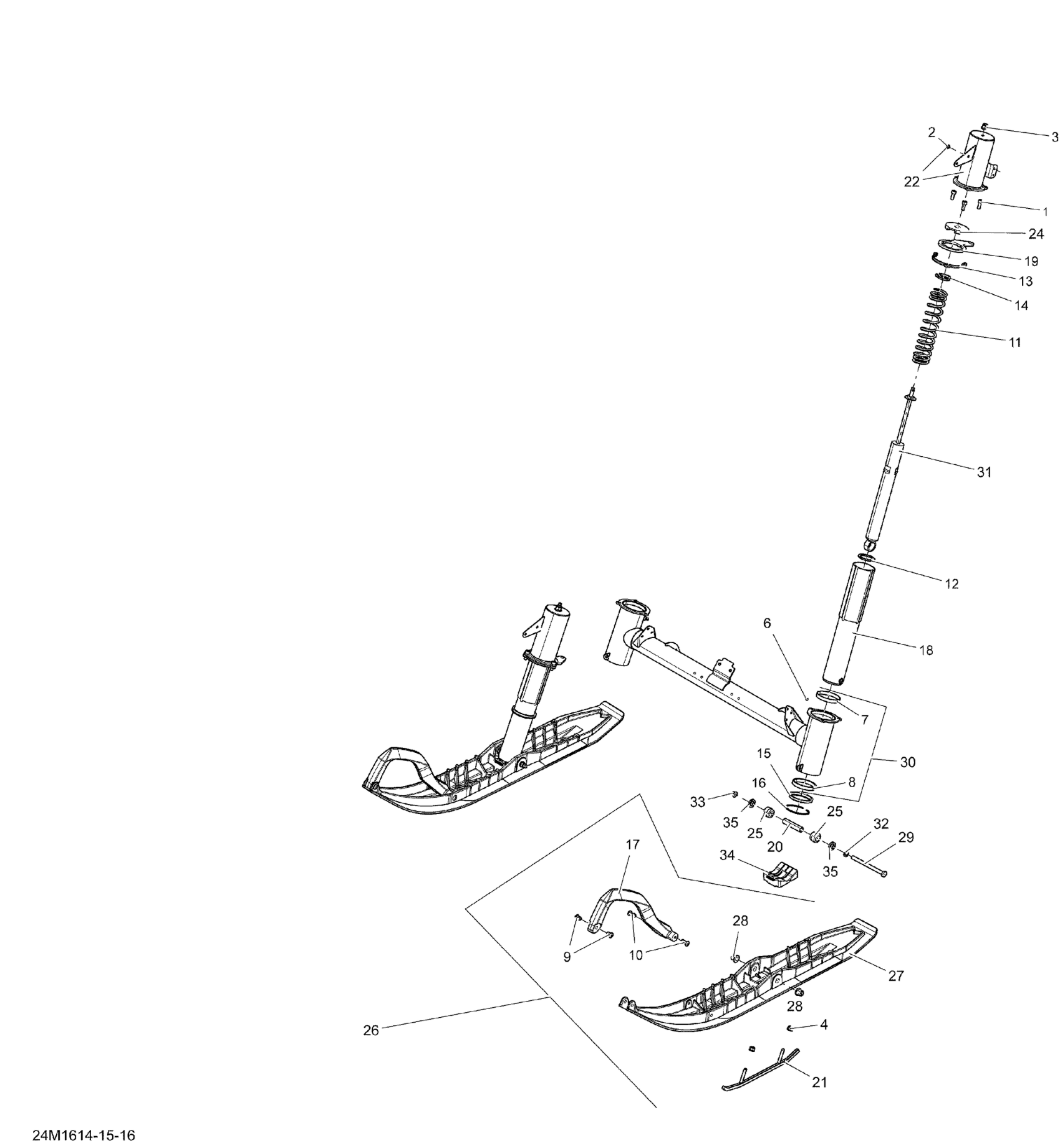

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 07- Front Suspension And Ski Diagram

#

Description
Price

1

Socket Head Screw M8 X 20

205082044

$1.15

2

Hexagonal Nut M6

232061404

$0.34

3

Hex. Flange Elastic Nut M10

233201414

$1.58

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

6

Grease Fitting

408200700

$3.49

7

Upper Cushion

414803100

$10.49

8

Lower Cushion

414803200

$14.68

9

Retainer 17mm long

505071812

$5.95

10

Retainer 23mm Long

505072133

$6.78

11

Black, Spring

505072557

$67.99

12

Washer

505072578

$14.22

13

Spacer

505073983

$25.99

14

Spring Stopper

505072619

$12.99

15

Seal Oil

505072696

$45.99

16

Circlip

505072698

$14.99

17

Black, Handle

505072976

$35.99

18

Ski Leg

505073200

$309.99

19

Steering Arm

505073823

$94.49

20

Ski Axle

505073209

$16.49

21

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

22

LH Suspension Cover | Includes 1320 to 1320a

505073449

$59.99

23

RH Suspension Cover | Includes 1330 to 1330a

505073450

$59.99

24

Stopper

570025800

$14.99

25

Cushion

572034500

$12.58

27

Black, Ski

505073227

$179.99

28

Ski Bushing

505071781

$16.18

29

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

30

S2 Modul, Ass'y | Includes 400 to 400c

505073497

$529.99

31

Shock

505073046

$164.49

32

Washer

503192496

$0.77

33

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

34

Ski Stopper

505072594

$18.49

35

Spacer

505072579

$9.69
