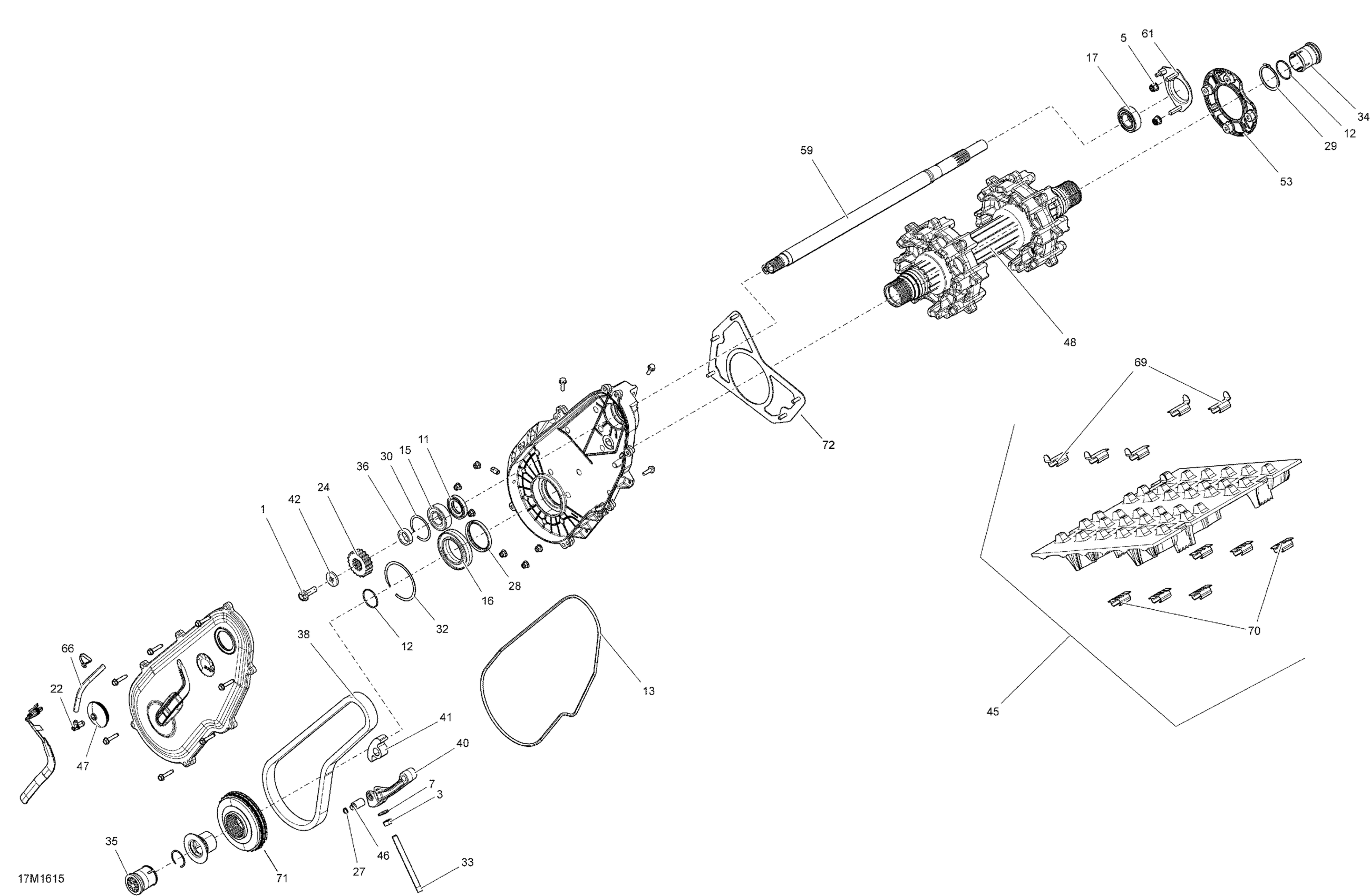

Ski-Doo TUNDRA - LT-Sport_2-STROKE, 2016 Drive System Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

3

Hex. Nut M10 X 1.5

232006414

$1.37

5

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Bonded Washer

250200100

$2.11

11

Oil Seal

293200168

$14.49

12

O-Ring

293300122

$2.11

13

Tight Seal

293300130

$7.51

15

Ball Bearing

293350115

$12.11

16

Ball Bearing

293350059

$30.99

17

Ball Bearing

293350074

$38.49

22

Male Connector

414580700

$4.12

24

Sprocket, 19 Teeth

504152031

$109.99

27

Circlip

504152282

$3.17

28

Oil Seal

293200159

$16.25

29

Circlip

504152572

$6.95

30

Circlip

504152576

$9.99

32

Circlip

504152582

$9.99

33

Adjustment Screw

504152602

$12.49

34

Magnetic Cap

504152619

$23.49

36

Shim

504152628

$10.99

38

Drive Chain, 102 Links

504152579

$153.49

40

Tensioner chain

504153429

$15.99

41

Slider Chain

504152739

$65.99

42

Spring Washer M10

504152784

$7.65

45

Track Ass'y, 16X137X1.2C | LT

504152907

$959.99

46

Tensioner Axle

504152841

$16.34

47

Cap

504152860

$20.49

48

Drive Axle Ass'y

504154054

$529.99

53

Retaining Ring

504153886

$21.99

59

Countershaft

504153000

$593.49

61

Bearing Housing

504153185

$29.49

66

Polyurethane Hose 10000Mm Long

219704410

$56.99

69

Track Guide | Track Width 16''

415129528

$3.29

70

Cleat

504152651

$9.69

71

Kit Sprocket This part replaces 504152593.

861805538

$164.99

72

Plate | Not Shown

518325816

$79.99
