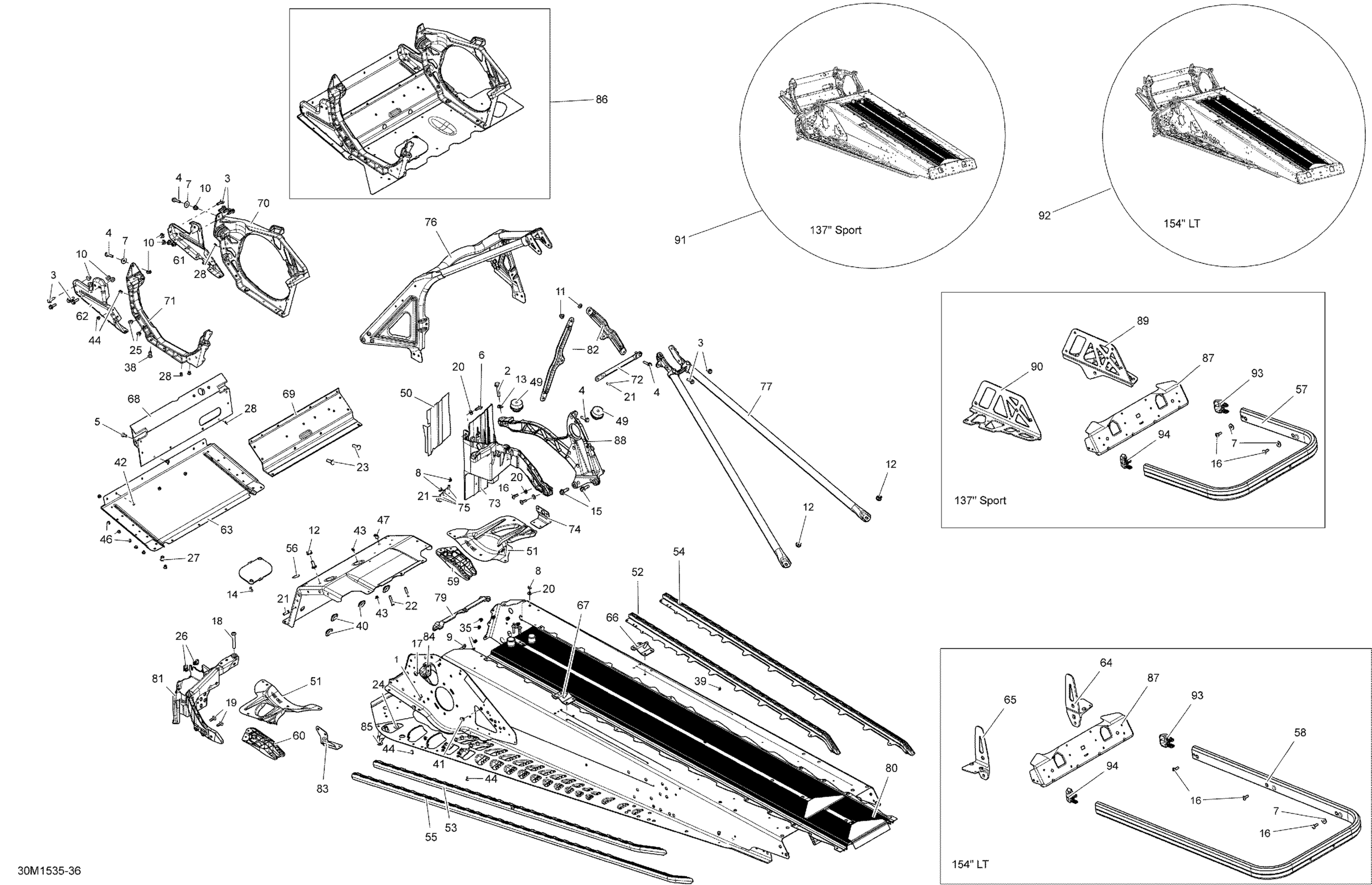

Ski-Doo Tundra LT 600ACE XU154, 2015 Frame _30M1536 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

2

Hex. Flange Screw, Scotch Grip

207584034

$2.00

3

Hex. Flange Screw M6 X 20

207662044

$1.91

4

Hex. Flange Screw M6 X 25

207662544

$0.61

5

Hex. Flange Screw M6 X 16

210261650

$1.40

6

Hex. Flange Screw M6 X 20

210262040

$2.00

7

Flat Washer

224061201

$1.27

8

Elastic Stop Nut M6

232561434

$1.78

9

Hex. Flange Nut M6

233061414

$1.54

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Elastic Flange Nut M6 X 1.0

233261416

$2.00

12

Hex. Flange Elastic Nut M8

233281414

$1.31

13

Conical Spring Washer M8

234281474

$1.43

14

Torx Truss Screw M6 X 12

250000767

$1.91

15

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.00

16

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

17

Tork Screw M6 X 16

250000534

$2.00

18

Torx Screw M8 X 55

250000535

$3.01

19

Tork Screw M6 X 18

250000536

$2.00

20

Flat Washer

250200039

$0.70

21

Clinch Stud M6 X 20

250300027

$1.87

22

Clinch Stud M6 X 30

250300031

$1.87

23

Clinch Stud

250300038

$3.88

24

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

25

Hemlock Rivet, 6.5 mm

293150119

$3.88

26

Panel Nut M5 X 0.8

250000958

$4.00

27

Hemlock Rivet 6.5 mm

293150120

$7.01

28

Stavex Rivet

293150144

$0.75

35

Henrob Rivet

293150146

$1.87

36

Ornit Rivet 6,5 X 14.5

293150266

$1.88

37

Hemlock Rivet, 6.4 mm

293150174

$6.24

38

Monobolt Rivet 6.4

293150182

$2.82

39

Full Moon Dart 8 mm

293730041

$2.06

40

Black, Plug

293730052

$6.18

41

Full Moon Dart 10 mm

293730059

$4.28

42

Pop Rivet 3/16"

390402200

$0.30

43

Pop Rivet 3/16"

390402400

$0.28

44

Avex Rivet

390909100

$0.28

46

Avex Rivet

390909200

$0.28

47

Insert

293450275

$11.36

49

Vibration Damper

512061516

$55.94

50

Heat Shield

514054755

$6.30

51

RH Reinforcement

518324874

$24.60

51

LH Reinforcement

518324875

$24.60

52

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

53

LH Roller | Includes 10bd to 10be

518325160

$76.09

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable

56

Adhesive Patch

518325560

$4.21

57

Not Available As Spare Parts

XXX

Unavailable

58

Clear Rear Bumper

518325579

$106.69

59

RH Deflector, Black Polypropylene

518325782

$11.42

60

LH Deflector, Black Polypropylene

518325783

$11.42

61

RH Front Member

518325949

$17.88

62

LH Front Member

518325950

$17.13

63

Front Bottom Plate

518325951

$29.07

64

RH Slide Bracket

518325955

Unavailable

65

LH Slide Bracket

518325956

$44.75

66

RH Rear Base

518325973

$17.88

67

LH Rear Base | Includes 10v to 10x

518325974

$17.88

68

Engine Support

518326140

$112.66

69

Front Member

518326198

$58.18

70

RH Side Member

518326328

$252.21

71

LH Side Member

518326330

$252.21

72

Center Column Support

518326355

$20.12

73

Battery Support

518326472

$39.52

74

RH Support | LT

518326482

Unavailable

75

Retaining Plate | Includes 40 to 40a

518326550

Unavailable

76

Front Member, S Module

518326557

$326.84

77

Rear Member

518326559

$237.28

79

Seal

518326656

$8.18

80

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$679.07

81

LH Stirup

518326820

$35.04

82

Upper Column Support

518326848

$12.67

83

Support

518326960

$9.42

84

U-Attach

518326961

$8.19

85

Attach | Includes 10n to 10p

518326986

$9.42

86

E-Module | LT

518327006

$687.28

87

Rear Cap

518327105

$20.12

88

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

89

Not Available As Spare Parts

XXX

Unavailable

90

Not Available As Spare Parts

XXX

Unavailable

91

Not Available As Spare Parts

XXX

Unavailable

92

FRAME TUNDRA 154 ACE - Call your local BRP dealership | LT

415130263

Unavailable

93

Full Moon RH Cap

520000711

$8.34

94

Full Moon LH Cap

520000712

$8.34
