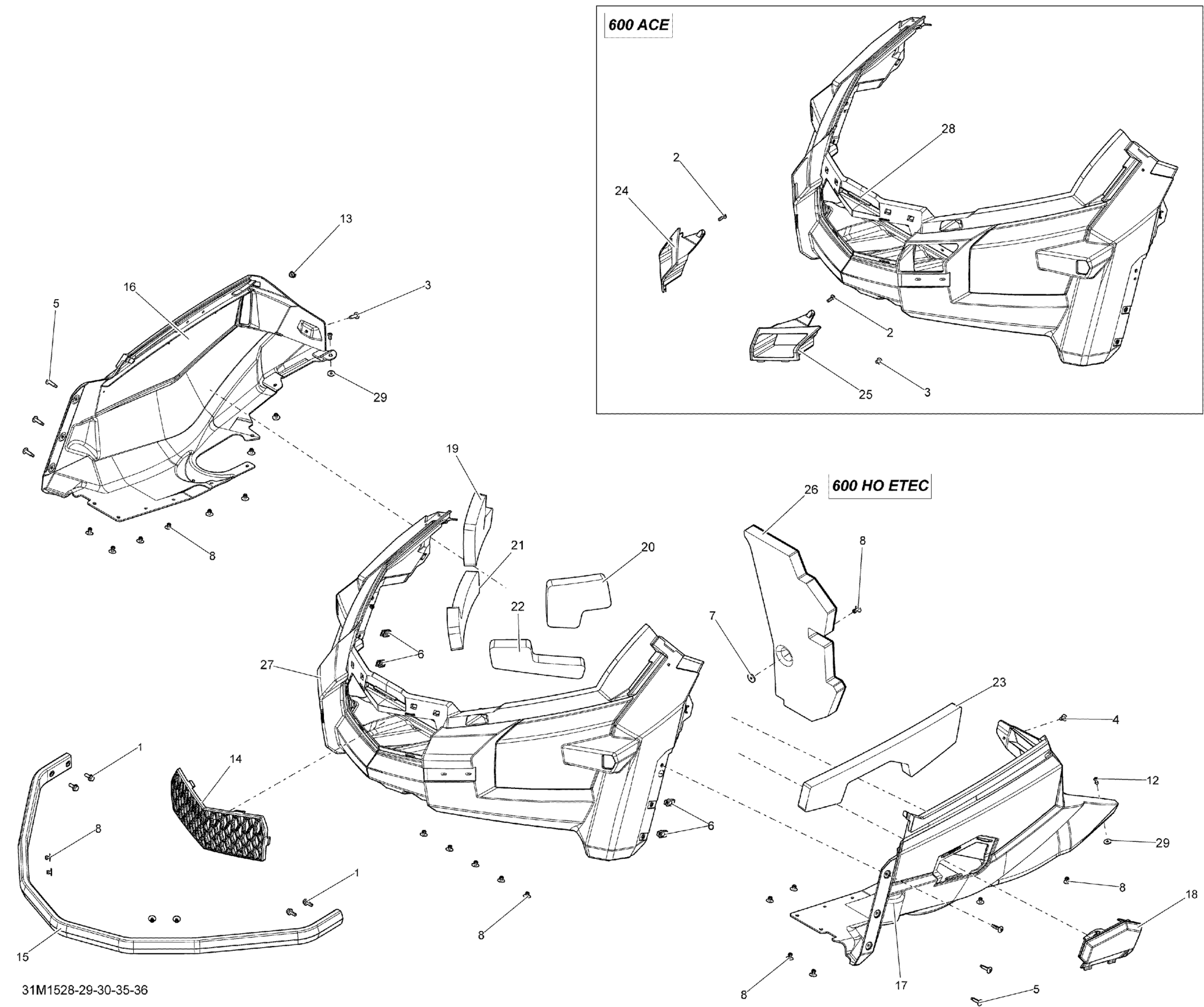

Ski-Doo Tundra LT 600ACE XU154, 2015 Bottom Pan _31M1536 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.70

2

Torx Screw K50 X 16

250000720

$1.60

3

Torx-truss M/s M6 X 10

250000995

$4.15

4

Torx Truss Screw M6 X 12

250000767

$1.91

5

Torx Screw M6 X 25

250000618

$4.15

6

Panel Nut M6 X 1.0

250100198

$1.99

7

Not Available As Spare Parts

XXX

Unavailable

8

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

12

Pop Rivet 3/16"

390402300

$0.73

13

Not Available As Spare Parts

XXX

Unavailable

14

Botton Pan Grille

502006887

$24.60

15

Black Front Bumper

502007121

$135.79

16

Black RH Bottom Pan

502006965

$77.99

17

Black LH Bottom Pan

502006966

$65.99

18

Black Bottom Pan Door

502006970

$17.88

19

RH Upper Bottom Pan Foam

502007204

$16.39

20

LH Upper Bottom Pan Foam

502007205

$16.39

21

RH Lower Bottom Pan Foam

502007206

$15.64

22

LH Lower Bottom Pan Foam

502007207

$15.64

23

LH Bottom Pan Foam

502007208

$15.64

24

RH Air Inlet

502007127

$9.90

25

LH Air Inlet

502007128

$9.90

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Bottom Pan

502007362

$172.36

29

Washer

517124300

$0.18
